emcTowerContent Class Reference
[Tower calibration, Interfaces, Tower clustering]

#include <emcTowerContent.h>

Inherited by emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.

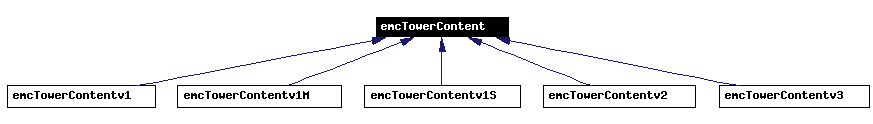

Inheritance diagram for emcTowerContent:

Detailed Description

(ABC) EMCAL tower raw and/or calibrated data.

You generally obtain such object from an emcTowerContainer. Then you can access tower characteristics, being raw ones (the 5 DC samples), ped-subtracted ones (ADC and TDC), or calibrated ones (Energy,ToF).

Note:: Actual implementation may not store all the information. Please use the hasXXX() methods to check this (e.g. hasRaw(), hasDC(), hasCalib()).

Definition at line 20 of file emcTowerContent.h.

Public Member Functions

virtual ~emcTowerContent ()

virtual emcTowerContent * clone () const

Make a copy of this tower.

virtual emcTowerContent * create () const

Make an empty copy of this tower (i.e. copy only the type).

virtual int ADC (void) const

ADC value (i.e.

virtual int AMUPre (void) const

AMU cell that gave the pre sample [0-63].

virtual int AMUPost (void) const

AMU cell that gave the post sample [0-63].

virtual int AMUTAC (void) const

AMU cell that gave the tac sample [0-63].

virtual int BeamClock (void) const

virtual int Channel (void) const

Tower channel number within the FEM [0-143].

virtual int DataError (void) const

A word indicating some error (e.g. sample too low or too high).

virtual float Energy (void) const

Tower energy in GeV.

virtual unsigned int ErrorNeighbours (void) const

A word indicating the status of the tower itself and of its neighbours (5x5).

virtual int FEM (void) const

FEM number of this tower [0-171 for data, >= 172 for monitoring.

virtual int HG (void) const

High gain value (pedestal subtracted).

virtual int HGPost (void) const

High gain post sample (raw).

virtual int HGPre (void) const

High gain pre sample (raw).

virtual int HGPP (void) const

HGPre()-HGPost().

virtual float Gain (void) const

Gain for this tower.

virtual void identify (std::ostream &os=std::cout) const

From PHObject.

virtual bool isSimulated (void) const

Whether this tower is a simulated one.

virtual bool isMerged (void) const

Whether this tower was merged (i.e. embedded).

virtual bool isReference (void) const

Whether this tower is a reference one.

virtual int isValid () const

From PHObject.

virtual bool isZero (void) const

Whether raw samples are compatible with an empty tower.

virtual int LG (void) const

Low gain (pedestal subtracted) value.

virtual int LGPost (void) const

Low gain post sample.

virtual int LGPre (void) const

Low gain pre sample.

virtual int LGPP (void) const

LGPre()-LGPost().

virtual void print (std::ostream &=std::cout, int=0) const

Output to stream.

virtual emcTowerContent * Reference (void) const

Pointer to reference (if available, see hasReference()).

virtual void SetADCTDC (int, int, int=0, int=0)

Set the "DC" values : ADC and TDC.

virtual void SetCalibrated (float, float)

Set the calibrated values : energy and tof.

virtual void SetDataError (int)

Set the data Error.

virtual void SetID (int, int)

Set the id of this tower, by means of the pair (fem,channel).

virtual void SetGain (float)

Set the gain.

virtual void SetNeighbours (unsigned int, unsigned int)

Set the deadmap and warnmap.

virtual void SetMerSimStatus (bool, bool)

Set the merged and sim status.

virtual void SetRaw (int, int, int, int, int, int=0, int=0, int=0, int=0)

Set the raw sample values.

virtual void SetSimFrac (float)

Set the simulated energy fraction.

virtual void SetToF (float)

Set the (corrected) tof.

virtual float SimFrac () const

Fraction of simulated energy (0=real tower, 1=simulated, in between for a merged, i.e.

virtual int TAC (void) const

TAC sample value.

virtual int TDC (void) const

TDC value.

virtual float ToF (void) const

Get the ToF value (ns).

virtual float UncorrectedToF () const

Uncorrected ToF value (ns).

virtual int TowerID (void) const

TowerID (computed from (fem,channel) pair).

int TowerId (void) const

Alias for TowerID.

int towerid (void) const

Another alias for TowerID.

virtual unsigned int WarnNeighbours (void) const

Warnmap (see also ErrorNeighbours()).

virtual void Zero (void)

Reset the raw samples.

void ShutUp (const int i=1)

Actual features.

Test if this tower actually has some feature.

virtual bool hasCalib (void) const

Whether this tower has Energy and ToF available.

virtual bool hasDC (void) const

Whether this tower has ADC and TDC values available.

virtual bool hasGain (void) const

Whether this tower has the gain (which was used to normalize the ADC value to take into account time evolution) available.

virtual bool hasMerSimStatus (void) const

Whether we can set the merged/simulated status.

virtual bool hasRaw (void) const

Whether this tower has raw samples availalble.

virtual bool hasReference (void) const

Tells whether this tower has a reference (from monitoring system information available.

Possible features.

Test if this tower *might* have some feature. (to test if the tower actually has it, use the hasXXX methods).

virtual bool canHaveCalib () const

Whether this tower can hold calibrated (energy,tof) values.

virtual bool canHaveDC () const

Whether this tower can hold DC (ADC,TDC) values.

virtual bool canHaveGain () const

Whether this tower can hold Gain value.

virtual bool canHaveMerSimStatus () const

Whether this tower can have the Merged/Simulated status.

virtual bool canHaveRaw () const

Whether this tower can hold raw (HGPre,HGPost,LGPre,LGPost,TAC) samples.

Protected Member Functions

emcTowerContent & operator= (const emcTowerContent &rhs)

This one is protected on purpose.

Private Member Functions

void warning (const char *) const

Constructor & Destructor Documentation

virtual emcTowerContent::~emcTowerContent ( ) [virtual]

Member Function Documentation

virtual int emcTowerContent::ADC ( void ) const [inline, virtual]

ADC value (i.e.
pre-post-pedestals for the selected gain, either low or high).
Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 35 of file emcTowerContent.h.
References warning().
Referenced by emcDCProcessorv3::calibrateTimePbGl(), emcDCProcessorv2::calibrateTimePbGl(), and emcDCProcessorv2::calibrateTimePbSc().

virtual int emcTowerContent::AMUPost ( void ) const [inline, virtual]

AMU cell that gave the post sample [0-63].

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 43 of file emcTowerContent.h.
References warning().

virtual int emcTowerContent::AMUPre ( void ) const [inline, virtual]

AMU cell that gave the pre sample [0-63].

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 39 of file emcTowerContent.h.
References warning().

virtual int emcTowerContent::AMUTAC ( void ) const [inline, virtual]

AMU cell that gave the tac sample [0-63].

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 47 of file emcTowerContent.h.
References warning().

virtual int emcTowerContent::BeamClock ( void ) const [inline, virtual]

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 50 of file emcTowerContent.h.
References warning().

virtual bool emcTowerContent::canHaveCalib ( ) const [inline, virtual]

Whether this tower can hold calibrated (energy,tof) values.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 107 of file emcTowerContent.h.

virtual bool emcTowerContent::canHaveDC ( ) const [inline, virtual]

Whether this tower can hold DC (ADC,TDC) values.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 110 of file emcTowerContent.h.

virtual bool emcTowerContent::canHaveGain ( ) const [inline, virtual]

Whether this tower can hold Gain value.

Reimplemented in emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 113 of file emcTowerContent.h.

virtual bool emcTowerContent::canHaveMerSimStatus ( ) const [inline, virtual]

Whether this tower can have the Merged/Simulated status.

Reimplemented in emcTowerContentv1M.
Definition at line 116 of file emcTowerContent.h.

virtual bool emcTowerContent::canHaveRaw ( ) const [inline, virtual]

Whether this tower can hold raw (HGPre,HGPost,LGPre,LGPost,TAC) samples.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 121 of file emcTowerContent.h.

virtual int emcTowerContent::Channel ( void ) const [inline, virtual]

Tower channel number within the FEM [0-143].

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 53 of file emcTowerContent.h.
References warning().
Referenced by emcDCProcessorv3::calibrateEnergyPbGl(), emcDCProcessorv2::calibrateEnergyPbGl(), emcDCProcessorv3::calibrateEnergyPbSc(), emcDCProcessorv2::calibrateEnergyPbSc(), emcDCProcessorv3::calibrateTimePbGl(), emcDCProcessorv2::calibrateTimePbGl(), emcDCProcessorv3::calibrateTimePbSc(), emcDCProcessorv2::calibrateTimePbSc(), emcRawDataProcessorv3::chooseLowGainPbGl(), emcRawDataProcessorv2::chooseLowGainPbGl(), emcRawDataProcessorv3::chooseLowGainPbSc(), and emcRawDataProcessorv2::chooseLowGainPbSc().

virtual emcTowerContent* emcTowerContent::clone ( void ) const [inline, virtual]

Make a copy of this tower.

Reimplemented in emcTowerContentv1M, emcTowerContentv1S, and emcTowerContentv3.
Definition at line 27 of file emcTowerContent.h.
References warning().

virtual emcTowerContent* emcTowerContent::create ( void ) const [inline, virtual]

Make an empty copy of this tower (i.e. copy only the type).

Reimplemented in emcTowerContentv1M, emcTowerContentv1S, and emcTowerContentv3.
Definition at line 30 of file emcTowerContent.h.
References warning().

virtual int emcTowerContent::DataError ( void ) const [inline, virtual]

A word indicating some error (e.g. sample too low or too high).

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 56 of file emcTowerContent.h.
References warning().
Referenced by emcRawDataProcessorv3::chooseLowGainPbGl(), emcRawDataProcessorv2::chooseLowGainPbGl(), emcRawDataProcessorv3::chooseLowGainPbSc(), and emcRawDataProcessorv2::chooseLowGainPbSc().

virtual float emcTowerContent::Energy ( void ) const [inline, virtual]

Tower energy in GeV.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 59 of file emcTowerContent.h.
References warning().

virtual unsigned int emcTowerContent::ErrorNeighbours ( void ) const [inline, virtual]

A word indicating the status of the tower itself and of its neighbours (5x5).
See also emcBadModules class for more info.
Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 65 of file emcTowerContent.h.
References warning().

virtual int emcTowerContent::FEM ( void ) const [inline, virtual]

FEM number of this tower [0-171 for data, >= 172 for monitoring.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 69 of file emcTowerContent.h.
References warning().
Referenced by emcDCProcessorv3::calibrateEnergyPbGl(), emcDCProcessorv2::calibrateEnergyPbGl(), emcDCProcessorv3::calibrateEnergyPbSc(), emcDCProcessorv2::calibrateEnergyPbSc(), emcDCProcessorv3::calibrateTimePbGl(), emcDCProcessorv2::calibrateTimePbGl(), emcDCProcessorv3::calibrateTimePbSc(), emcDCProcessorv2::calibrateTimePbSc(), emcRawDataProcessorv3::chooseLowGainPbGl(), emcRawDataProcessorv2::chooseLowGainPbGl(), emcRawDataProcessorv3::chooseLowGainPbSc(), and emcRawDataProcessorv2::chooseLowGainPbSc().

virtual float emcTowerContent::Gain ( void ) const [inline, virtual]

Gain for this tower.

Reimplemented in emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 137 of file emcTowerContent.h.
References warning().

virtual bool emcTowerContent::hasCalib ( void ) const [inline, virtual]

Whether this tower has Energy and ToF available.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 76 of file emcTowerContent.h.

virtual bool emcTowerContent::hasDC ( void ) const [inline, virtual]

Whether this tower has ADC and TDC values available.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 79 of file emcTowerContent.h.

virtual bool emcTowerContent::hasGain ( void ) const [inline, virtual]

Whether this tower has the gain (which was used to normalize the ADC value to take into account time evolution) available.

Reimplemented in emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 84 of file emcTowerContent.h.
Referenced by emcDCProcessorv3::calibrateEnergyPbGl(), emcDCProcessorv2::calibrateEnergyPbGl(), emcDCProcessorv3::calibrateEnergyPbSc(), and emcDCProcessorv2::calibrateEnergyPbSc().

virtual bool emcTowerContent::hasMerSimStatus ( void ) const [inline, virtual]

Whether we can set the merged/simulated status.

Reimplemented in emcTowerContentv1M.
Definition at line 88 of file emcTowerContent.h.

virtual bool emcTowerContent::hasRaw ( void ) const [inline, virtual]

Whether this tower has raw samples availalble.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 91 of file emcTowerContent.h.

bool emcTowerContent::hasReference ( void ) const [virtual]

Tells whether this tower has a reference (from monitoring system information available.

Definition at line 22 of file emcTowerContent.C.

virtual int emcTowerContent::HG ( void ) const [inline, virtual]

High gain value (pedestal subtracted).

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 125 of file emcTowerContent.h.
References warning().

virtual int emcTowerContent::HGPost ( void ) const [inline, virtual]

High gain post sample (raw).

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 128 of file emcTowerContent.h.
References warning().
Referenced by emcRawDataProcessorv3::chooseLowGainPbGl(), emcRawDataProcessorv2::chooseLowGainPbGl(), ClassImp(), and HGPP().

int emcTowerContent::HGPP ( void ) const [virtual]

HGPre()-HGPost().

Definition at line 29 of file emcTowerContent.C.
References HGPost(), and HGPre().
Referenced by emcRawDataProcessorv3::chooseLowGainPbGl(), and emcRawDataProcessorv2::chooseLowGainPbGl().

virtual int emcTowerContent::HGPre ( void ) const [inline, virtual]

High gain pre sample (raw).

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 131 of file emcTowerContent.h.
References warning().
Referenced by HGPP().

void emcTowerContent::identify ( std::ostream & os = std::cout ) const [virtual]

From PHObject.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 36 of file emcTowerContent.C.

virtual bool emcTowerContent::isMerged ( void ) const [inline, virtual]

Whether this tower was merged (i.e. embedded).

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 147 of file emcTowerContent.h.
References warning().

bool emcTowerContent::isReference ( void ) const [virtual]

Whether this tower is a reference one.

Definition at line 45 of file emcTowerContent.C.

virtual bool emcTowerContent::isSimulated ( void ) const [inline, virtual]

Whether this tower is a simulated one.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 143 of file emcTowerContent.h.
References warning().

int emcTowerContent::isValid ( ) const [virtual]

From PHObject.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 52 of file emcTowerContent.C.

virtual bool emcTowerContent::isZero ( void ) const [inline, virtual]

Whether raw samples are compatible with an empty tower.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 156 of file emcTowerContent.h.
References warning().

virtual int emcTowerContent::LG ( void ) const [inline, virtual]

Low gain (pedestal subtracted) value.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 159 of file emcTowerContent.h.
References warning().
Referenced by emcDCProcessorv3::calibrateTimePbSc().

virtual int emcTowerContent::LGPost ( void ) const [inline, virtual]

Low gain post sample.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 162 of file emcTowerContent.h.
References warning().
Referenced by LGPP().

int emcTowerContent::LGPP ( void ) const [virtual]

LGPre()-LGPost().

Definition at line 59 of file emcTowerContent.C.
References LGPost(), and LGPre().
Referenced by emcRawDataProcessorv3::chooseLowGainPbGl(), emcRawDataProcessorv2::chooseLowGainPbGl(), emcRawDataProcessorv3::chooseLowGainPbSc(), and emcRawDataProcessorv2::chooseLowGainPbSc().

virtual int emcTowerContent::LGPre ( void ) const [inline, virtual]

Low gain pre sample.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 165 of file emcTowerContent.h.
References warning().
Referenced by LGPP().

emcTowerContent & emcTowerContent::operator= ( const emcTowerContent & rhs ) [protected]

This one is protected on purpose.
See e.g. Scott Meyers' More Effective C++ Item 33.
Definition at line 15 of file emcTowerContent.C.

virtual void emcTowerContent::print ( std::ostream & = std::cout,

int = 0

) const [inline, virtual]

Output to stream.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 171 of file emcTowerContent.h.
References warning().
Referenced by operator<<().

emcTowerContent * emcTowerContent::Reference ( void ) const [virtual]

Pointer to reference (if available, see hasReference()).

Definition at line 66 of file emcTowerContent.C.

virtual void emcTowerContent::SetADCTDC ( int ,

int ,

int = 0,

int = 0

) [inline, virtual]

Set the "DC" values : ADC and TDC.
Only useable if hasDC returns true.
Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 180 of file emcTowerContent.h.
References warning().
Referenced by emcPatch::event().

virtual void emcTowerContent::SetCalibrated ( float ,

float

) [inline, virtual]

Set the calibrated values : energy and tof.
Only useable if hasCalib returns true.
Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 186 of file emcTowerContent.h.
References warning().
Referenced by emcPatch::event().

virtual void emcTowerContent::SetDataError ( int ) [inline, virtual]

Set the data Error.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 190 of file emcTowerContent.h.
References warning().
Referenced by emcPatch::event(), emcRawDataProcessorv3::toADCandTDC(), and emcRawDataProcessorv2::toADCandTDC().

virtual void emcTowerContent::SetGain ( float ) [inline, virtual]

Set the gain.

Reimplemented in emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 196 of file emcTowerContent.h.
References warning().
Referenced by emcDCProcessorv3::calibrateEnergyPbGl(), emcDCProcessorv2::calibrateEnergyPbGl(), emcDCProcessorv3::calibrateEnergyPbSc(), and emcDCProcessorv2::calibrateEnergyPbSc().

virtual void emcTowerContent::SetID ( int ,

int

) [inline, virtual]

Set the id of this tower, by means of the pair (fem,channel).

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 193 of file emcTowerContent.h.
References warning().
Referenced by emcPatch::event(), and emcPacketProcessorv1::process().

virtual void emcTowerContent::SetMerSimStatus ( bool ,

bool

) [inline, virtual]

Set the merged and sim status.
Only useable if isMerSimStatus returns true.
Reimplemented in emcTowerContentv1M.
Definition at line 206 of file emcTowerContent.h.
References warning().

virtual void emcTowerContent::SetNeighbours ( unsigned int ,

unsigned int

) [inline, virtual]

Set the deadmap and warnmap.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 199 of file emcTowerContent.h.
References warning().
Referenced by emcPatch::event().

virtual void emcTowerContent::SetRaw ( int ,

int ,

int ,

int ,

int ,

int = 0,

int = 0,

int = 0,

int = 0

) [inline, virtual]

Set the raw sample values.
Only useable if hasRaw returns true.
Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 212 of file emcTowerContent.h.
References warning().
Referenced by emcPatch::event().

virtual void emcTowerContent::SetSimFrac ( float ) [inline, virtual]

Set the simulated energy fraction.

Reimplemented in emcTowerContentv1M, emcTowerContentv1S, and emcTowerContentv3.
Definition at line 221 of file emcTowerContent.h.
References warning().

virtual void emcTowerContent::SetToF ( float ) [inline, virtual]

Set the (corrected) tof.

Reimplemented in emcTowerContentv1M, emcTowerContentv1S, and emcTowerContentv3.
Definition at line 224 of file emcTowerContent.h.
References warning().

void emcTowerContent::ShutUp ( const int i = 1 )

Definition at line 73 of file emcTowerContent.C.

virtual float emcTowerContent::SimFrac ( ) const [inline, virtual]

Fraction of simulated energy (0=real tower, 1=simulated, in between for a merged, i.e.
embedded, tower.
Reimplemented in emcTowerContentv1M, emcTowerContentv1S, and emcTowerContentv3.
Definition at line 228 of file emcTowerContent.h.

virtual int emcTowerContent::TAC ( void ) const [inline, virtual]

TAC sample value.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv2, and emcTowerContentv3.
Definition at line 231 of file emcTowerContent.h.
References warning().

virtual int emcTowerContent::TDC ( void ) const [inline, virtual]

TDC value.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 234 of file emcTowerContent.h.
References warning().
Referenced by emcDCProcessorv3::calibrateTimePbGl(), emcDCProcessorv2::calibrateTimePbGl(), emcDCProcessorv3::calibrateTimePbSc(), and emcDCProcessorv2::calibrateTimePbSc().

virtual float emcTowerContent::ToF ( void ) const [inline, virtual]

Get the ToF value (ns).

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 237 of file emcTowerContent.h.
References warning().

int emcTowerContent::towerid ( void ) const [inline]

Another alias for TowerID.

Definition at line 249 of file emcTowerContent.h.
References TowerID().
Referenced by mEmcReCalibratorModulev1::event().

int emcTowerContent::TowerId ( void ) const [inline]

Alias for TowerID.

Definition at line 246 of file emcTowerContent.h.
References TowerID().

virtual int emcTowerContent::TowerID ( void ) const [inline, virtual]

TowerID (computed from (fem,channel) pair).

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 243 of file emcTowerContent.h.
References warning().
Referenced by mEmcTOFCorr6Module::event(), mEmcTOFCorr5Module::event(), emcRawDataProcessorv3::toADCandTDC(), emcRawDataProcessorv2::toADCandTDC(), towerid(), and TowerId().

virtual float emcTowerContent::UncorrectedToF ( void ) const [inline, virtual]

Uncorrected ToF value (ns).

Reimplemented in emcTowerContentv1M, emcTowerContentv1S, and emcTowerContentv3.
Definition at line 240 of file emcTowerContent.h.
References warning().

void emcTowerContent::warning ( const char * ) const [private]

Definition at line 80 of file emcTowerContent.C.
Referenced by ADC(), AMUPost(), AMUPre(), AMUTAC(), BeamClock(), Channel(), clone(), create(), DataError(), Energy(), ErrorNeighbours(), FEM(), Gain(), HG(), HGPost(), HGPre(), isMerged(), isSimulated(), isZero(), LG(), LGPost(), LGPre(), print(), SetADCTDC(), SetCalibrated(), SetDataError(), SetGain(), SetID(), SetMerSimStatus(), SetNeighbours(), SetRaw(), SetSimFrac(), SetToF(), TAC(), TDC(), ToF(), TowerID(), UncorrectedToF(), WarnNeighbours(), and Zero().

virtual unsigned int emcTowerContent::WarnNeighbours ( void ) const [inline, virtual]

Warnmap (see also ErrorNeighbours()).

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 252 of file emcTowerContent.h.
References warning().

virtual void emcTowerContent::Zero ( void ) [inline, virtual]

Reset the raw samples.

Reimplemented in emcTowerContentv1, emcTowerContentv1M, emcTowerContentv1S, emcTowerContentv2, and emcTowerContentv3.
Definition at line 256 of file emcTowerContent.h.
References warning().
Referenced by emcRawDataProcessorv3::toADCandTDC(), and emcRawDataProcessorv2::toADCandTDC().

The documentation for this class was generated from the following files:


Public Member Functions
virtual	~emcTowerContent ()
virtual emcTowerContent *	clone () const
	Make a copy of this tower.
virtual emcTowerContent *	create () const
	Make an empty copy of this tower (i.e. copy only the type).
virtual int	ADC (void) const
	ADC value (i.e.
virtual int	AMUPre (void) const
	AMU cell that gave the pre sample [0-63].
virtual int	AMUPost (void) const
	AMU cell that gave the post sample [0-63].
virtual int	AMUTAC (void) const
	AMU cell that gave the tac sample [0-63].
virtual int	BeamClock (void) const
virtual int	Channel (void) const
	Tower channel number within the FEM [0-143].
virtual int	DataError (void) const
	A word indicating some error (e.g. sample too low or too high).
virtual float	Energy (void) const
	Tower energy in GeV.
virtual unsigned int	ErrorNeighbours (void) const
	A word indicating the status of the tower itself and of its neighbours (5x5).
virtual int	FEM (void) const
	FEM number of this tower [0-171 for data, >= 172 for monitoring.
virtual int	HG (void) const
	High gain value (pedestal subtracted).
virtual int	HGPost (void) const
	High gain post sample (raw).
virtual int	HGPre (void) const
	High gain pre sample (raw).
virtual int	HGPP (void) const
	HGPre()-HGPost().
virtual float	Gain (void) const
	Gain for this tower.
virtual void	identify (std::ostream &os=std::cout) const
	From PHObject.
virtual bool	isSimulated (void) const
	Whether this tower is a simulated one.
virtual bool	isMerged (void) const
	Whether this tower was merged (i.e. embedded).
virtual bool	isReference (void) const
	Whether this tower is a reference one.
virtual int	isValid () const
	From PHObject.
virtual bool	isZero (void) const
	Whether raw samples are compatible with an empty tower.
virtual int	LG (void) const
	Low gain (pedestal subtracted) value.
virtual int	LGPost (void) const
	Low gain post sample.
virtual int	LGPre (void) const
	Low gain pre sample.
virtual int	LGPP (void) const
	LGPre()-LGPost().
virtual void	print (std::ostream &=std::cout, int=0) const
	Output to stream.
virtual emcTowerContent *	Reference (void) const
	Pointer to reference (if available, see hasReference()).
virtual void	SetADCTDC (int, int, int=0, int=0)
	Set the "DC" values : ADC and TDC.
virtual void	SetCalibrated (float, float)
	Set the calibrated values : energy and tof.
virtual void	SetDataError (int)
	Set the data Error.
virtual void	SetID (int, int)
	Set the id of this tower, by means of the pair (fem,channel).
virtual void	SetGain (float)
	Set the gain.
virtual void	SetNeighbours (unsigned int, unsigned int)
	Set the deadmap and warnmap.
virtual void	SetMerSimStatus (bool, bool)
	Set the merged and sim status.
virtual void	SetRaw (int, int, int, int, int, int=0, int=0, int=0, int=0)
	Set the raw sample values.
virtual void	SetSimFrac (float)
	Set the simulated energy fraction.
virtual void	SetToF (float)
	Set the (corrected) tof.
virtual float	SimFrac () const
	Fraction of simulated energy (0=real tower, 1=simulated, in between for a merged, i.e.
virtual int	TAC (void) const
	TAC sample value.
virtual int	TDC (void) const
	TDC value.
virtual float	ToF (void) const
	Get the ToF value (ns).
virtual float	UncorrectedToF () const
	Uncorrected ToF value (ns).
virtual int	TowerID (void) const
	TowerID (computed from (fem,channel) pair).
int	TowerId (void) const
	Alias for TowerID.
int	towerid (void) const
	Another alias for TowerID.
virtual unsigned int	WarnNeighbours (void) const
	Warnmap (see also ErrorNeighbours()).
virtual void	Zero (void)
	Reset the raw samples.
void	ShutUp (const int i=1)
Actual features.
Test if this tower actually has some feature.
virtual bool	hasCalib (void) const
	Whether this tower has Energy and ToF available.
virtual bool	hasDC (void) const
	Whether this tower has ADC and TDC values available.
virtual bool	hasGain (void) const
	Whether this tower has the gain (which was used to normalize the ADC value to take into account time evolution) available.
virtual bool	hasMerSimStatus (void) const
	Whether we can set the merged/simulated status.
virtual bool	hasRaw (void) const
	Whether this tower has raw samples availalble.
virtual bool	hasReference (void) const
	Tells whether this tower has a reference (from monitoring system information available.
Possible features.
Test if this tower might have some feature. (to test if the tower actually has it, use the hasXXX methods).
virtual bool	canHaveCalib () const
	Whether this tower can hold calibrated (energy,tof) values.
virtual bool	canHaveDC () const
	Whether this tower can hold DC (ADC,TDC) values.
virtual bool	canHaveGain () const
	Whether this tower can hold Gain value.
virtual bool	canHaveMerSimStatus () const
	Whether this tower can have the Merged/Simulated status.
virtual bool	canHaveRaw () const
	Whether this tower can hold raw (HGPre,HGPost,LGPre,LGPost,TAC) samples.
Protected Member Functions
emcTowerContent &	operator= (const emcTowerContent &rhs)
	This one is protected on purpose.
Private Member Functions
void	warning (const char *) const

emcTowerContent Class Reference [Tower calibration, Interfaces, Tower clustering]

Detailed Description

Public Member Functions

Protected Member Functions

Private Member Functions

Constructor & Destructor Documentation

Member Function Documentation

emcTowerContent Class Reference
[Tower calibration, Interfaces, Tower clustering]
