emcClusterContent Class Reference

#include <emcClusterContent.h>

Inherited by emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.

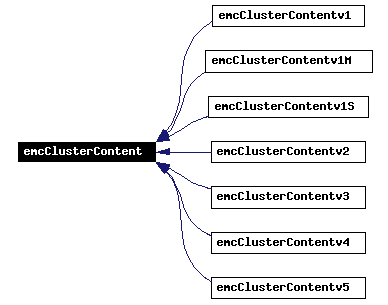

Inheritance diagram for emcClusterContent:

[legend]List of all members.

Detailed Description

Definition at line 20 of file emcClusterContent.h.

Public Member Functions

virtual ~emcClusterContent ()

emcClusterContent * clone (void) const

Returns a copy of this cluster.

emcClusterContent * create (void) const

Return an empty copy of this cluster (i.e. copy only the type).

virtual int arm () const

Arm number (WARNING: convention is reversed from PHENIX) : West=0, East=1.

virtual bool canBeMerged () const

Whether this cluster can contain both a real and simulated part.

virtual float chi2 () const

Indicative of how close the shower shape is from an electromagnetic show.

virtual unsigned int cutword () const

Might be used to associate some flag value to this cluster.

virtual unsigned int deadmap () const

A 29 bits integer indicating the error status (both w.r.t energy and tof) of the cluster towers.

virtual float e () const

virtual float e9 () const

virtual float ecore () const

virtual float ecent () const

virtual bool has_rawtdc () const

whether we do have rawtdc value or not.

virtual bool has_yz_cg () const

whether we do have cg (center of gravity) coordinates or not.

virtual bool has_id () const

virtual bool has_pid () const

virtual bool has_type () const

virtual bool has_Dxyz () const

virtual bool has_E9 () const

virtual bool has_Etofmin () const

virtual bool has_Etofmax () const

virtual bool has_Quality () const

virtual bool has_Phi () const

virtual bool has_Theta () const

virtual bool has_Tofdisp () const

virtual bool has_Tofmin () const

virtual bool has_Tofmax () const

virtual bool has_Tofcorrmin () const

virtual bool has_Tofcorrmax () const

virtual int id () const

Cluster identifier.

virtual void identify (std::ostream &os=std::cout) const

virtual int isValid () const

int isValid (const float f) const

int isValid (const int i) const

int isValid (const unsigned int i) const

virtual bool isMerged () const

Whether this cluster is an embedded one (i.e.

virtual bool isSimulated () const

Whether this cluster is a simulated one (i.e.

virtual float quality () const

virtual int multiplicity () const

Number of towers in this cluster.

virtual float padispy () const

Dispersions along the principal axis of the clusters.

virtual float padispz () const

virtual float partesum (int index) const

Partial sum of energy in the index-th tower.

virtual float prob_photon () const

Probability that this cluster is a photon.

virtual float phi () const

Phi angle of this cluster. Radians.

virtual int pid () const

virtual void print (std::ostream &out=std::cout) const

virtual float rawtdc () const

virtual int sector () const

Sector number (ranging from 0 to 3).

virtual float simfrac () const

Fraction of energy in this cluster that comes from simulated towers.

virtual float tof () const

TOF of the central tower, minus the flash time (=sqrt(x2+y2+z2)/30.0)).

virtual float tofcorr () const

Same as above (tof()) for the moment.

virtual float tofhad () const

TOF, assuming cluster originate from a hadron.

virtual float tofdisp () const

Dispersion of the TOF. Not implemented yet.

virtual float theta () const

Theta angle of the cluster. Radians.

virtual int towerid (int index) const

towerid of the index-th tower of the cluster index goes from 0 to multiplicity()-1.

int twrhit () const

For backward compatibility reason only.

virtual int type () const

Detector type. 1 = PbSc, 2 = PbGl.

virtual unsigned int warnmap () const

Similar to deadmap, but for warning status.

virtual short emcpc3 () const

virtual short emcpc3neartrk () const

virtual float emcpc3dz () const

virtual float emcpc3dphi () const

virtual short emctrk () const

virtual float emctrkdz () const

virtual float emctrkdphi () const

virtual float pemctrk () const

virtual short emctrkquality () const

void ShutUp (const int i=1)

virtual void Copy (const emcClusterContent &src)

virtual float corrdispy () const

Corrected dispersions (for simple periodic structure of the disp) along y and z axis.

virtual float corrdispz () const

virtual float dispy () const

Dispersions (second moment of the tower positions distribution within the cluster) along y and z axis.

virtual float dispz () const

virtual float dx () const

Errors on position x,y,z of the cluster.

virtual float dy () const

virtual float dz () const

virtual float etofmin () const

Energy of the tower that has the max (min) tof.

virtual float etofmax () const

virtual int iypos () const

Integer position within the sector of the central tower.

virtual int izpos () const

virtual float tofmin () const

Minimun and maximum tofs of the clusters.

virtual float tofmax () const

virtual float tofcorrmin () const

virtual float tofcorrmax () const

virtual float x () const

Position x,y,z of the cluster.

virtual float y () const

virtual float z () const

virtual float ycg () const

Center-of-gravity coordinates (in sector plane).

virtual float zcg () const

virtual void set_arm (int)

Various setters to set the above values.

virtual void set_chi2 (float)

virtual void set_corrdisp (float corrdispy, float corrdispz)

virtual void set_cutword (unsigned int)

virtual void set_disp (float dispy, float _dispz)

virtual void set_dxyz (float dx, float dy, float dz)

virtual void set_e (float)

virtual void set_e9 (float)

virtual void set_ecore (float)

virtual void set_ecent (float)

virtual void set_etofmin (float)

virtual void set_etofmax (float)

virtual void set_id (int id)

virtual void set_ipos (int iy, int iz)

virtual void set_quality (float)

virtual void set_maps (unsigned int deadmap, unsigned int warnmap)

virtual void set_multiplicity (int)

virtual void set_padisp (float padispy, float padispz)

virtual void set_partesum (int index, float value)

virtual void set_prob_photon (float)

virtual void set_phi (float)

virtual void set_pid (int)

virtual void set_rawtdc (float)

virtual void set_sector (int)

virtual void set_simfrac (float)

virtual void set_tof (float)

virtual void set_tofhad (float)

virtual void set_tofdisp (float)

virtual void set_tofmin (float)

virtual void set_tofmax (float)

virtual void set_tofcorr (float)

virtual void set_tofcorrmin (float)

virtual void set_tofcorrmax (float)

virtual void set_theta (float)

virtual void set_towerid (int index, int value)

virtual void set_type (int)

virtual void set_xyz (float x, float y, float z)

virtual void set_yz_cg (float ycg, float zcg)

virtual void set_emcpc3 (short)

virtual void set_emcpc3neartrk (short)

virtual void set_emcpc3dz (float)

virtual void set_emcpc3dphi (float)

virtual void set_emctrk (short)

virtual void set_emctrkdz (float)

virtual void set_emctrkdphi (float)

virtual void set_pemctrk (float)

virtual void set_emctrkquality (short)

Protected Member Functions

emcClusterContent & operator= (const emcClusterContent &rhs)

This one is protected on purpose.

Private Member Functions

void warning (const char *field) const

Constructor & Destructor Documentation

virtual emcClusterContent::~emcClusterContent ( ) [inline, virtual]

Definition at line 26 of file emcClusterContent.h.

Member Function Documentation

virtual int emcClusterContent::arm ( ) const [inline, virtual]

Arm number (WARNING: convention is reversed from PHENIX) : West=0, East=1.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 39 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual bool emcClusterContent::canBeMerged ( ) const [inline, virtual]

Whether this cluster can contain both a real and simulated part.

Reimplemented in emcClusterContentv1M.
Definition at line 42 of file emcClusterContent.h.

virtual float emcClusterContent::chi2 ( ) const [inline, virtual]

Indicative of how close the shower shape is from an electromagnetic show.
A low chi2 means high probability of being an EM shower. Only for PbSc. Typical chi2 is chi2<3.0
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 49 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

emcClusterContent* emcClusterContent::clone ( void ) const [inline]

Returns a copy of this cluster.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 29 of file emcClusterContent.h.
References warning().

void emcClusterContent::Copy ( const emcClusterContent & src ) [virtual]

Definition at line 56 of file emcClusterContent.C.
References arm(), chi2(), corrdispy(), corrdispz(), cutword(), deadmap(), dispy(), dispz(), dx(), dy(), dz(), e(), e9(), ecent(), ecore(), emcpc3(), emcpc3dphi(), emcpc3dz(), emcpc3neartrk(), emctrk(), emctrkdphi(), emctrkdz(), emctrkquality(), etofmax(), etofmin(), id(), iypos(), izpos(), multiplicity(), padispy(), padispz(), partesum(), pemctrk(), phi(), pid(), prob_photon(), quality(), rawtdc(), sector(), set_arm(), set_chi2(), set_corrdisp(), set_cutword(), set_disp(), set_dxyz(), set_e(), set_e9(), set_ecent(), set_ecore(), set_emcpc3(), set_emcpc3dphi(), set_emcpc3dz(), set_emcpc3neartrk(), set_emctrk(), set_emctrkdphi(), set_emctrkdz(), set_emctrkquality(), set_etofmax(), set_etofmin(), set_id(), set_ipos(), set_maps(), set_multiplicity(), set_padisp(), set_partesum(), set_pemctrk(), set_phi(), set_pid(), set_prob_photon(), set_quality(), set_rawtdc(), set_sector(), set_simfrac(), set_theta(), set_tof(), set_tofcorr(), set_tofcorrmax(), set_tofcorrmin(), set_tofdisp(), set_tofhad(), set_tofmax(), set_tofmin(), set_towerid(), set_type(), set_xyz(), set_yz_cg(), ShutUp(), simfrac(), theta(), tof(), tofcorr(), tofcorrmax(), tofcorrmin(), tofdisp(), tofhad(), tofmax(), tofmin(), towerid(), type(), warnmap(), x(), y(), ycg(), z(), and zcg().
Referenced by emcClusterContainer::addCluster().

virtual float emcClusterContent::corrdispy ( ) const [inline, virtual]

Corrected dispersions (for simple periodic structure of the disp) along y and z axis.
Only available if has_yz_cg()=true. Only for PbGl ? Dimensionless.
Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 57 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::corrdispz ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 58 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

emcClusterContent* emcClusterContent::create ( void ) const [inline]

Return an empty copy of this cluster (i.e. copy only the type).

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 32 of file emcClusterContent.h.
References warning().

virtual unsigned int emcClusterContent::cutword ( ) const [inline, virtual]

Might be used to associate some flag value to this cluster.

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 62 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual unsigned int emcClusterContent::deadmap ( ) const [inline, virtual]

A 29 bits integer indicating the error status (both w.r.t energy and tof) of the cluster towers.
It's relative to the central tower, i.e the deadmap is the one of the central tower and indicates the error status of the neighbours of the central tower. For energy, the bits are: --------------------- | | 18| 19| 20| | --------------------- | 13| 14| 15| 16| 17| --------------------- ^ y | 8 | 9 | 10| 11| 12| | --------------------- | | 3 | 4 | 5 | 6 | 7 | | --------------------- ------> z(x) | | 0 | 1 | 2 | | --------------------- as viewed from the back of the central tower (which has bit 10 set to 1 if it's itself a bad module); corner towers are excluded
For ToF bits are : ------------- | 27| 28| 29| ^ y ------------- | | 24| 25| 26| | ------------- | | 21| 22| 23| ------> z(x) ------------- as viewed from the back of the central tower (which has bit 25 set to 1 if it's itself a bad module)
So, the central tower of the cluster has a problem with amplitude measurements if deamap satisfies the 0x400 mask.
Some other useful masks. The mask to look for amplitude errors or warnings in the 3x3 region around the central tower is: 0x1ce70 In the 5x5 region: 0x1fffff To see if there are ToF problems for the central tower: 0x2000000
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 106 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual float emcClusterContent::dispy ( ) const [inline, virtual]

Dispersions (second moment of the tower positions distribution within the cluster) along y and z axis.
Unit is cm^2.
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 112 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::dispz ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 113 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::dx ( ) const [inline, virtual]

Errors on position x,y,z of the cluster.
Unit cm.
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 118 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::dy ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 119 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::dz ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 120 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::e ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 124 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::e9 ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 127 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::ecent ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 133 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::ecore ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 130 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual short emcClusterContent::emcpc3 ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 316 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual float emcClusterContent::emcpc3dphi ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 319 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::emcpc3dz ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 318 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual short emcClusterContent::emcpc3neartrk ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 317 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual short emcClusterContent::emctrk ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 320 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual float emcClusterContent::emctrkdphi ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 322 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::emctrkdz ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 321 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual short emcClusterContent::emctrkquality ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 324 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual float emcClusterContent::etofmax ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 138 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::etofmin ( ) const [inline, virtual]

Energy of the tower that has the max (min) tof.
GeV.
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 137 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual bool emcClusterContent::has_Dxyz ( ) const [inline, virtual]

Definition at line 155 of file emcClusterContent.h.

virtual bool emcClusterContent::has_E9 ( ) const [inline, virtual]

Definition at line 156 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Etofmax ( ) const [inline, virtual]

Definition at line 158 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Etofmin ( ) const [inline, virtual]

Definition at line 157 of file emcClusterContent.h.

virtual bool emcClusterContent::has_id ( ) const [inline, virtual]

Definition at line 152 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Phi ( ) const [inline, virtual]

Definition at line 160 of file emcClusterContent.h.

virtual bool emcClusterContent::has_pid ( ) const [inline, virtual]

Definition at line 153 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Quality ( ) const [inline, virtual]

Definition at line 159 of file emcClusterContent.h.

virtual bool emcClusterContent::has_rawtdc ( ) const [inline, virtual]

whether we do have rawtdc value or not.

Reimplemented in emcClusterContentv5.
Definition at line 143 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Theta ( ) const [inline, virtual]

Definition at line 161 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Tofcorrmax ( ) const [inline, virtual]

Definition at line 166 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Tofcorrmin ( ) const [inline, virtual]

Definition at line 165 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Tofdisp ( ) const [inline, virtual]

Definition at line 162 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Tofmax ( ) const [inline, virtual]

Definition at line 164 of file emcClusterContent.h.

virtual bool emcClusterContent::has_Tofmin ( ) const [inline, virtual]

Definition at line 163 of file emcClusterContent.h.

virtual bool emcClusterContent::has_type ( ) const [inline, virtual]

Definition at line 154 of file emcClusterContent.h.

virtual bool emcClusterContent::has_yz_cg ( ) const [inline, virtual]

whether we do have cg (center of gravity) coordinates or not.
If we do, then we *must* also provide corrdispy,z
Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 148 of file emcClusterContent.h.
Referenced by mEmcClusterizerv0::fillPeakArea().

virtual int emcClusterContent::id ( ) const [inline, virtual]

Cluster identifier.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 170 of file emcClusterContent.h.
References warning().
Referenced by Copy().

void emcClusterContent::identify ( std::ostream & os = std::cout ) const [virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 18 of file emcClusterContent.C.
References warning().

virtual bool emcClusterContent::isMerged ( void ) const [inline, virtual]

Whether this cluster is an embedded one (i.e.
has some energy from real towers and from simulated towers).
Definition at line 183 of file emcClusterContent.h.
References simfrac().

virtual bool emcClusterContent::isSimulated ( void ) const [inline, virtual]

Whether this cluster is a simulated one (i.e.
simfrac()==1.0)
Definition at line 187 of file emcClusterContent.h.
References simfrac().

int emcClusterContent::isValid ( const unsigned int i ) const

Definition at line 125 of file emcClusterContent.C.

int emcClusterContent::isValid ( const int i ) const

Definition at line 115 of file emcClusterContent.C.

int emcClusterContent::isValid ( const float f ) const

Definition at line 135 of file emcClusterContent.C.

int emcClusterContent::isValid ( ) const [virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 25 of file emcClusterContent.C.
References warning().

virtual int emcClusterContent::iypos ( ) const [inline, virtual]

Integer position within the sector of the central tower.
y=0..35 and z=0..71 for PbSc, y=0..47 and z=0..96 for PbGl
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 194 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual int emcClusterContent::izpos ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 195 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual int emcClusterContent::multiplicity ( ) const [inline, virtual]

Number of towers in this cluster.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 202 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and twrhit().

emcClusterContent& emcClusterContent::operator= ( const emcClusterContent & rhs ) [protected]

This one is protected on purpose.
See e.g. Scott Meyers' More Effective C++ Item 33.

virtual float emcClusterContent::padispy ( ) const [inline, virtual]

Dispersions along the principal axis of the clusters.
Unit cm^2
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 206 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::padispz ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 207 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::partesum ( int index ) const [inline, virtual]

Partial sum of energy in the index-th tower.
partesum(i) = sum_over_j(E_j/Ecluster) where j=0..i index ranges from 0 to multiplicity(). Dimensionless.
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 215 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::pemctrk ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 323 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::phi ( ) const [inline, virtual]

Phi angle of this cluster. Radians.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 221 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual int emcClusterContent::pid ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 224 of file emcClusterContent.h.
References warning().
Referenced by Copy().

void emcClusterContent::print ( std::ostream & out = std::cout ) const [virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 33 of file emcClusterContent.C.
References warning().
Referenced by operator<<(), and emcClusterContainer::print().

virtual float emcClusterContent::prob_photon ( ) const [inline, virtual]

Probability that this cluster is a photon.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 218 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::quality ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 199 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::rawtdc ( ) const [inline, virtual]

Reimplemented in emcClusterContentv5.
Definition at line 228 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual int emcClusterContent::sector ( ) const [inline, virtual]

Sector number (ranging from 0 to 3).
Offline convention. SECTOR PARM(*) ARM(**) SECTOR W0 1 0 0 W1 1 0 1 W2 1 0 2 W3 1 0 3
E3 0 1 3 E2 0 1 2 E1 0 1 1 E0 0 1 0
(*) arm in PHENIX convention (**) arm in EMCAL wrong convention (e.g. return by the arm() method of this very object).
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 246 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_arm ( int ) [inline, virtual]

Various setters to set the above values.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 333 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_chi2 ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 334 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_corrdisp ( float corrdispy,

float corrdispz

) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 335 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_cutword ( unsigned int ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 336 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_disp ( float dispy,

float _dispz

) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 337 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_dxyz ( float dx,

float dy,

float dz

) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 338 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_e ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 340 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_e9 ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 341 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_ecent ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 343 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_ecore ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 342 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_emcpc3 ( short ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 376 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_emcpc3dphi ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 379 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_emcpc3dz ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 378 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_emcpc3neartrk ( short ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 377 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_emctrk ( short ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 380 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_emctrkdphi ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 382 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_emctrkdz ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 381 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_emctrkquality ( short ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 384 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_etofmax ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 345 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_etofmin ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 344 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_id ( int id ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 346 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_ipos ( int iy,

int iz

) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 347 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_maps ( unsigned int deadmap,

unsigned int warnmap

) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 349 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_multiplicity ( int ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 351 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_padisp ( float padispy,

float padispz

) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 352 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_partesum ( int index,

float value

) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 354 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_pemctrk ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv4, and emcClusterContentv5.
Definition at line 383 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_phi ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 356 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_pid ( int ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 357 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_prob_photon ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 355 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_quality ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 348 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_rawtdc ( float ) [inline, virtual]

Reimplemented in emcClusterContentv5.
Definition at line 358 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_sector ( int ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 359 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_simfrac ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1M, and emcClusterContentv1S.
Definition at line 360 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_theta ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 369 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_tof ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 361 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_tofcorr ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 366 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_tofcorrmax ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 368 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_tofcorrmin ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 367 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_tofdisp ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 363 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_tofhad ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 362 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_tofmax ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 365 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_tofmin ( float ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 364 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_towerid ( int index,

int value

) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 370 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual void emcClusterContent::set_type ( int ) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 371 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_xyz ( float x,

float y,

float z

) [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 372 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

virtual void emcClusterContent::set_yz_cg ( float ycg,

float zcg

) [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 373 of file emcClusterContent.h.
References warning().
Referenced by Copy(), and mEmcClusterizerv0::fillPeakArea().

void emcClusterContent::ShutUp ( const int i = 1 )

Definition at line 50 of file emcClusterContent.C.
Referenced by Copy().

virtual float emcClusterContent::simfrac ( ) const [inline, virtual]

Fraction of energy in this cluster that comes from simulated towers.

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 250 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy(), isMerged(), and isSimulated().

virtual float emcClusterContent::theta ( ) const [inline, virtual]

Theta angle of the cluster. Radians.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 277 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::tof ( ) const [inline, virtual]

TOF of the central tower, minus the flash time (=sqrt(x2+y2+z2)/30.0)).
Unit ns.
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 255 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::tofcorr ( ) const [inline, virtual]

Same as above (tof()) for the moment.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 258 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::tofcorrmax ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 273 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::tofcorrmin ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 272 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::tofdisp ( ) const [inline, virtual]

Dispersion of the TOF. Not implemented yet.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 265 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::tofhad ( ) const [inline, virtual]

TOF, assuming cluster originate from a hadron.

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 262 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::tofmax ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 271 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::tofmin ( ) const [inline, virtual]

Minimun and maximum tofs of the clusters.
Unit ns.
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 270 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual int emcClusterContent::towerid ( int index ) const [inline, virtual]

towerid of the index-th tower of the cluster index goes from 0 to multiplicity()-1.
This towerid can be used to recover full tower information using the emcTowerContainer object (if available in the xDST you're reading) and its findTower(towerid) method.
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 285 of file emcClusterContent.h.
References warning().
Referenced by Copy().

int emcClusterContent::twrhit ( ) const [inline]

For backward compatibility reason only.
Multiplicity used to be called twrhit in old STAF tables.
Definition at line 290 of file emcClusterContent.h.
References multiplicity().

virtual int emcClusterContent::type ( ) const [inline, virtual]

Detector type. 1 = PbSc, 2 = PbGl.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 293 of file emcClusterContent.h.
References warning().
Referenced by Copy().

void emcClusterContent::warning ( const char * field ) const [private]

Definition at line 39 of file emcClusterContent.C.
Referenced by arm(), chi2(), clone(), corrdispy(), corrdispz(), create(), cutword(), deadmap(), dispy(), dispz(), dx(), dy(), dz(), e(), e9(), ecent(), ecore(), emcpc3(), emcpc3dphi(), emcpc3dz(), emcpc3neartrk(), emctrk(), emctrkdphi(), emctrkdz(), emctrkquality(), etofmax(), etofmin(), id(), identify(), isValid(), iypos(), izpos(), multiplicity(), padispy(), padispz(), partesum(), pemctrk(), phi(), pid(), print(), prob_photon(), quality(), rawtdc(), sector(), set_arm(), set_chi2(), set_corrdisp(), set_cutword(), set_disp(), set_dxyz(), set_e(), set_e9(), set_ecent(), set_ecore(), set_emcpc3(), set_emcpc3dphi(), set_emcpc3dz(), set_emcpc3neartrk(), set_emctrk(), set_emctrkdphi(), set_emctrkdz(), set_emctrkquality(), set_etofmax(), set_etofmin(), set_id(), set_ipos(), set_maps(), set_multiplicity(), set_padisp(), set_partesum(), set_pemctrk(), set_phi(), set_pid(), set_prob_photon(), set_quality(), set_rawtdc(), set_sector(), set_simfrac(), set_theta(), set_tof(), set_tofcorr(), set_tofcorrmax(), set_tofcorrmin(), set_tofdisp(), set_tofhad(), set_tofmax(), set_tofmin(), set_towerid(), set_type(), set_xyz(), set_yz_cg(), simfrac(), theta(), tof(), tofcorr(), tofcorrmax(), tofcorrmin(), tofdisp(), tofhad(), tofmax(), tofmin(), towerid(), type(), warnmap(), x(), y(), ycg(), z(), and zcg().

virtual unsigned int emcClusterContent::warnmap ( ) const [inline, virtual]

Similar to deadmap, but for warning status.

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 296 of file emcClusterContent.h.
References warning().
Referenced by Copy().

virtual float emcClusterContent::x ( ) const [inline, virtual]

Position x,y,z of the cluster.
Unit cm.
Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 301 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::y ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 302 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::ycg ( ) const [inline, virtual]

Center-of-gravity coordinates (in sector plane).
Only available if has_yz_cg()=true. Unit cm.
Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 311 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::z ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1, emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 303 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

virtual float emcClusterContent::zcg ( ) const [inline, virtual]

Reimplemented in emcClusterContentv1M, emcClusterContentv1S, emcClusterContentv2, emcClusterContentv3, emcClusterContentv4, and emcClusterContentv5.
Definition at line 312 of file emcClusterContent.h.
References NAN, and warning().
Referenced by Copy().

The documentation for this class was generated from the following files:


Public Member Functions
virtual	~emcClusterContent ()
emcClusterContent *	clone (void) const
	Returns a copy of this cluster.
emcClusterContent *	create (void) const
	Return an empty copy of this cluster (i.e. copy only the type).
virtual int	arm () const
	Arm number (WARNING: convention is reversed from PHENIX) : West=0, East=1.
virtual bool	canBeMerged () const
	Whether this cluster can contain both a real and simulated part.
virtual float	chi2 () const
	Indicative of how close the shower shape is from an electromagnetic show.
virtual unsigned int	cutword () const
	Might be used to associate some flag value to this cluster.
virtual unsigned int	deadmap () const
	A 29 bits integer indicating the error status (both w.r.t energy and tof) of the cluster towers.
virtual float	e () const
virtual float	e9 () const
virtual float	ecore () const
virtual float	ecent () const
virtual bool	has_rawtdc () const
	whether we do have rawtdc value or not.
virtual bool	has_yz_cg () const
	whether we do have cg (center of gravity) coordinates or not.
virtual bool	has_id () const
virtual bool	has_pid () const
virtual bool	has_type () const
virtual bool	has_Dxyz () const
virtual bool	has_E9 () const
virtual bool	has_Etofmin () const
virtual bool	has_Etofmax () const
virtual bool	has_Quality () const
virtual bool	has_Phi () const
virtual bool	has_Theta () const
virtual bool	has_Tofdisp () const
virtual bool	has_Tofmin () const
virtual bool	has_Tofmax () const
virtual bool	has_Tofcorrmin () const
virtual bool	has_Tofcorrmax () const
virtual int	id () const
	Cluster identifier.
virtual void	identify (std::ostream &os=std::cout) const
virtual int	isValid () const
int	isValid (const float f) const
int	isValid (const int i) const
int	isValid (const unsigned int i) const
virtual bool	isMerged () const
	Whether this cluster is an embedded one (i.e.
virtual bool	isSimulated () const
	Whether this cluster is a simulated one (i.e.
virtual float	quality () const
virtual int	multiplicity () const
	Number of towers in this cluster.
virtual float	padispy () const
	Dispersions along the principal axis of the clusters.
virtual float	padispz () const
virtual float	partesum (int index) const
	Partial sum of energy in the index-th tower.
virtual float	prob_photon () const
	Probability that this cluster is a photon.
virtual float	phi () const
	Phi angle of this cluster. Radians.
virtual int	pid () const
virtual void	print (std::ostream &out=std::cout) const
virtual float	rawtdc () const
virtual int	sector () const
	Sector number (ranging from 0 to 3).
virtual float	simfrac () const
	Fraction of energy in this cluster that comes from simulated towers.
virtual float	tof () const
	TOF of the central tower, minus the flash time (=sqrt(x2+y2+z2)/30.0)).
virtual float	tofcorr () const
	Same as above (tof()) for the moment.
virtual float	tofhad () const
	TOF, assuming cluster originate from a hadron.
virtual float	tofdisp () const
	Dispersion of the TOF. Not implemented yet.
virtual float	theta () const
	Theta angle of the cluster. Radians.
virtual int	towerid (int index) const
	towerid of the index-th tower of the cluster index goes from 0 to multiplicity()-1.
int	twrhit () const
	For backward compatibility reason only.
virtual int	type () const
	Detector type. 1 = PbSc, 2 = PbGl.
virtual unsigned int	warnmap () const
	Similar to deadmap, but for warning status.
virtual short	emcpc3 () const
virtual short	emcpc3neartrk () const
virtual float	emcpc3dz () const
virtual float	emcpc3dphi () const
virtual short	emctrk () const
virtual float	emctrkdz () const
virtual float	emctrkdphi () const
virtual float	pemctrk () const
virtual short	emctrkquality () const
void	ShutUp (const int i=1)
virtual void	Copy (const emcClusterContent &src)

virtual float	corrdispy () const
	Corrected dispersions (for simple periodic structure of the disp) along y and z axis.
virtual float	corrdispz () const

virtual float	dispy () const
	Dispersions (second moment of the tower positions distribution within the cluster) along y and z axis.
virtual float	dispz () const

virtual float	dx () const
	Errors on position x,y,z of the cluster.
virtual float	dy () const
virtual float	dz () const

virtual float	etofmin () const
	Energy of the tower that has the max (min) tof.
virtual float	etofmax () const

virtual int	iypos () const
	Integer position within the sector of the central tower.
virtual int	izpos () const

virtual float	tofmin () const
	Minimun and maximum tofs of the clusters.
virtual float	tofmax () const
virtual float	tofcorrmin () const
virtual float	tofcorrmax () const

virtual float	x () const
	Position x,y,z of the cluster.
virtual float	y () const
virtual float	z () const

virtual float	ycg () const
	Center-of-gravity coordinates (in sector plane).
virtual float	zcg () const

virtual void	set_arm (int)
	Various setters to set the above values.
virtual void	set_chi2 (float)
virtual void	set_corrdisp (float corrdispy, float corrdispz)
virtual void	set_cutword (unsigned int)
virtual void	set_disp (float dispy, float _dispz)
virtual void	set_dxyz (float dx, float dy, float dz)
virtual void	set_e (float)
virtual void	set_e9 (float)
virtual void	set_ecore (float)
virtual void	set_ecent (float)
virtual void	set_etofmin (float)
virtual void	set_etofmax (float)
virtual void	set_id (int id)
virtual void	set_ipos (int iy, int iz)
virtual void	set_quality (float)
virtual void	set_maps (unsigned int deadmap, unsigned int warnmap)
virtual void	set_multiplicity (int)
virtual void	set_padisp (float padispy, float padispz)
virtual void	set_partesum (int index, float value)
virtual void	set_prob_photon (float)
virtual void	set_phi (float)
virtual void	set_pid (int)
virtual void	set_rawtdc (float)
virtual void	set_sector (int)
virtual void	set_simfrac (float)
virtual void	set_tof (float)
virtual void	set_tofhad (float)
virtual void	set_tofdisp (float)
virtual void	set_tofmin (float)
virtual void	set_tofmax (float)
virtual void	set_tofcorr (float)
virtual void	set_tofcorrmin (float)
virtual void	set_tofcorrmax (float)
virtual void	set_theta (float)
virtual void	set_towerid (int index, int value)
virtual void	set_type (int)
virtual void	set_xyz (float x, float y, float z)
virtual void	set_yz_cg (float ycg, float zcg)
virtual void	set_emcpc3 (short)
virtual void	set_emcpc3neartrk (short)
virtual void	set_emcpc3dz (float)
virtual void	set_emcpc3dphi (float)
virtual void	set_emctrk (short)
virtual void	set_emctrkdz (float)
virtual void	set_emctrkdphi (float)
virtual void	set_pemctrk (float)
virtual void	set_emctrkquality (short)
Protected Member Functions
emcClusterContent &	operator= (const emcClusterContent &rhs)
	This one is protected on purpose.
Private Member Functions
void	warning (const char *field) const
