EmcSuperModule Class Reference

#include <EmcSuperModule.h>

Inherited by PbGlSuperModule, and PbScSuperModule.

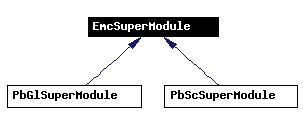

Inheritance diagram for EmcSuperModule:

[legend]List of all members.

---

Detailed Description

ABC of static characteristics of an EMCAL SuperModule.

Can be used to store a lot of hardware specific information The only other important function - it provides for mapping of the supermodule production numbers to the Sector sequential SuperModule numbers It should also be the place to store specific information about FEE crate currently allocated to this supermodule NOTE: anything what can be treated like tower-specific calibration (even if it is due to pecularities of the FEE) should be stored in the Sector object just in the order of towers in that sector

Definition at line 19 of file EmcSuperModule.h.

Public Member Functions
	EmcSuperModule ()
virtual	~EmcSuperModule ()
virtual int	getProductionId ()=0
	Returns production Id (if known).
virtual float	getScrLightYield (int &)=0
virtual float	getMuPeak (int &)=0
virtual float	getLaserRaw (int &)=0
virtual float	getIntSPD ()=0
virtual float	getIntSPDTP ()=0
virtual int	getLgcNumber (int &Twr)=0
virtual float	getU0 (int &)=0
	gets U0 information from WA98. Nedded for debugging purposes on online side only.
virtual float	getUT (int &)=0
	gets UT information from WA98. Nedded for debugging purposes on online side only.
virtual float	getAY (int &Twr)=0
	gets AY information from WA98. Nedded for debugging purposes on online side only.
virtual float	getVY (int &Twr)=0
	gets VY information from WA98. Nedded for debugging purposes on online side only.
virtual float	getBL (int &Twr)=0
	gets BL information from WA98. Nedded for debugging purposes on online side only.
virtual float	getRS (int &Twr)=0
	gets RS information from WA98. Nedded for debugging purposes on online side only.
virtual float	getAYPeak (int &Twr)=0
	gets PMT signal of AY diode from WA98. Nedded for debugging purposes on online side only. Information is used in G0.
virtual float	getAYRef (int &Twr)=0
	gets PIN signal of AY diode from WA98. Nedded for debugging purposes on online side only. Information is used in G0.
virtual float	getTestPeak (int &Twr)=0
	gets PMT signal of AY diode from tests in 902. Nedded for debugging purposes on online side only.
virtual float	getTestRef (int &Twr)=0
	gets PIN signal of AY diode from tests in 902. Nedded for debugging purposes on online side only.
virtual float	getGC (int &Twr)=0
	gets additional calibration factor from WA98. Nedded for debugging purposes on online side only. Information is used in C0.
virtual float	getC0 (int &Twr)=0
	gets calibration factor for PHENIX extracted from WA98 data.
virtual float	getG0 (int &Twr)=0
	gets calibration factor for PHENIX extracted from WA98 data.
virtual float	getCF (int &Twr)=0
virtual bool	LoadSMData ()

---

Constructor & Destructor Documentation

EmcSuperModule::EmcSuperModule (   )

Definition at line 4 of file EmcSuperModule.C.

EmcSuperModule::~EmcSuperModule (   )  [virtual]

Definition at line 9 of file EmcSuperModule.C.

---

Member Function Documentation

virtual float EmcSuperModule::getAY (  int &  Twr  )  [pure virtual]

gets AY information from WA98. Nedded for debugging purposes on online side only. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getAYPeak (  int &  Twr  )  [pure virtual]

gets PMT signal of AY diode from WA98. Nedded for debugging purposes on online side only. Information is used in G0. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getAYRef (  int &  Twr  )  [pure virtual]

gets PIN signal of AY diode from WA98. Nedded for debugging purposes on online side only. Information is used in G0. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getBL (  int &  Twr  )  [pure virtual]

gets BL information from WA98. Nedded for debugging purposes on online side only. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getC0 (  int &  Twr  )  [pure virtual]

gets calibration factor for PHENIX extracted from WA98 data. C0 = 10/487.5 * U0 * UT * GC Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getCF (  int &  Twr  )  [pure virtual]

Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getG0 (  int &  Twr  )  [pure virtual]

gets calibration factor for PHENIX extracted from WA98 data. G0 = PM(AY)_T_WA98 / PIN(AY)_T_WA98 Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getGC (  int &  Twr  )  [pure virtual]

gets additional calibration factor from WA98. Nedded for debugging purposes on online side only. Information is used in C0. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getIntSPD (   )  [pure virtual]

Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getIntSPDTP (   )  [pure virtual]

Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getLaserRaw (  int &   )  [pure virtual]

Implemented in PbGlSuperModule, and PbScSuperModule.

virtual int EmcSuperModule::getLgcNumber (  int &  Twr  )  [pure virtual]

Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getMuPeak (  int &   )  [pure virtual]

Implemented in PbGlSuperModule, and PbScSuperModule.

virtual int EmcSuperModule::getProductionId (   )  [inline, pure virtual]

Returns production Id (if known). Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getRS (  int &  Twr  )  [pure virtual]

gets RS information from WA98. Nedded for debugging purposes on online side only. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getScrLightYield (  int &   )  [pure virtual]

Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getTestPeak (  int &  Twr  )  [pure virtual]

gets PMT signal of AY diode from tests in 902. Nedded for debugging purposes on online side only. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getTestRef (  int &  Twr  )  [pure virtual]

gets PIN signal of AY diode from tests in 902. Nedded for debugging purposes on online side only. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getU0 (  int &   )  [pure virtual]

gets U0 information from WA98. Nedded for debugging purposes on online side only. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getUT (  int &   )  [pure virtual]

gets UT information from WA98. Nedded for debugging purposes on online side only. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual float EmcSuperModule::getVY (  int &  Twr  )  [pure virtual]

gets VY information from WA98. Nedded for debugging purposes on online side only. Implemented in PbGlSuperModule, and PbScSuperModule.

virtual bool EmcSuperModule::LoadSMData (   )  [inline, virtual]

Reimplemented in PbScSuperModule. Definition at line 71 of file EmcSuperModule.h.

---

The documentation for this class was generated from the following files:

• EmcSuperModule.h
• EmcSuperModule.C
