Run Info

This table gives a summary of some of the configurations we tried.

The columns are: -Run: run number
-Arm: arm id (0/1 for South/North)
-Gap: gap/plane that was studied (out of trigger)
-Gap-HV (V): HV setting for studied gap
-Even/odd: Even/odd channels (E = even, O = odd, EO = both)
-Other-HV (V): HV setting for other gaps
-Gap-Vth (mV): threshold setting for studied gap
-Other-Vth (V): threshold setting for other gaps

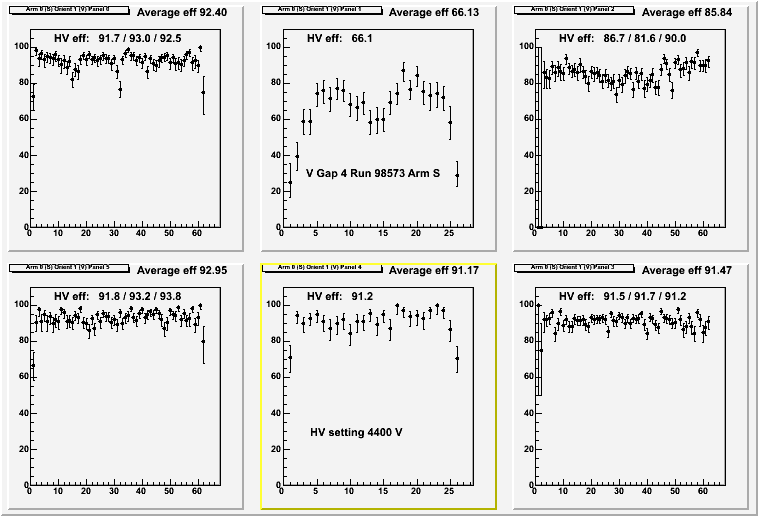

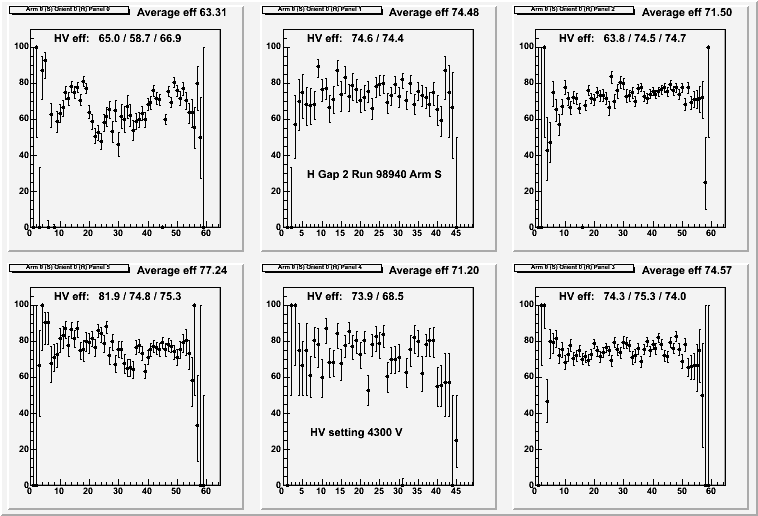

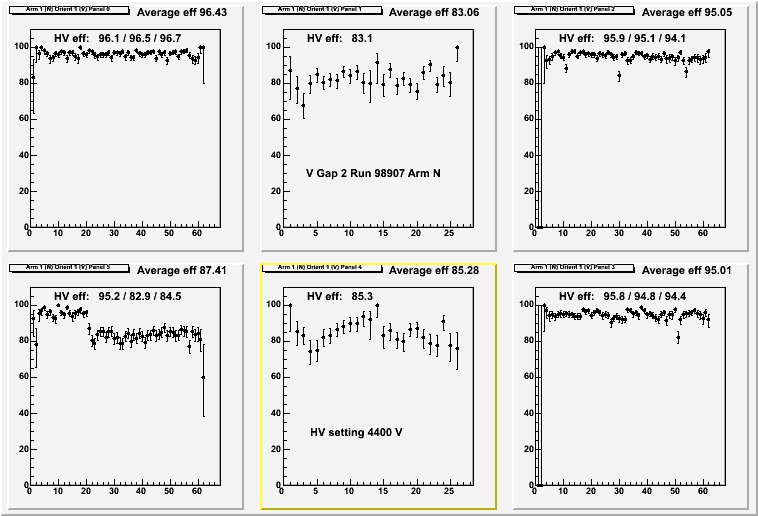

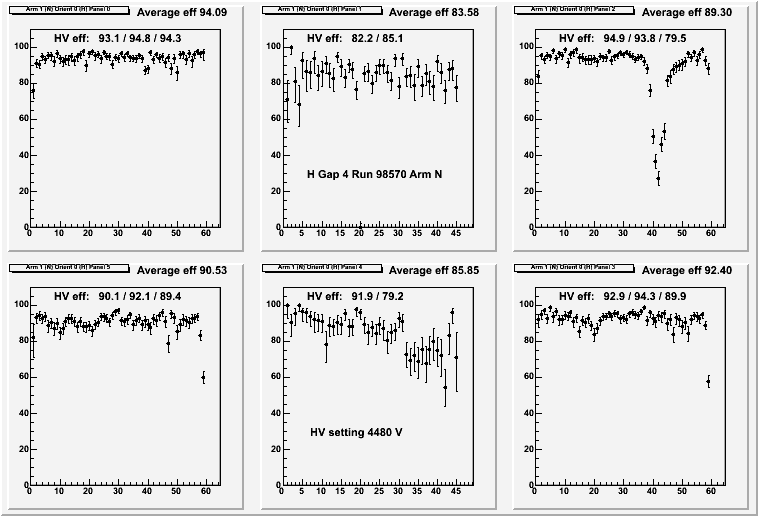

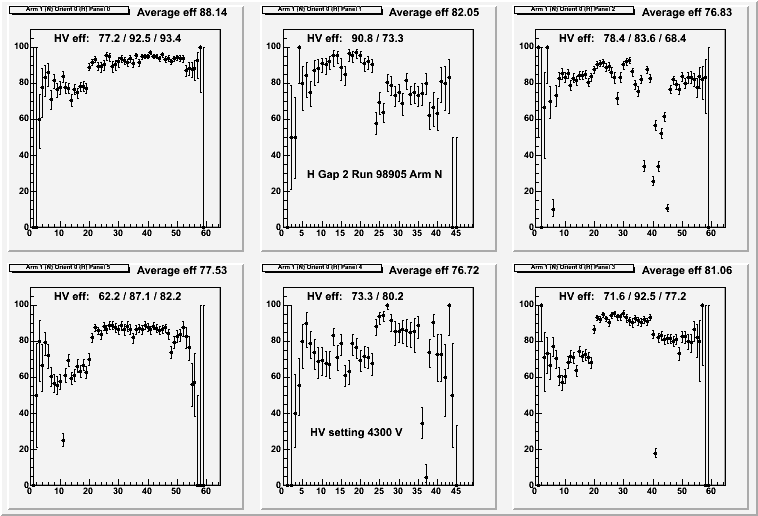

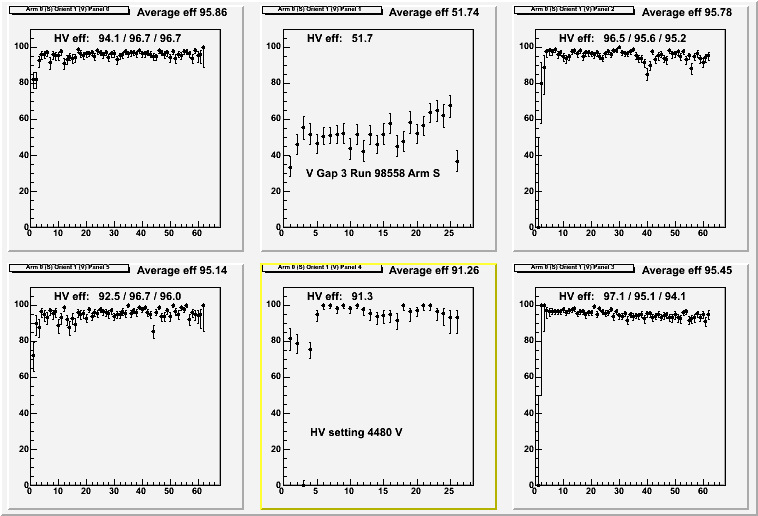

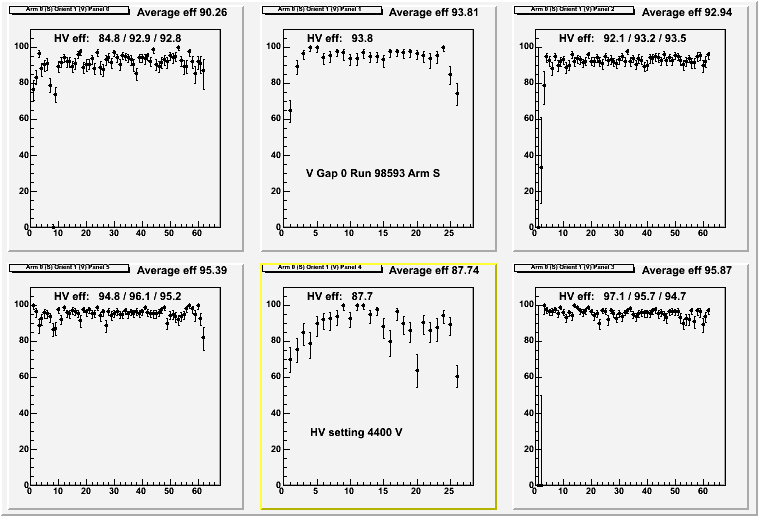

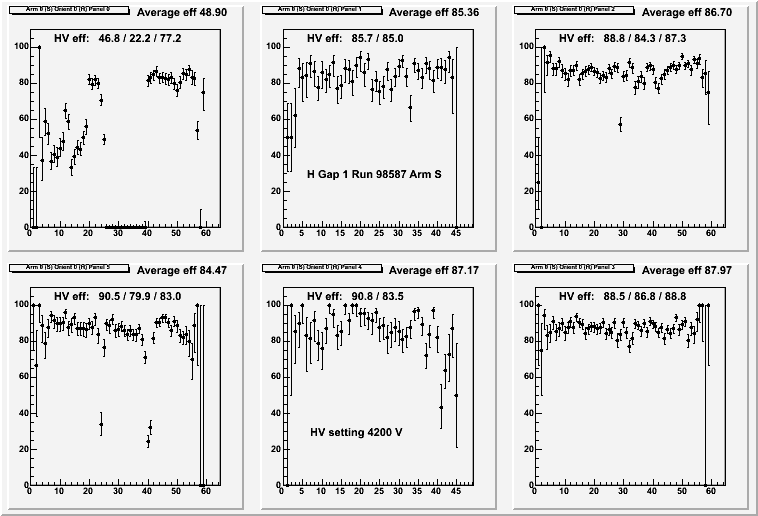

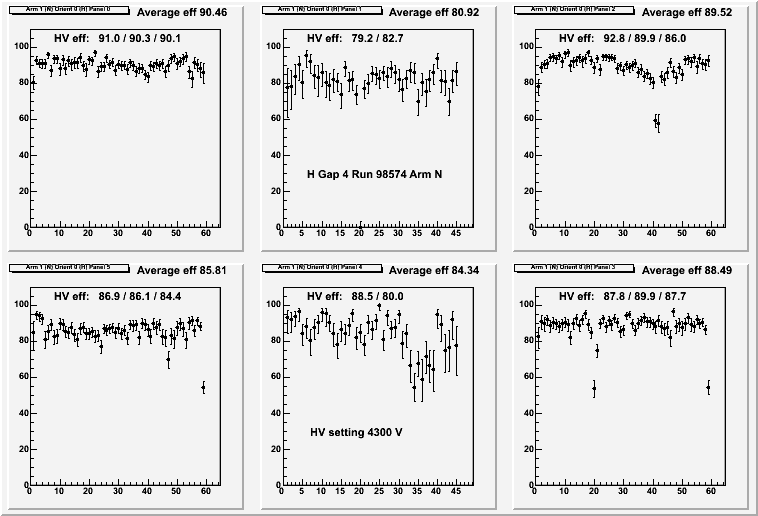

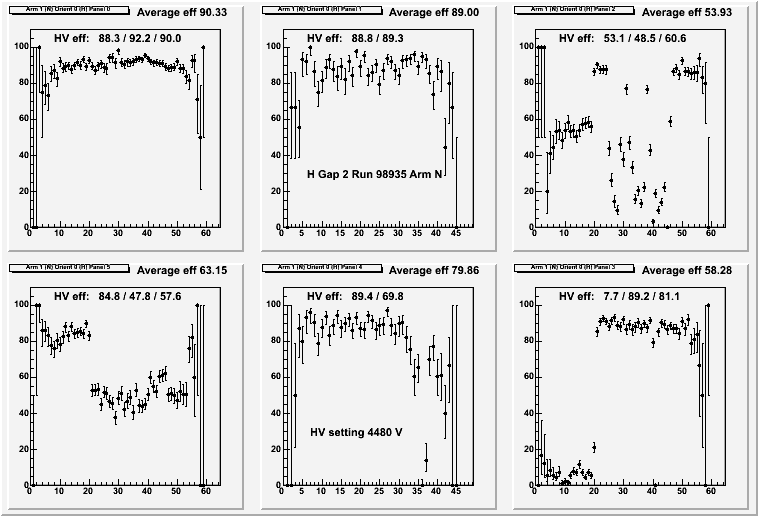

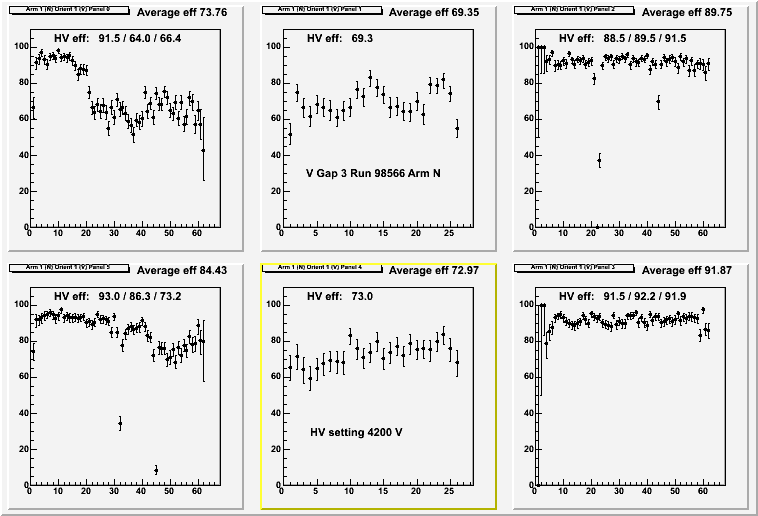

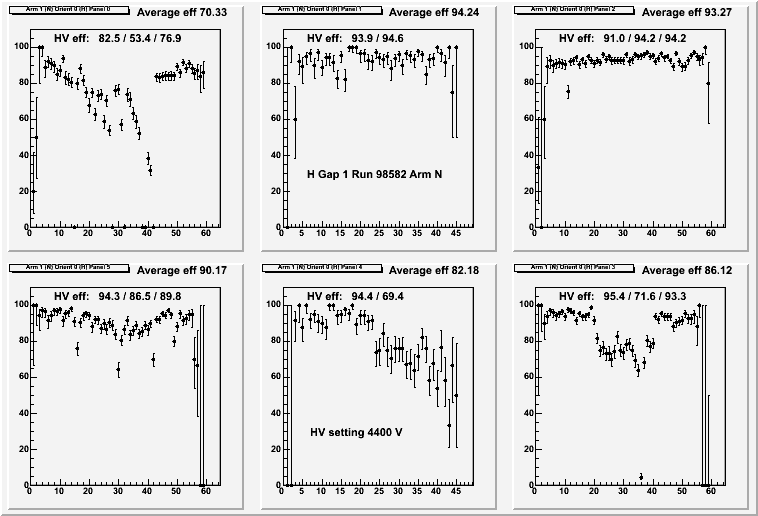

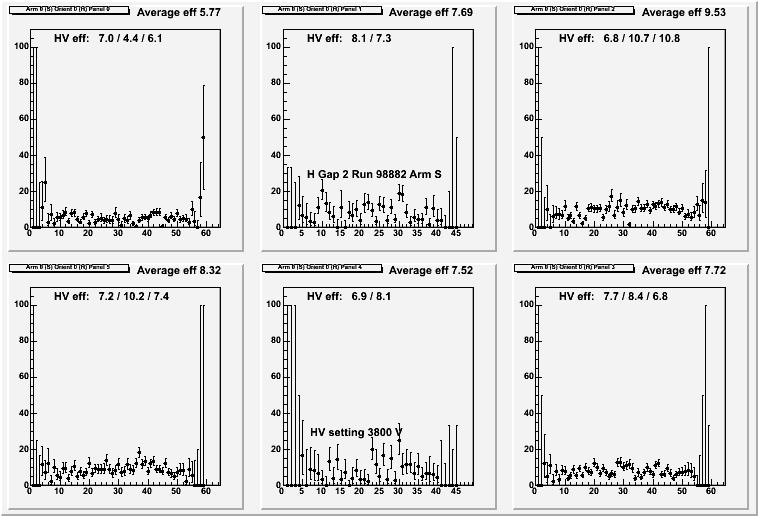

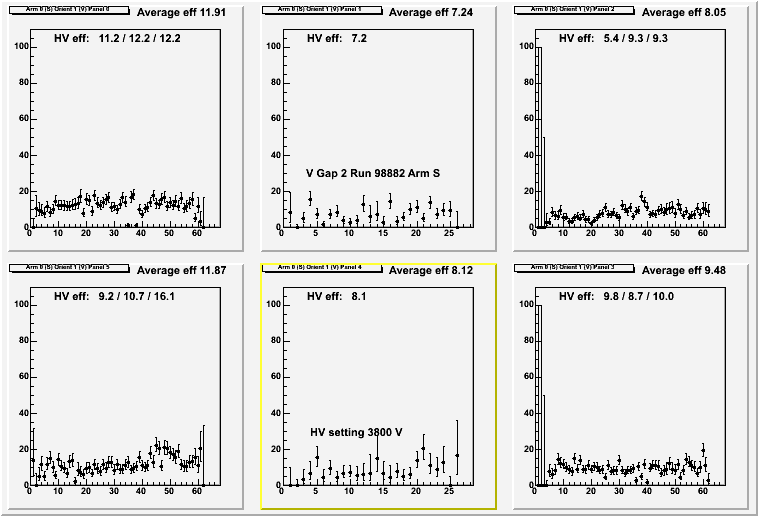

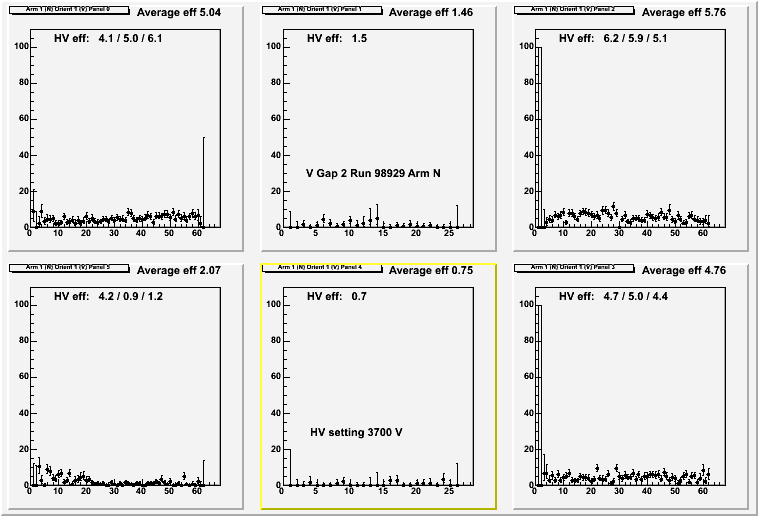

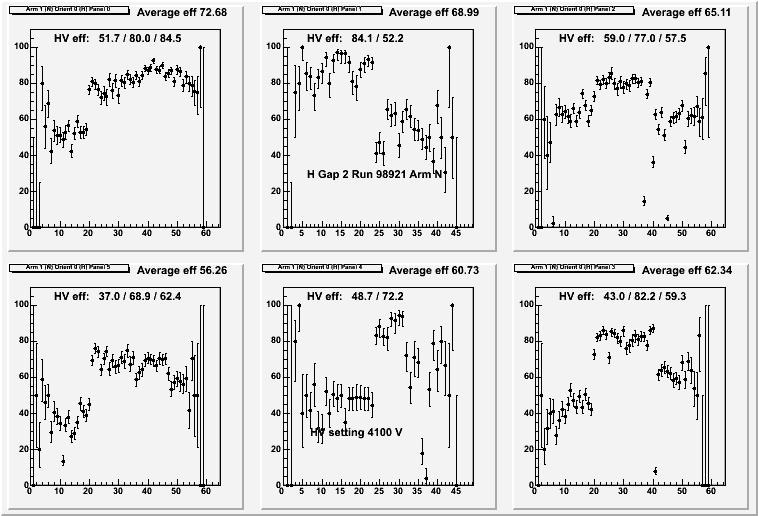

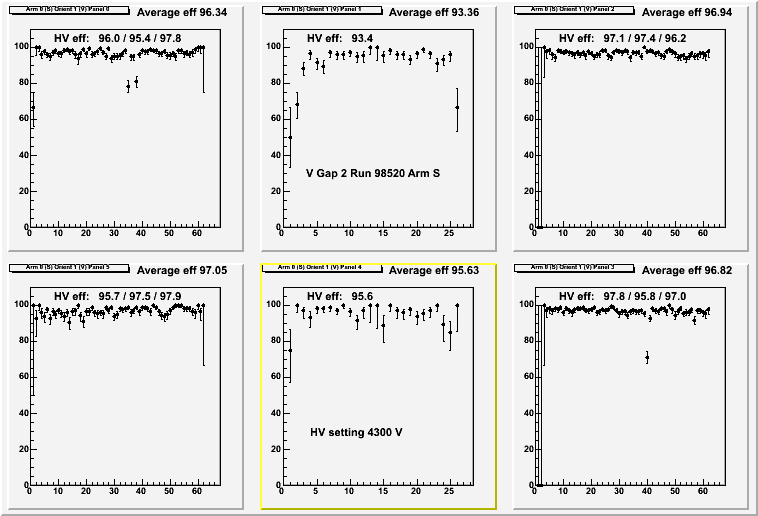

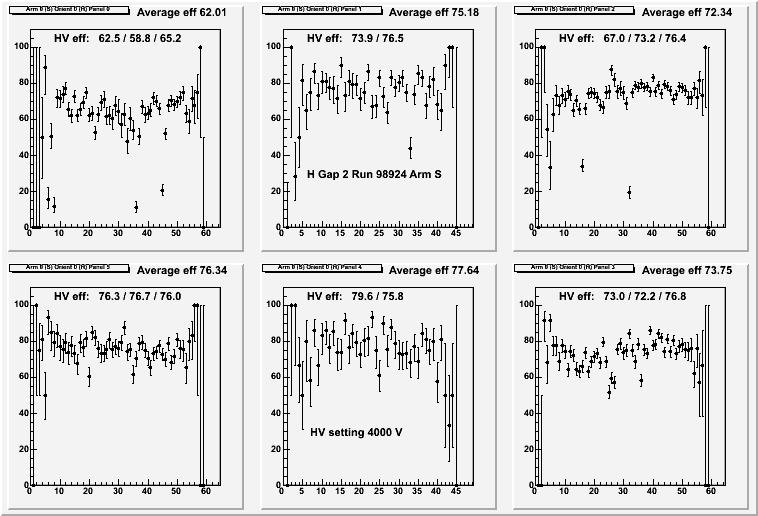

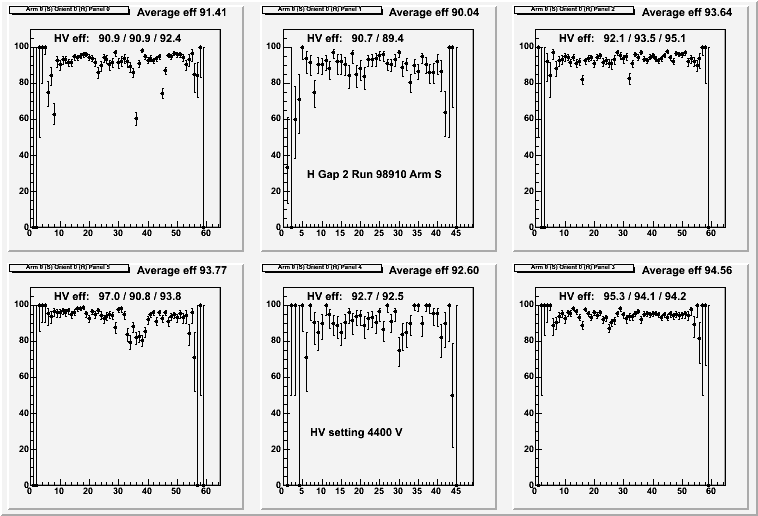

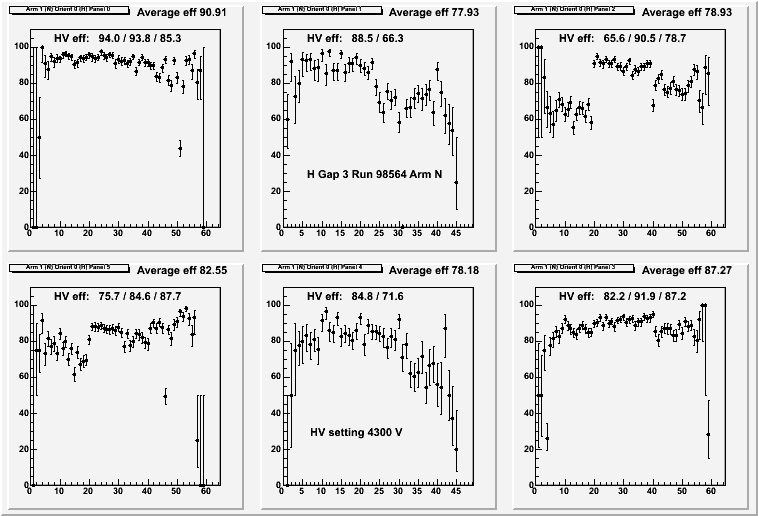

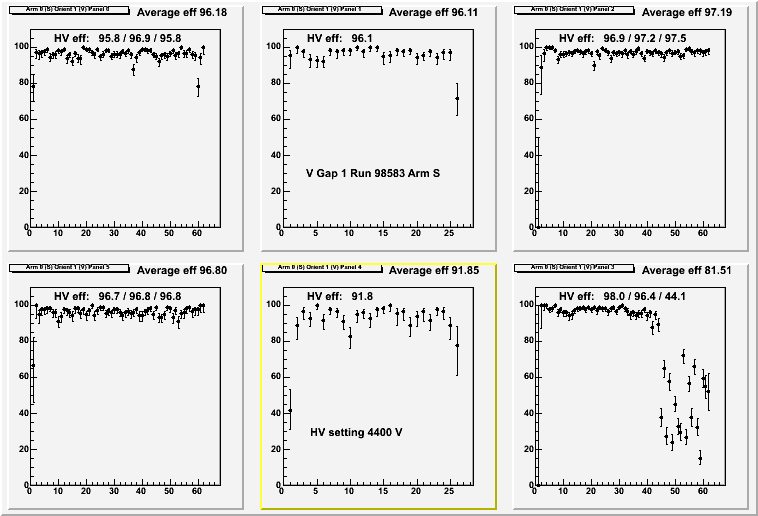

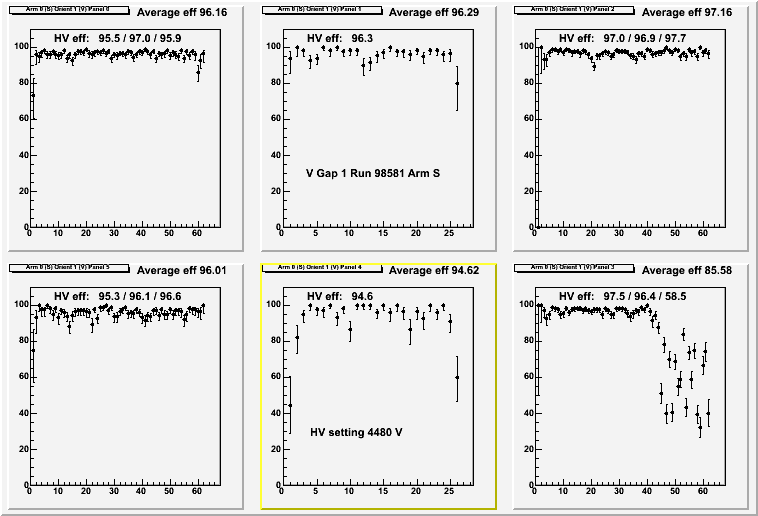

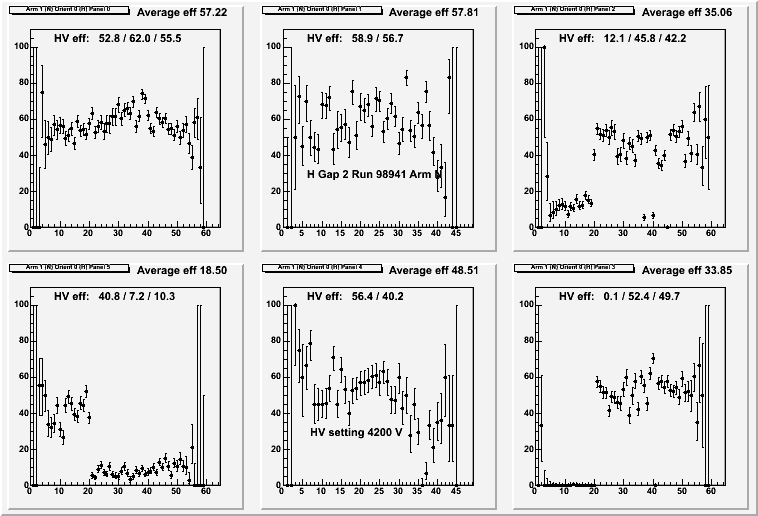

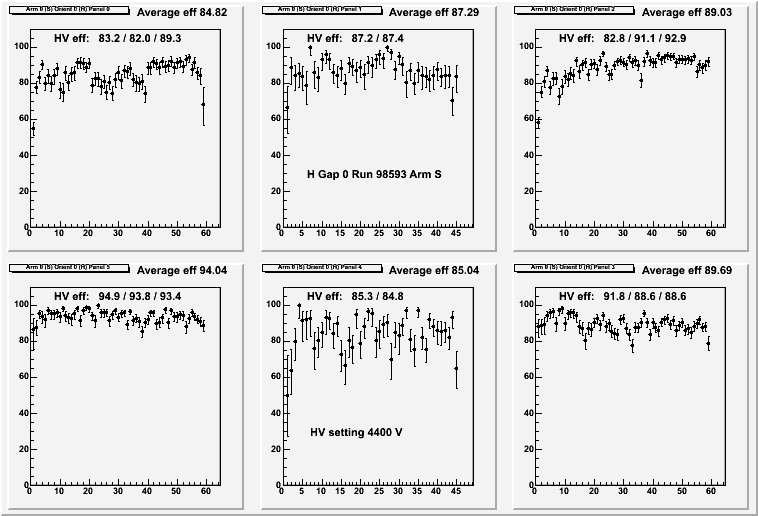

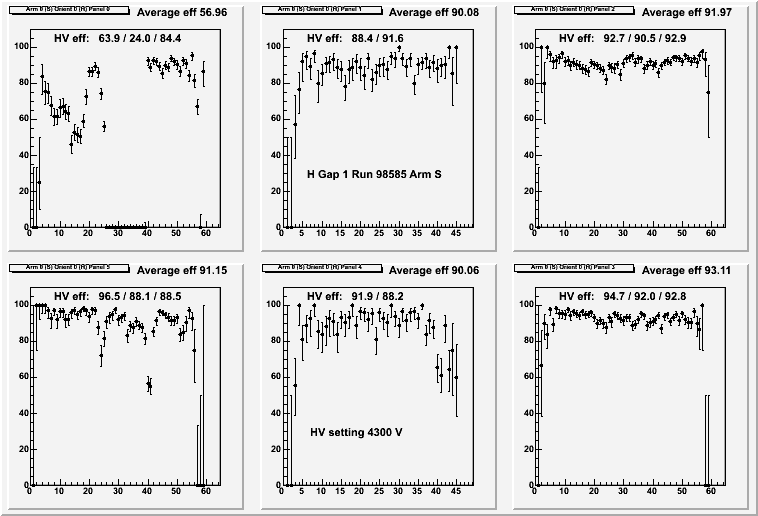

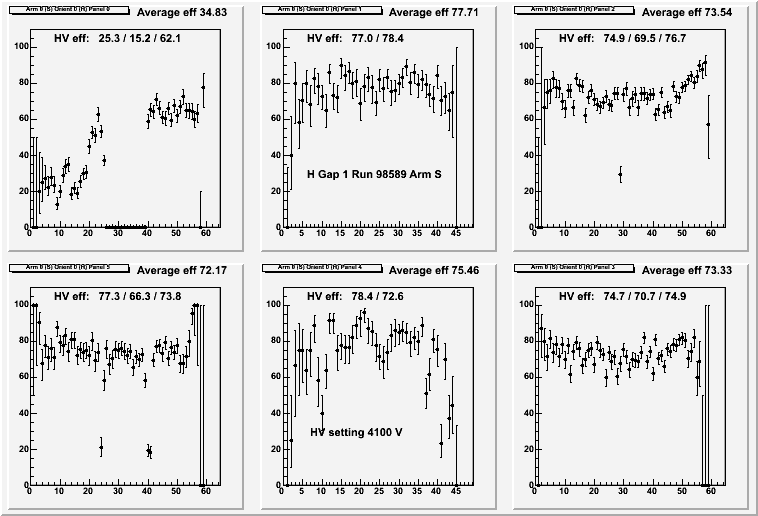

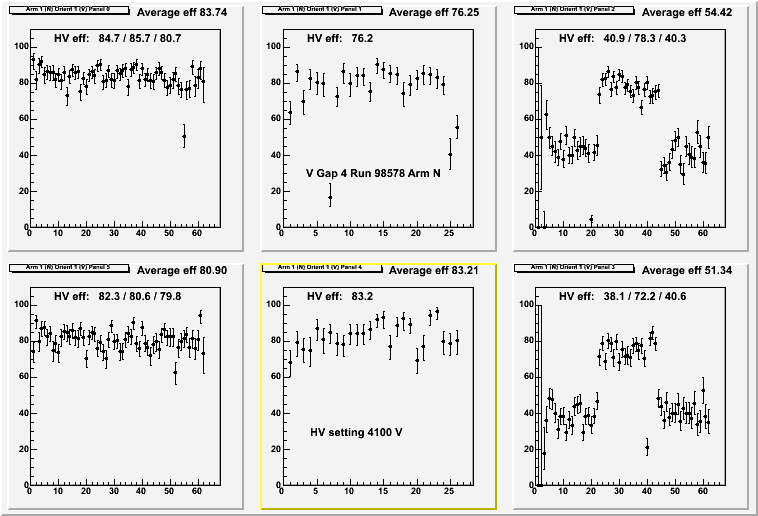

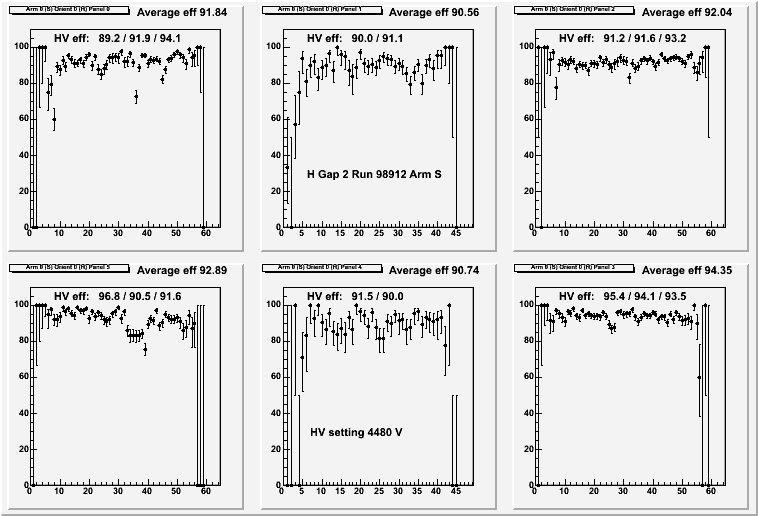

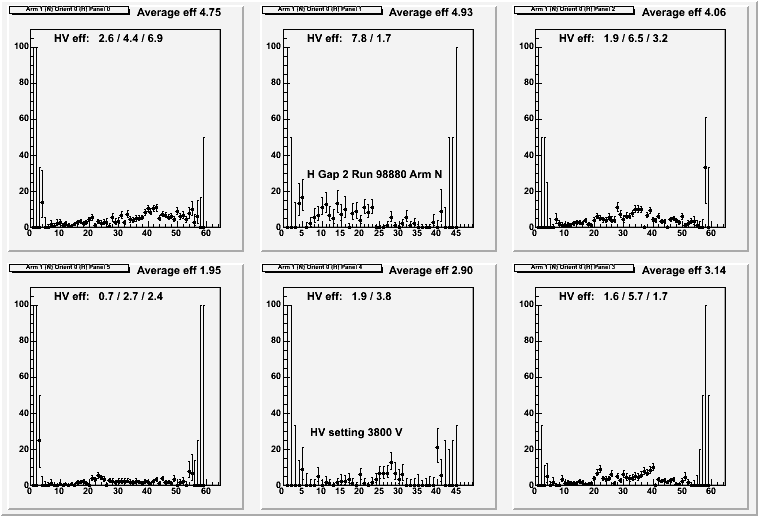

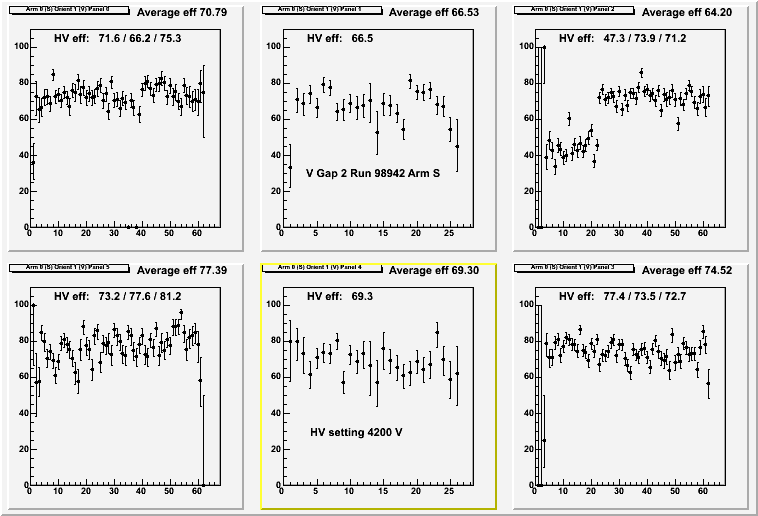

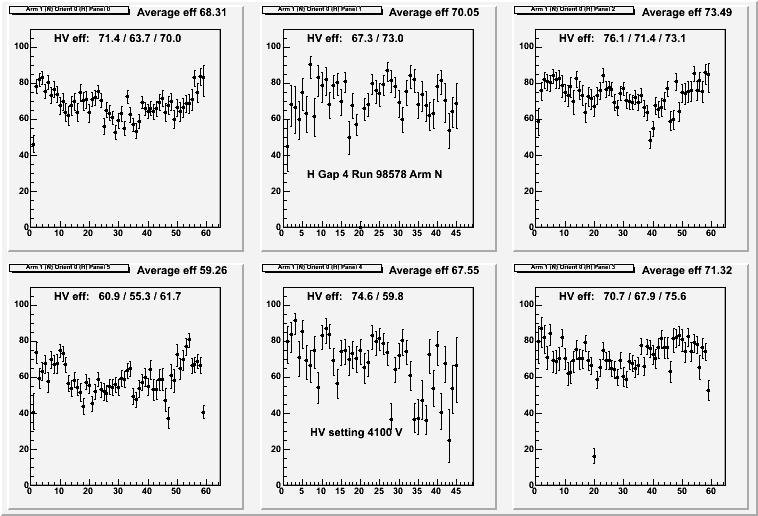

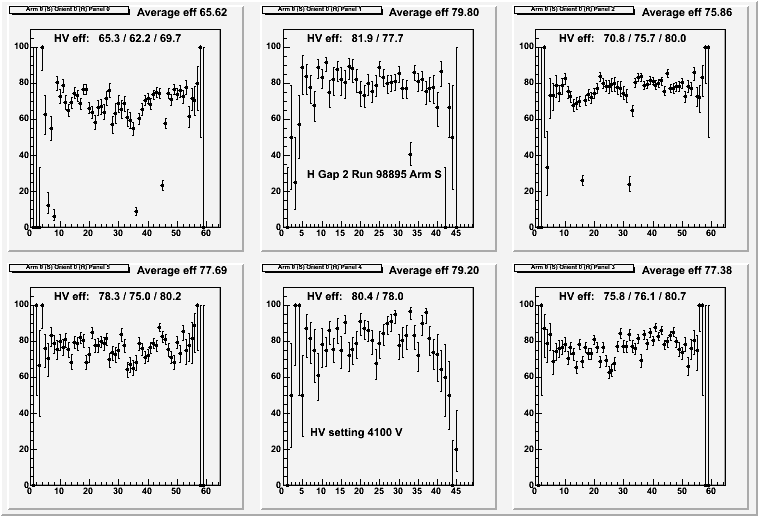

-Gif-Eff: plots of estimated efficiency for studied gap; Horizontal and Vertical plots. The axis are Eff, in percent, vs TwoPack.
-Gif-TwoPack: plots of 'activity' for all gaps; Horizontal and Vertical plots. The axis are 'Yield' (number of times fired) vs TwoPack.

Run	Arm	Gap	Gap-HV (V)	Even/Odd	Other-HV (V)	Gap-Vth (mV)	Other-Vth (V)	Gif-Eff	Gif-TwoPack

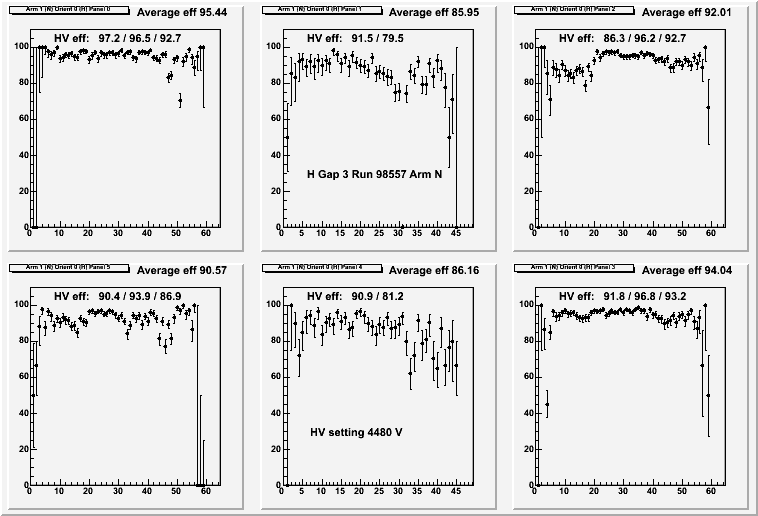

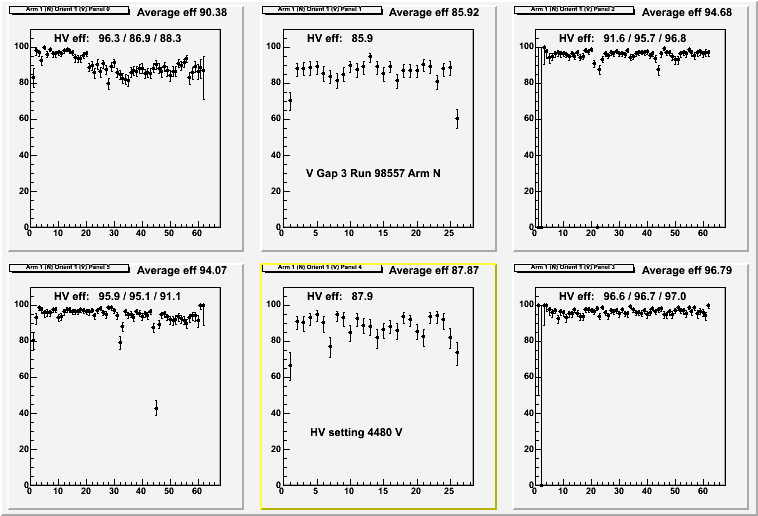

98557	1	3	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

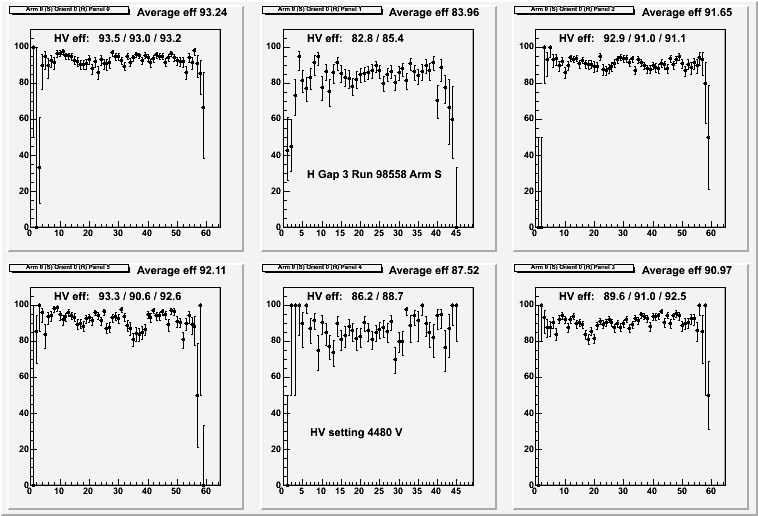

98558	0	3	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

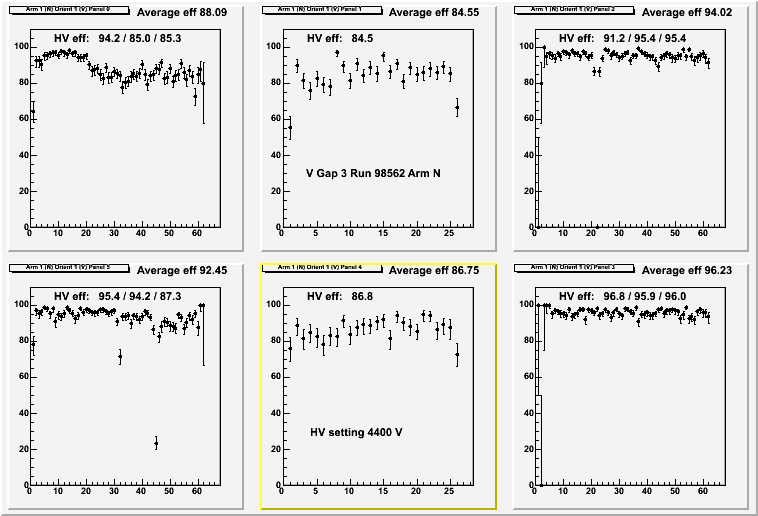

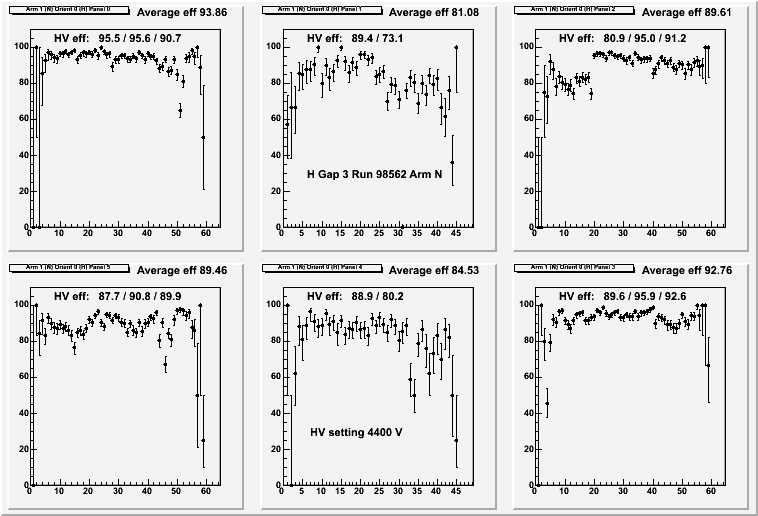

98562	1	3	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

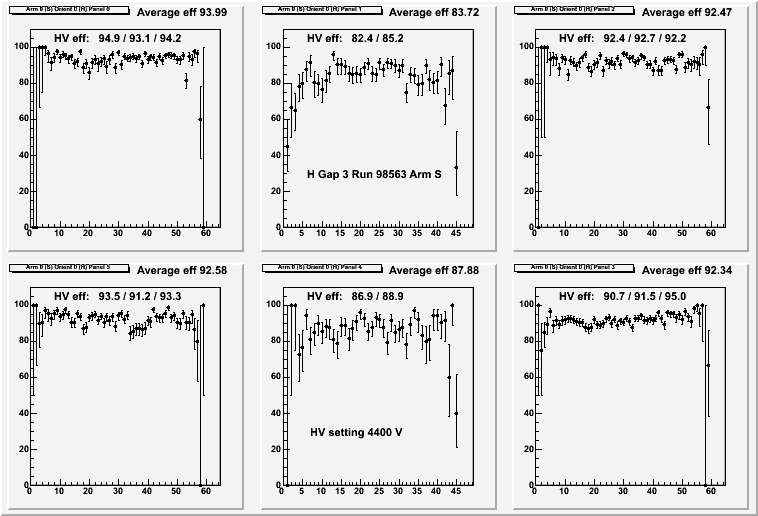

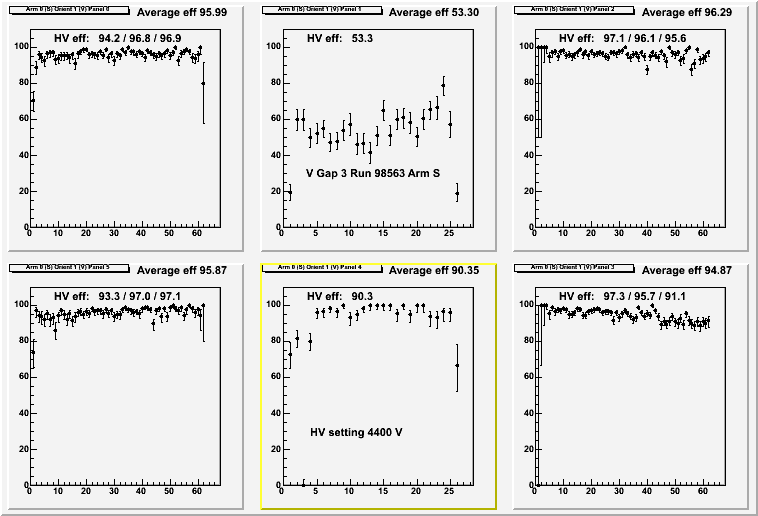

98563	0	3	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

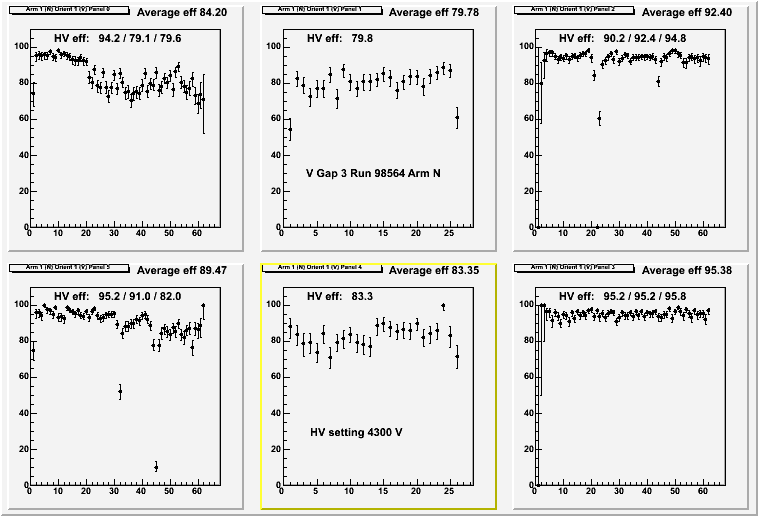

98564	1	3	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

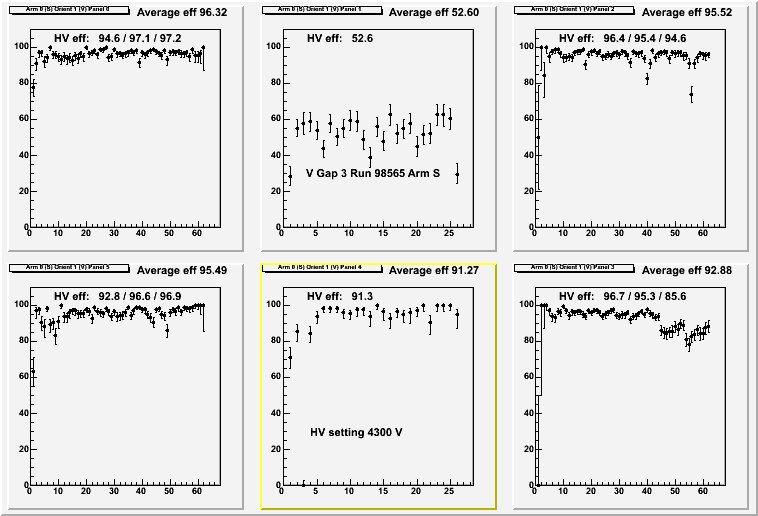

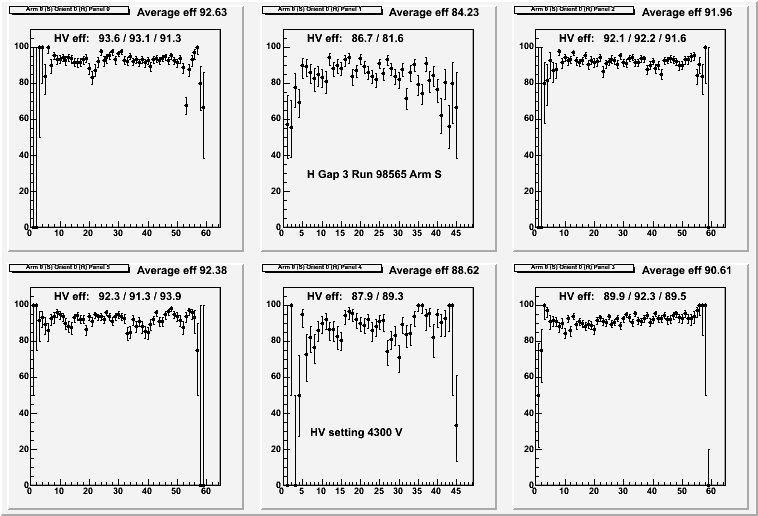

98565	0	3	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

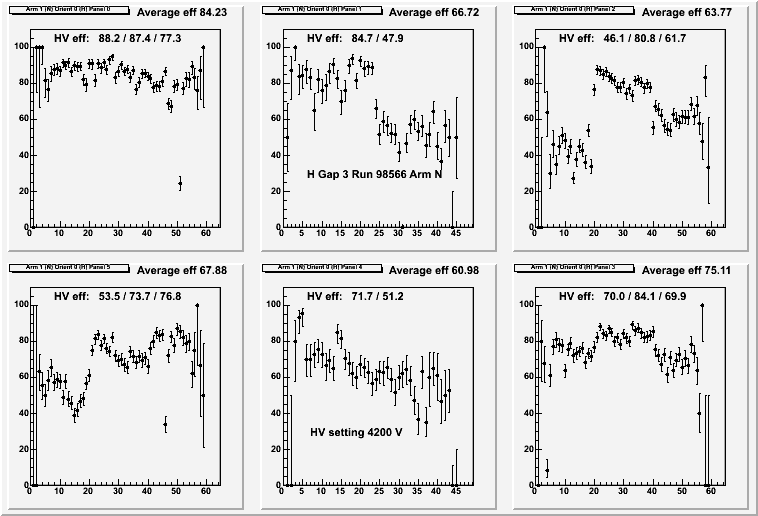

98566	1	3	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

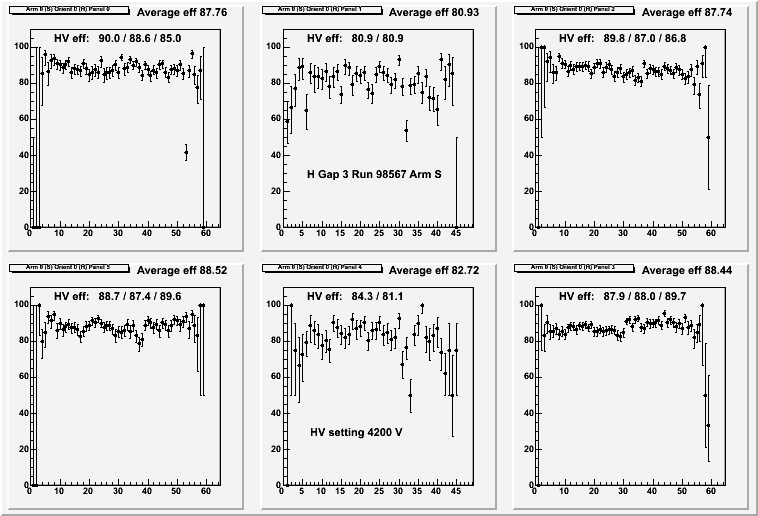

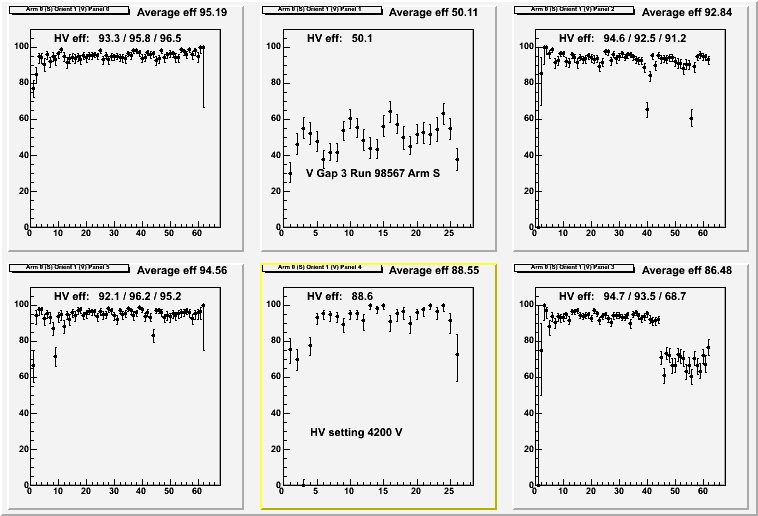

98567	0	3	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

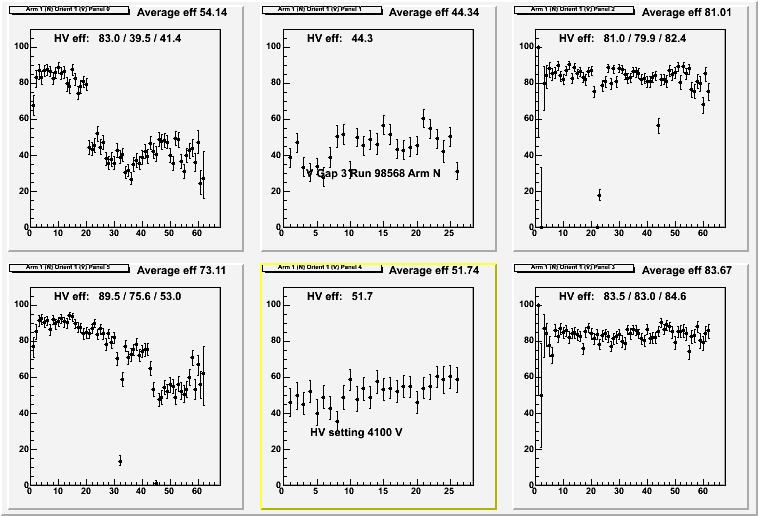

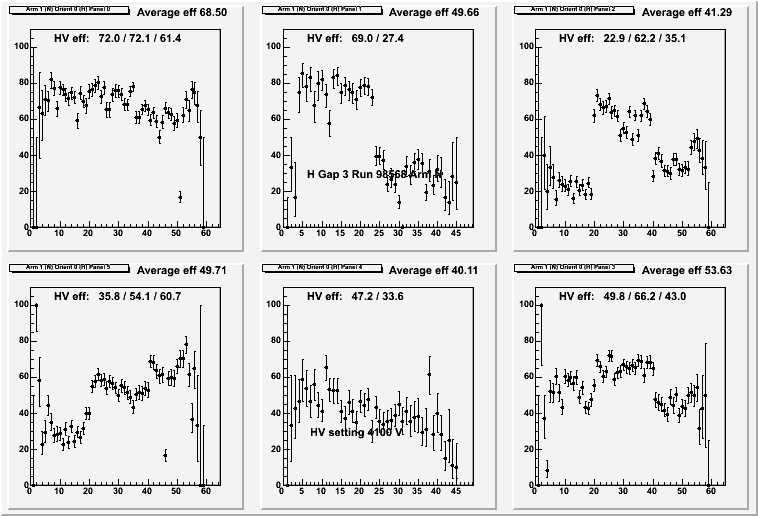

98568	1	3	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

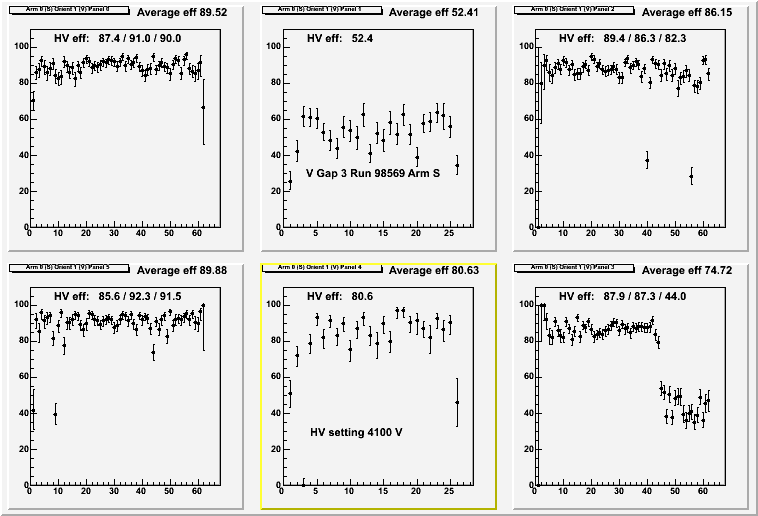

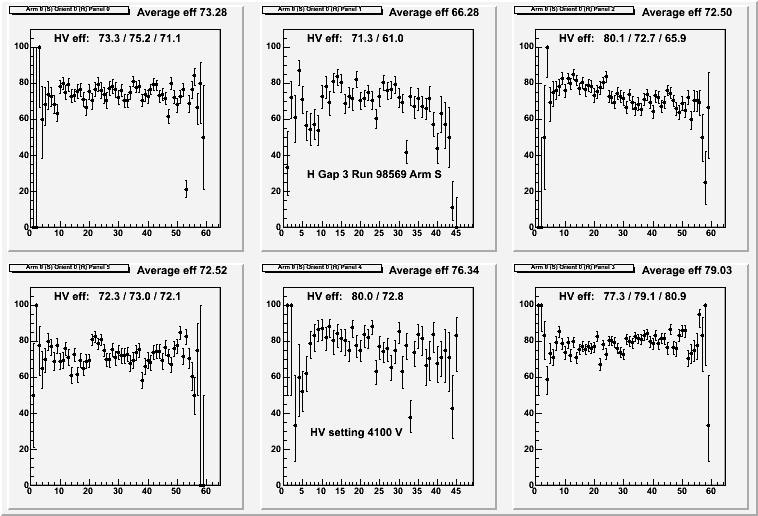

98569	0	3	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

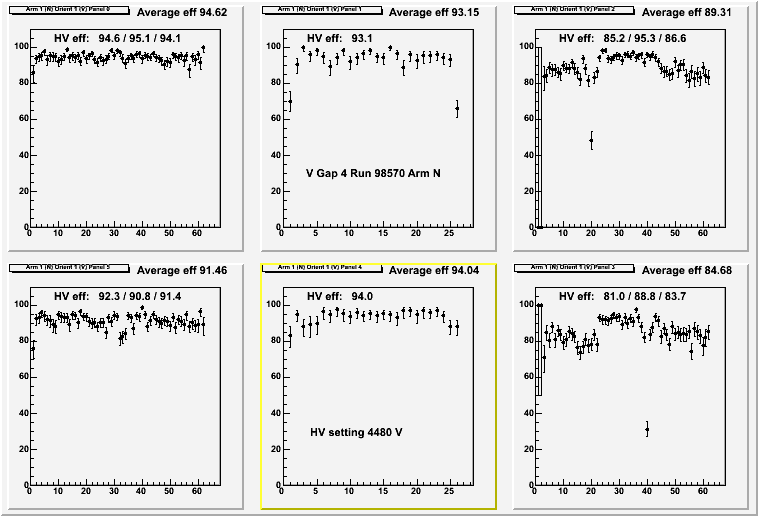

98570	1	4	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

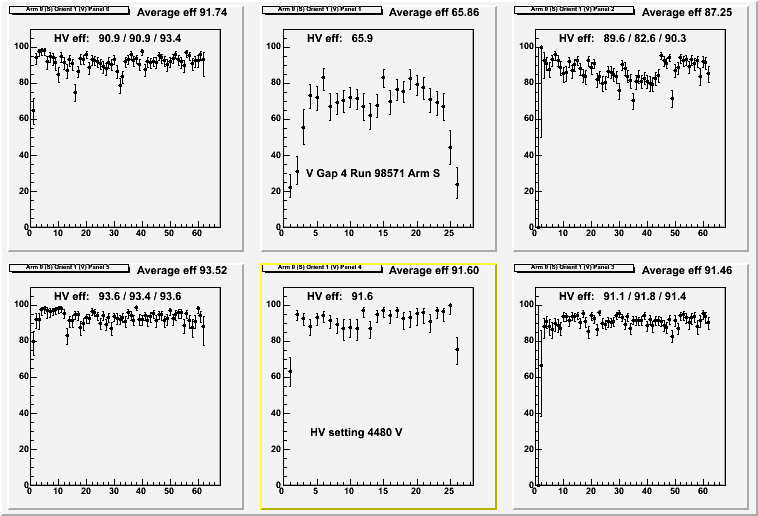

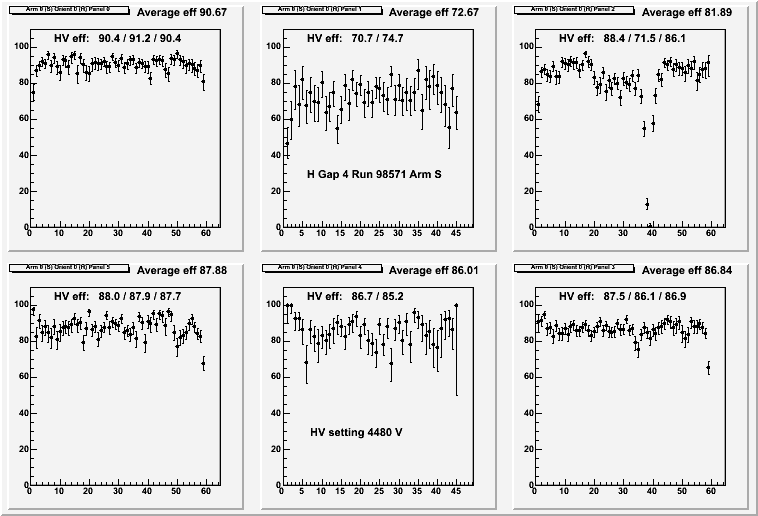

98571	0	4	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

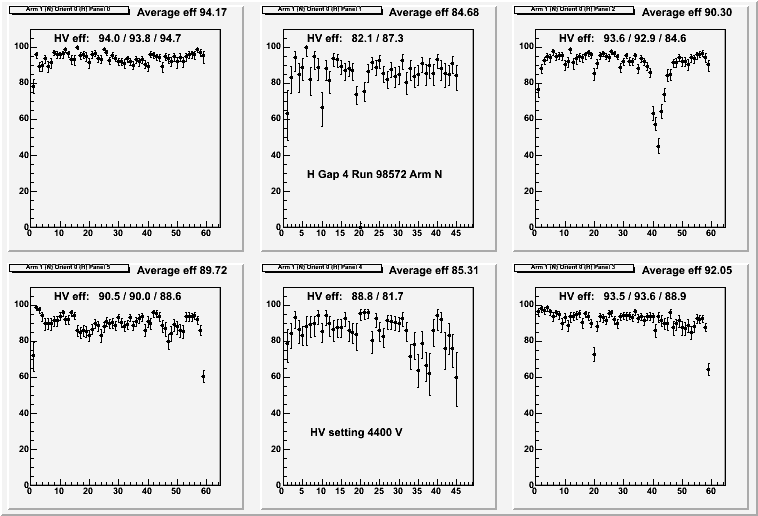

98572	1	4	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

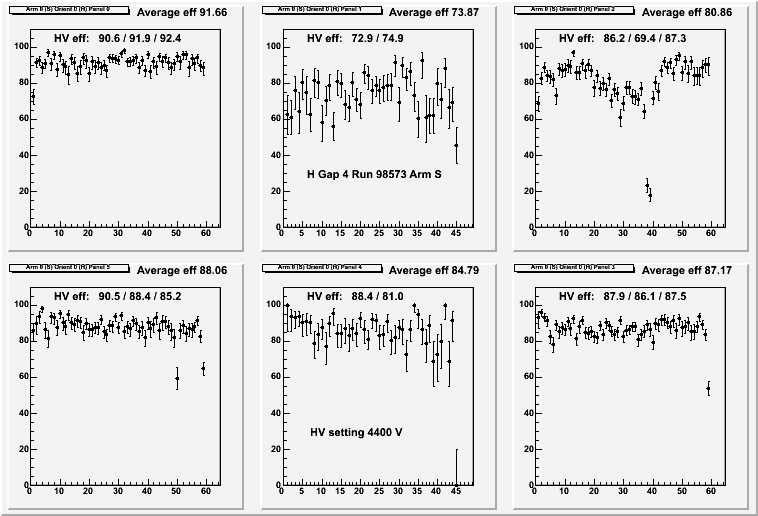

98573	0	4	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

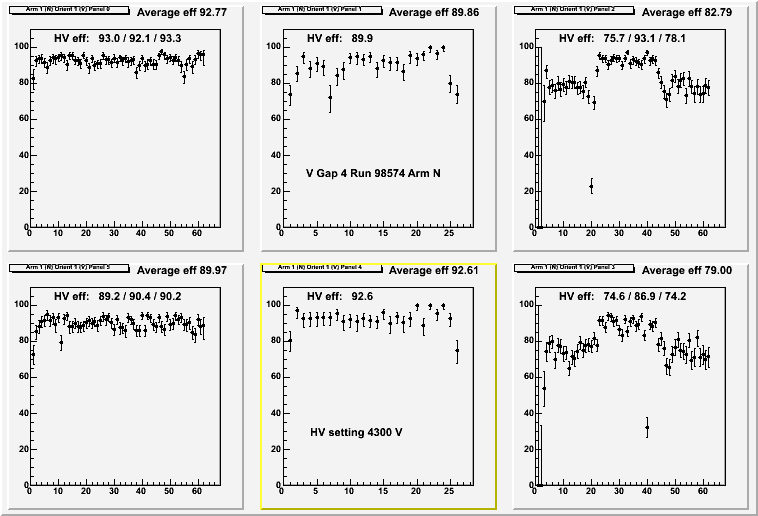

98574	1	4	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98575	0	4	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

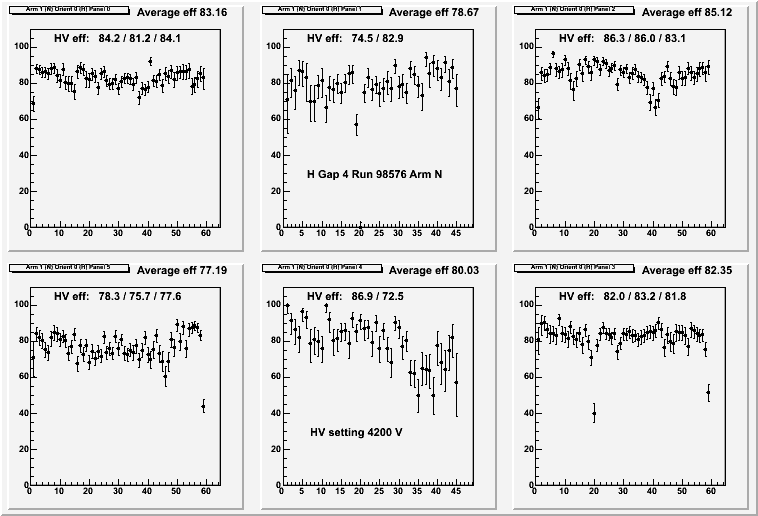

98576	1	4	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98577	0	4	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98578	1	4	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

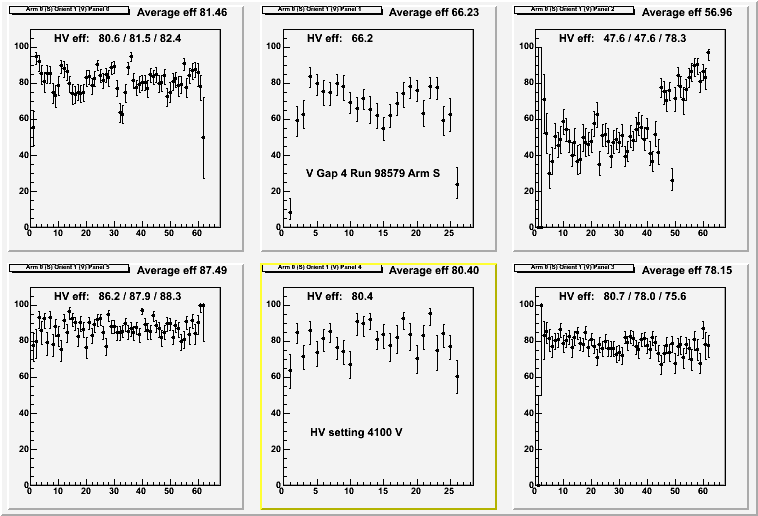

98579	0	4	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

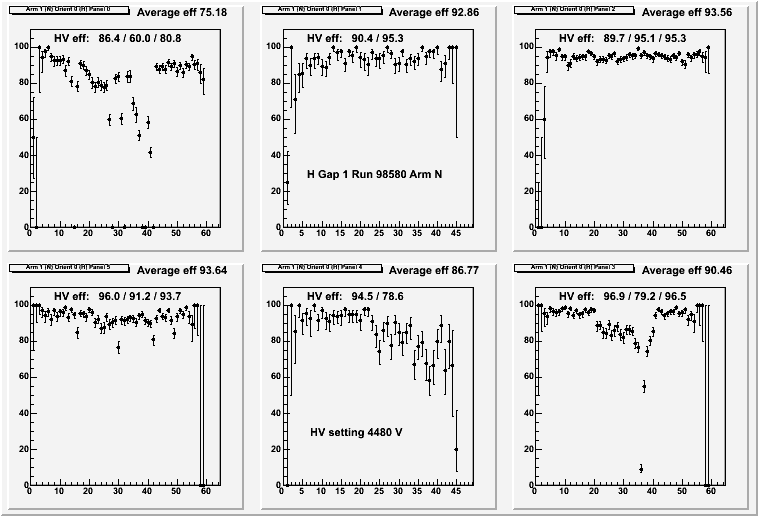

98580	1	1	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98581	0	1	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

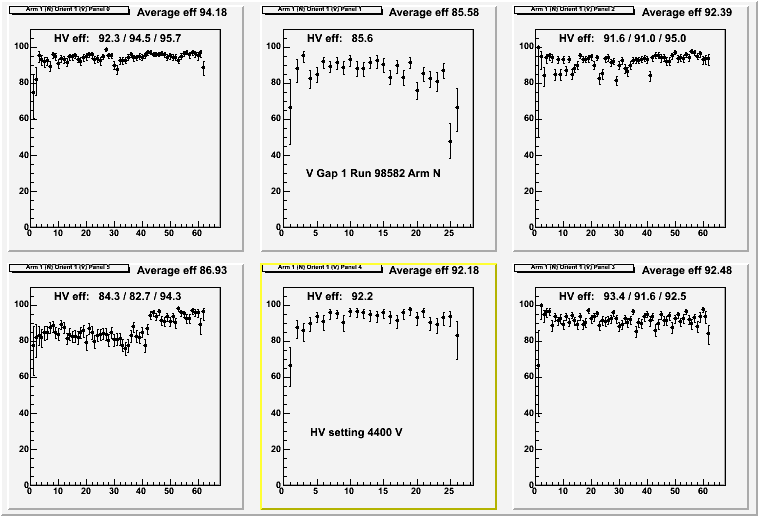

98582	1	1	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

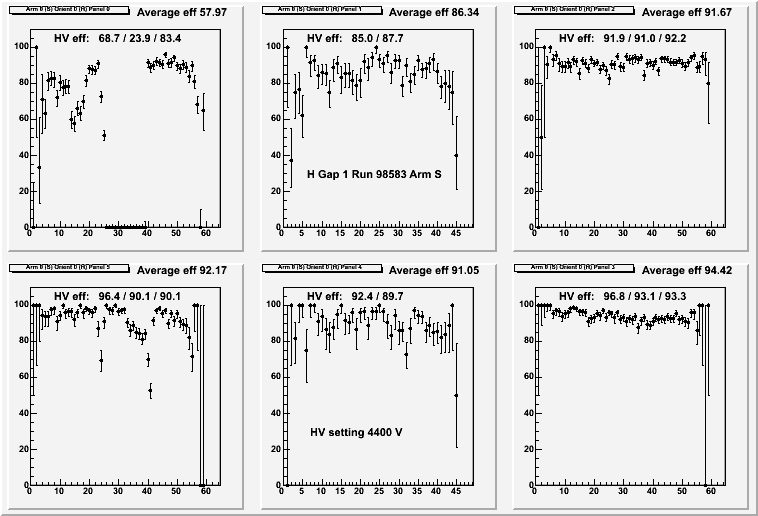

98583	0	1	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

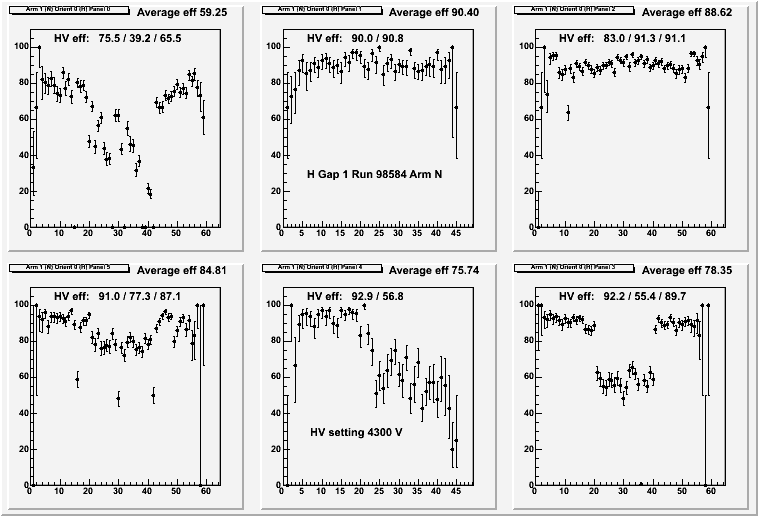

98584	1	1	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98585	0	1	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

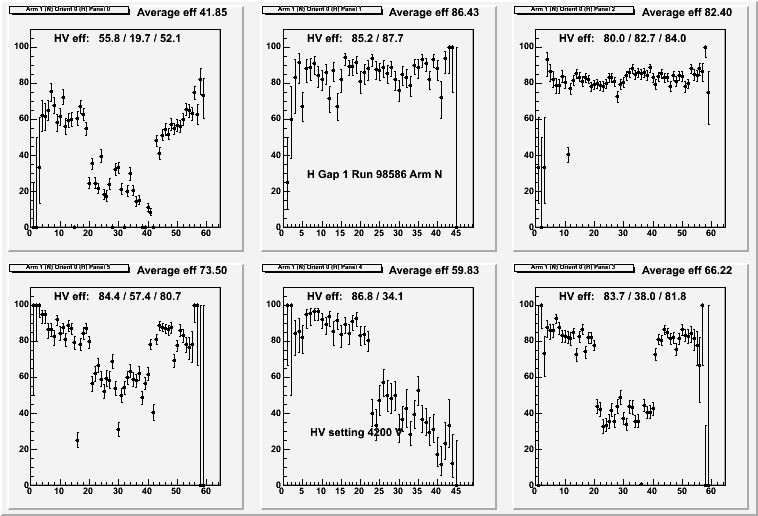

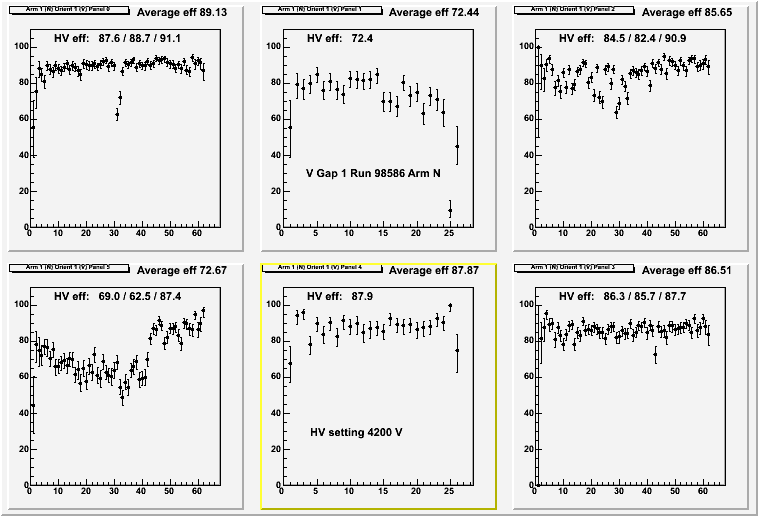

98586	1	1	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

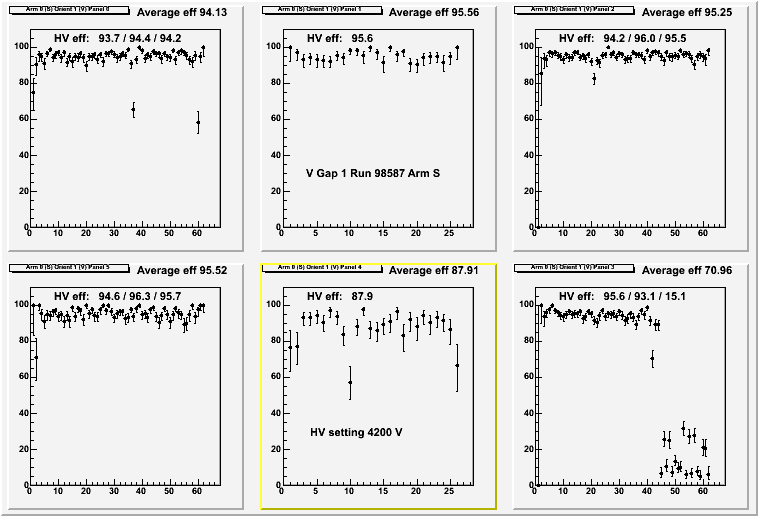

98587	0	1	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

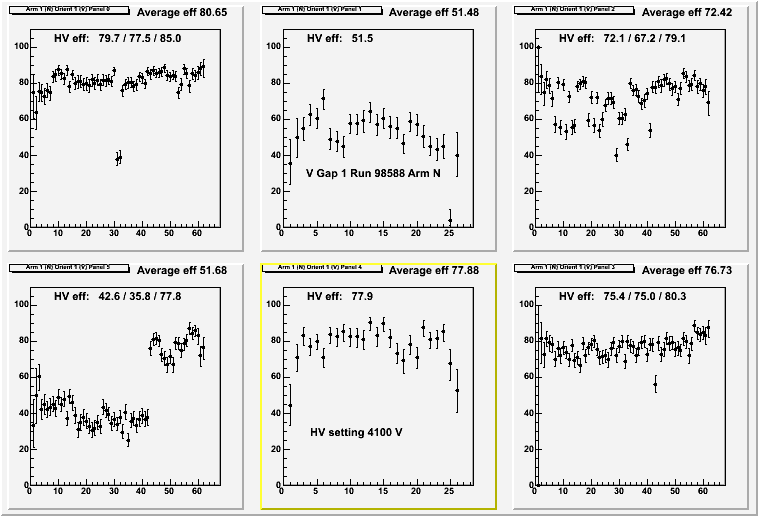

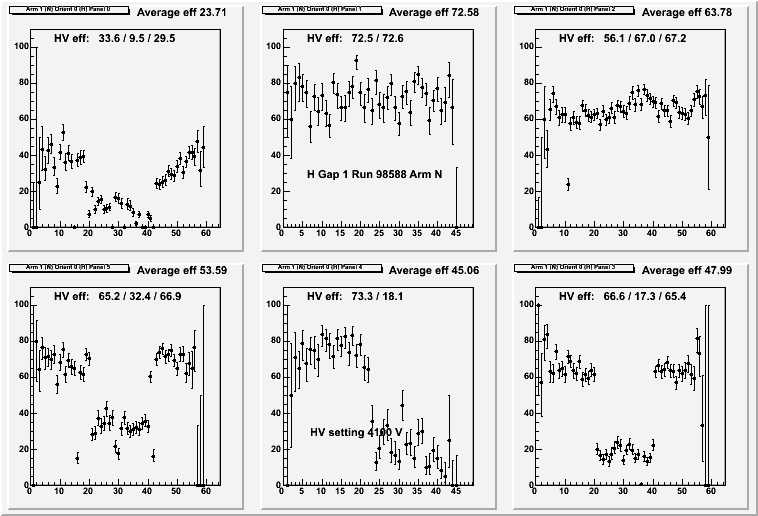

98588	1	1	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

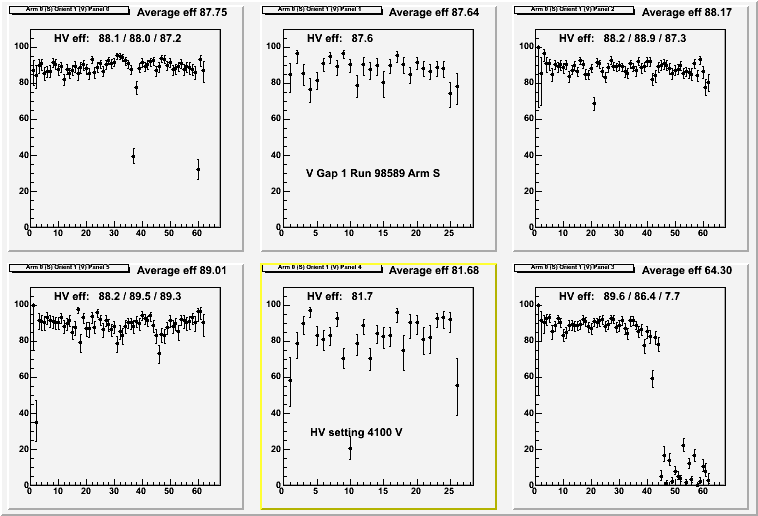

98589	0	1	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

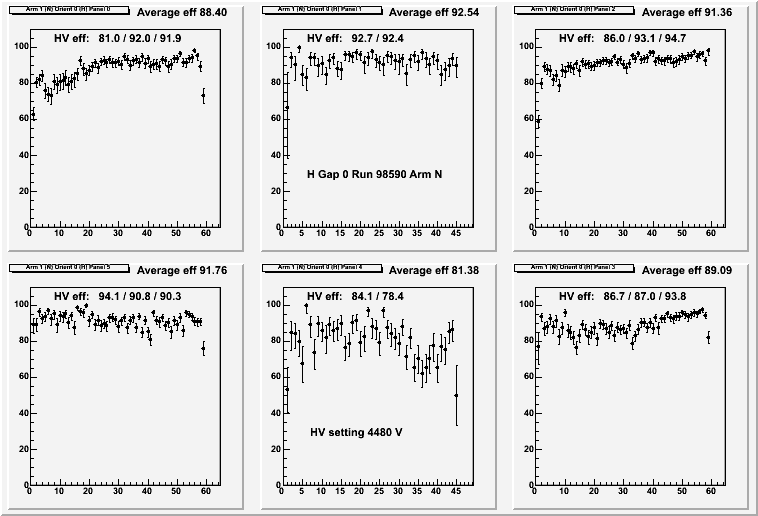

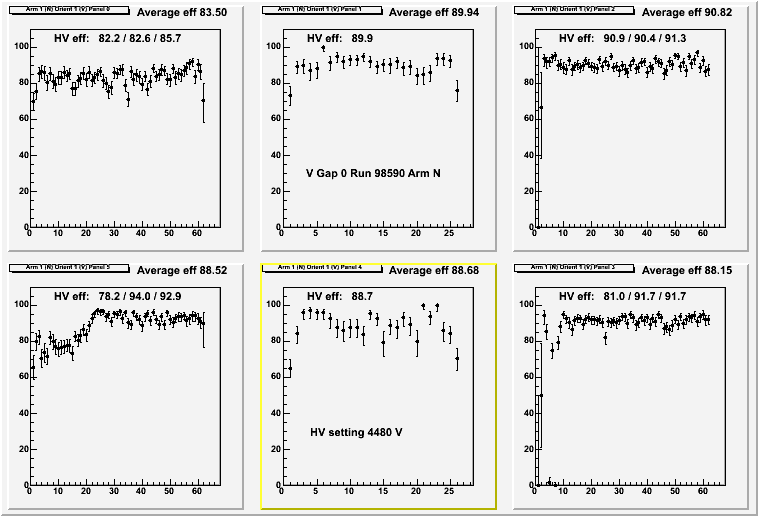

98590	1	0	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

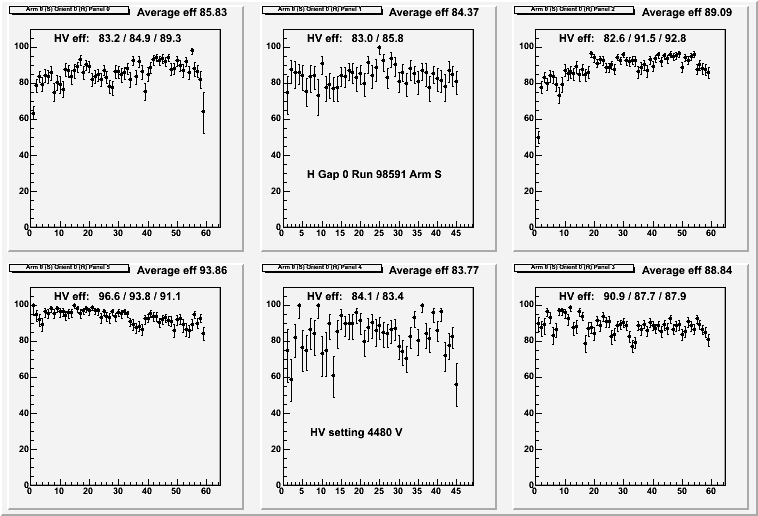

98591	0	0	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

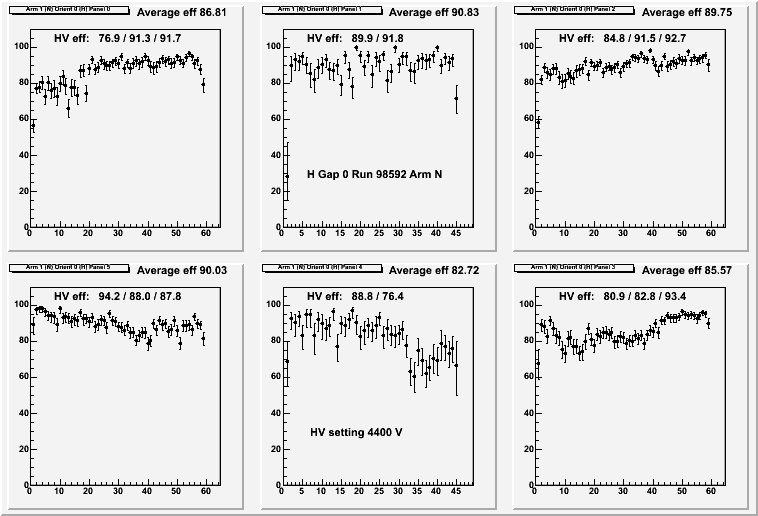

98592	1	0	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98593	0	0	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98594	1	0	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

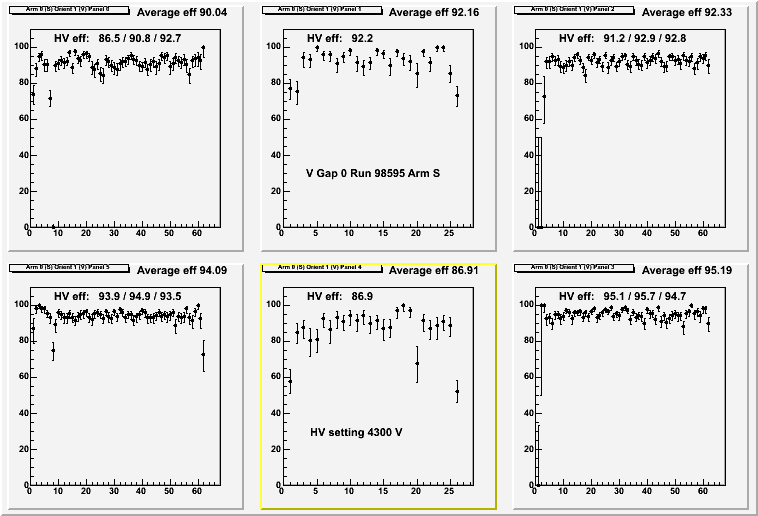

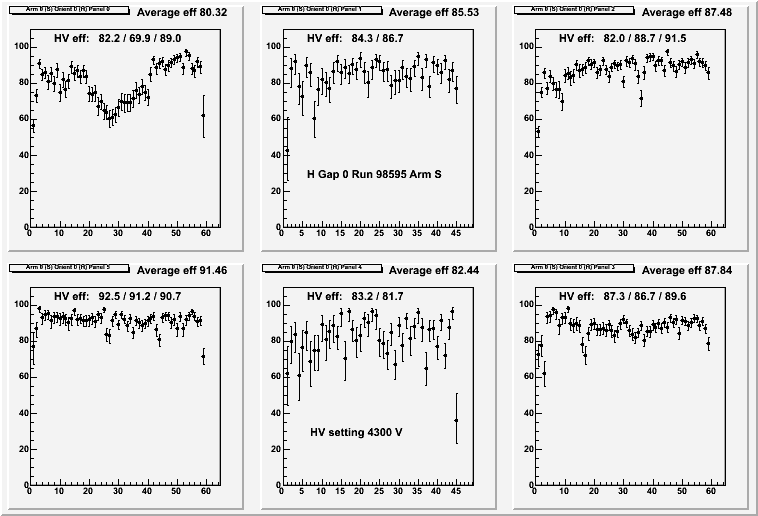

98595	0	0	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

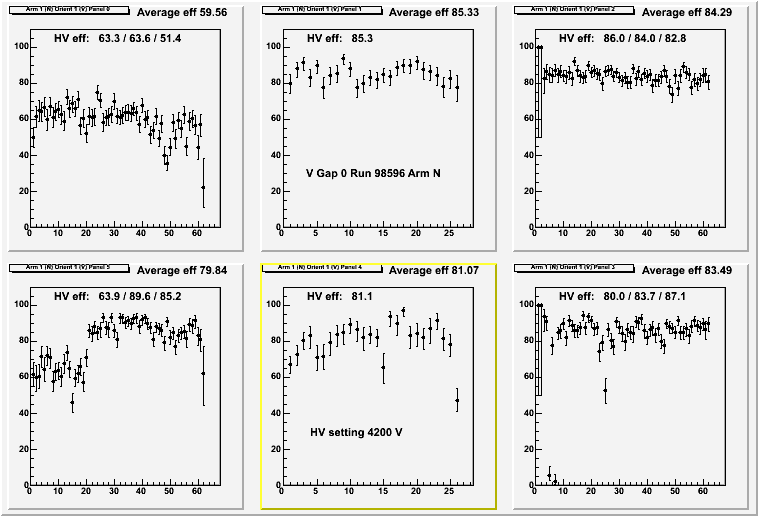

98596	1	0	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

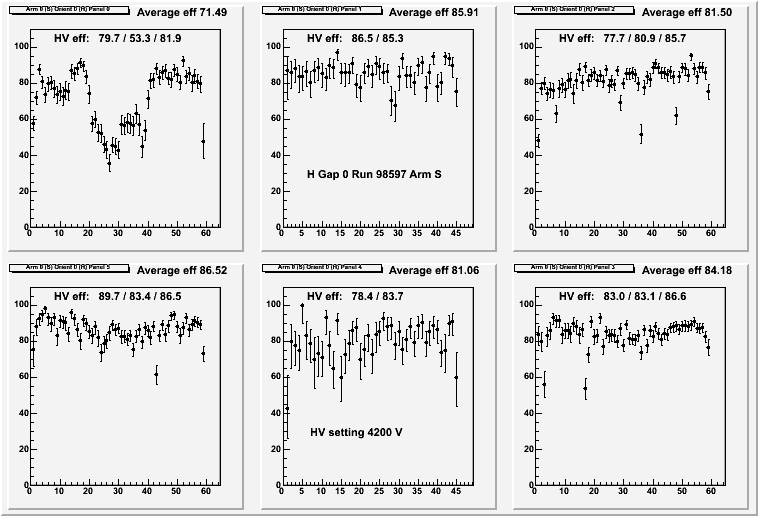

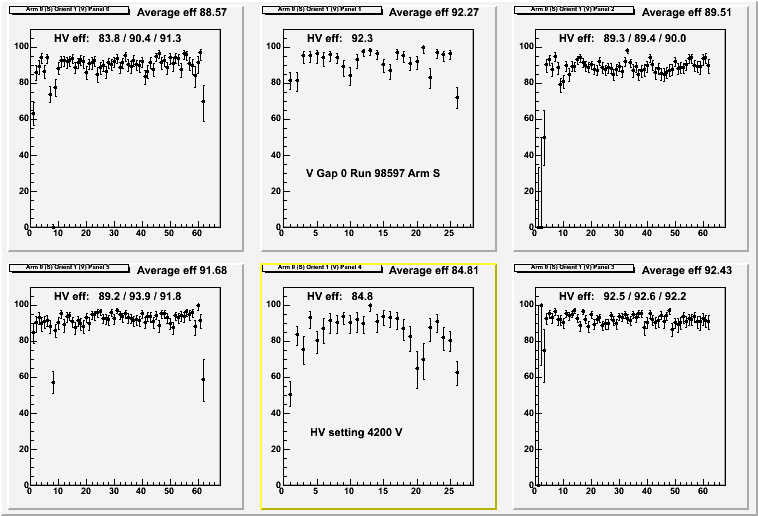

98597	0	0	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

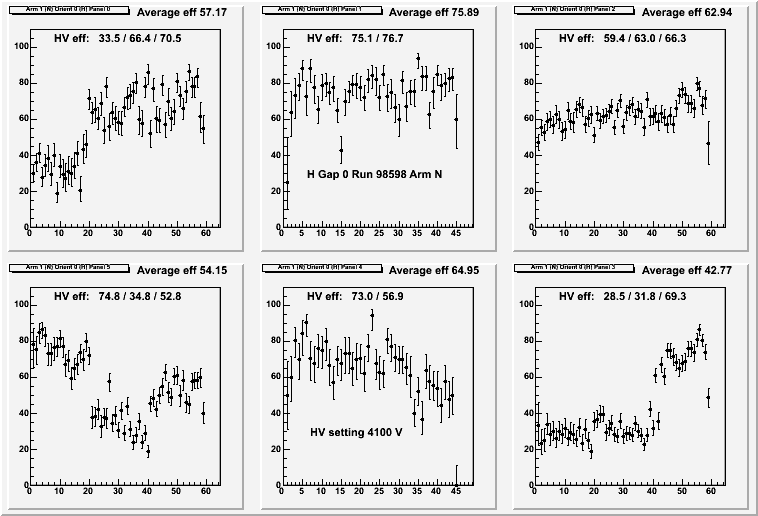

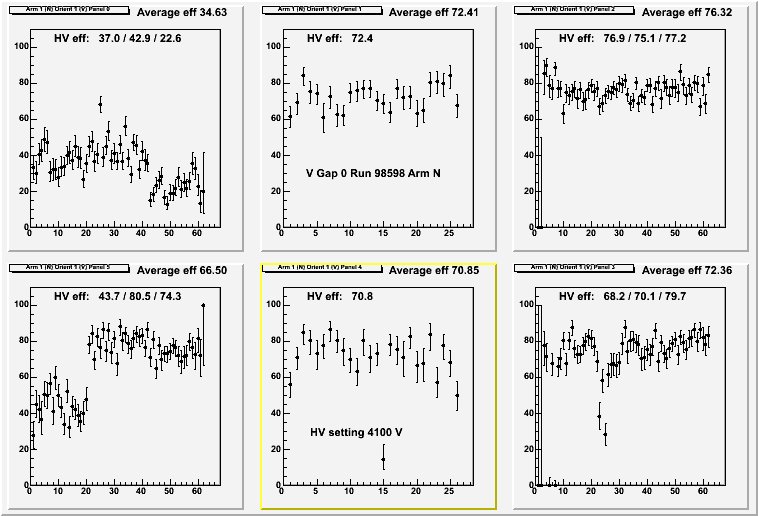

98598	1	0	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

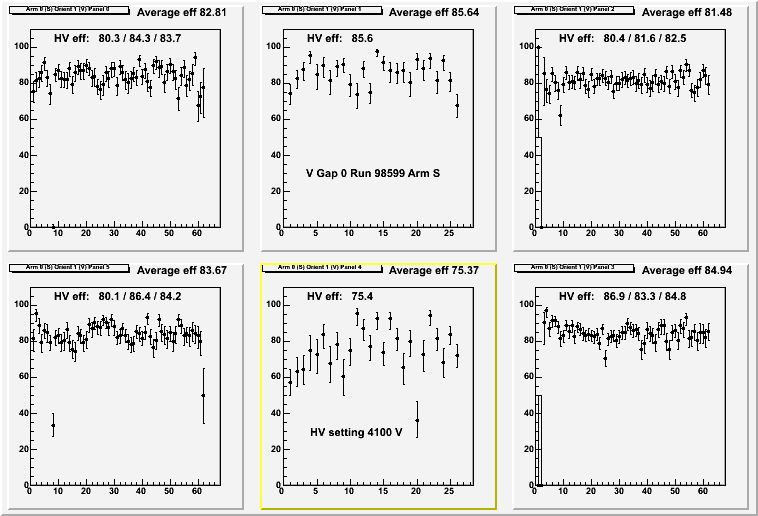

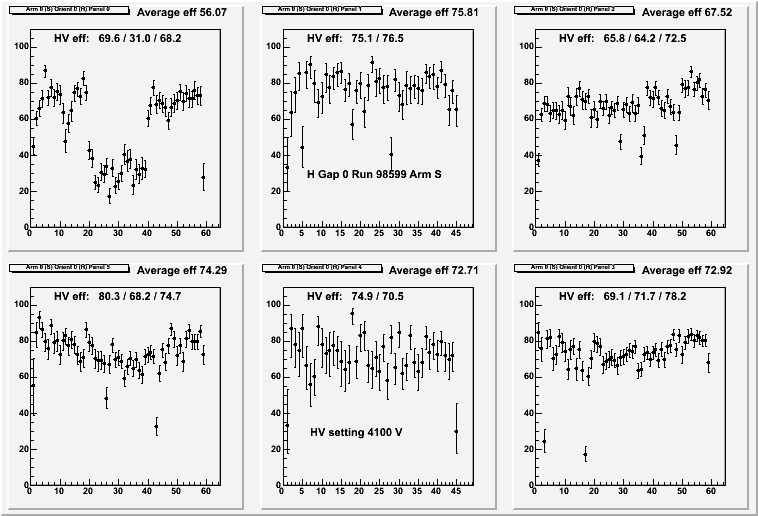

98599	0	0	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

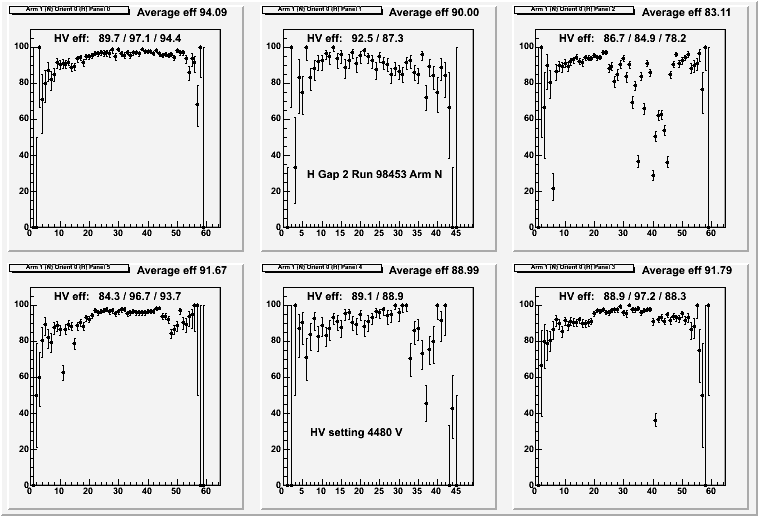

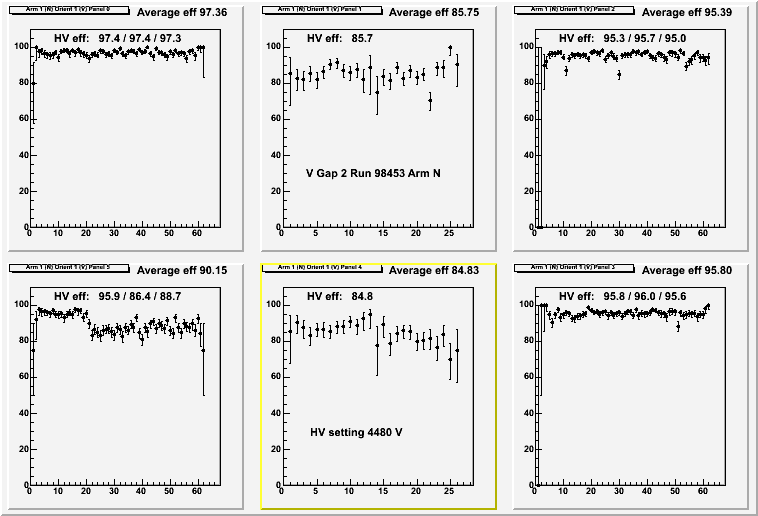

98453	1	2	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

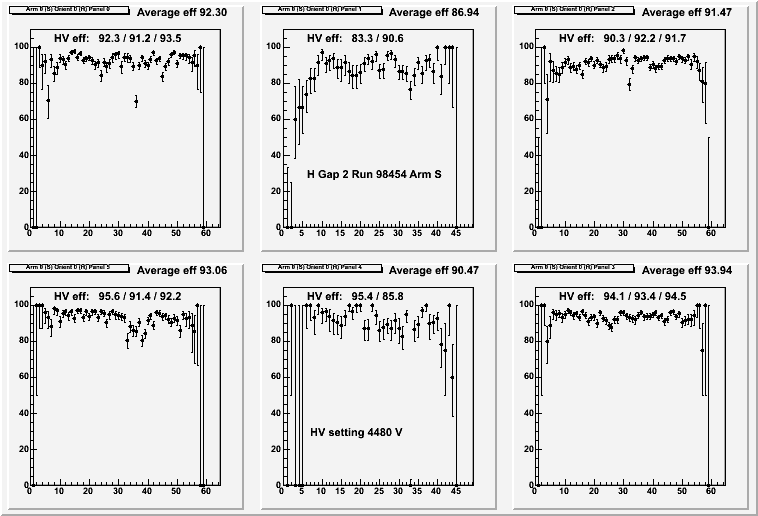

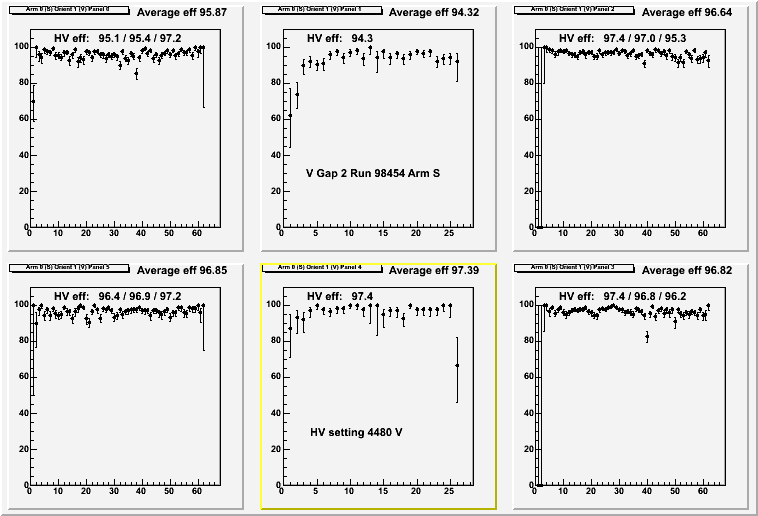

98454	0	2	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

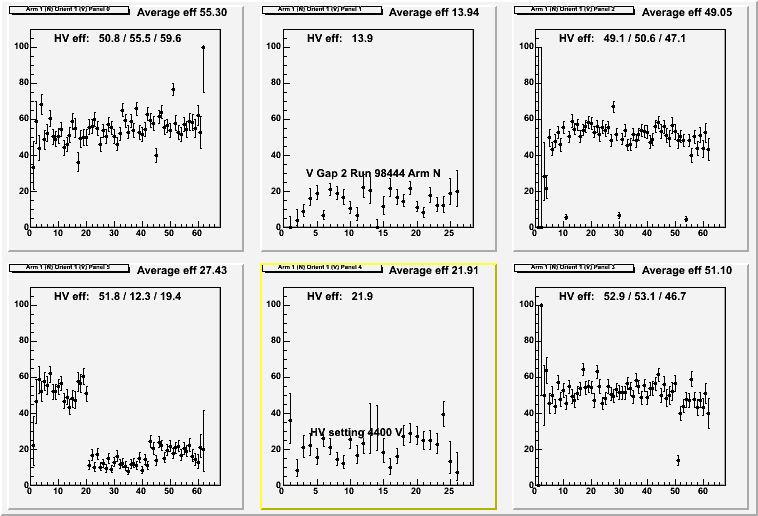

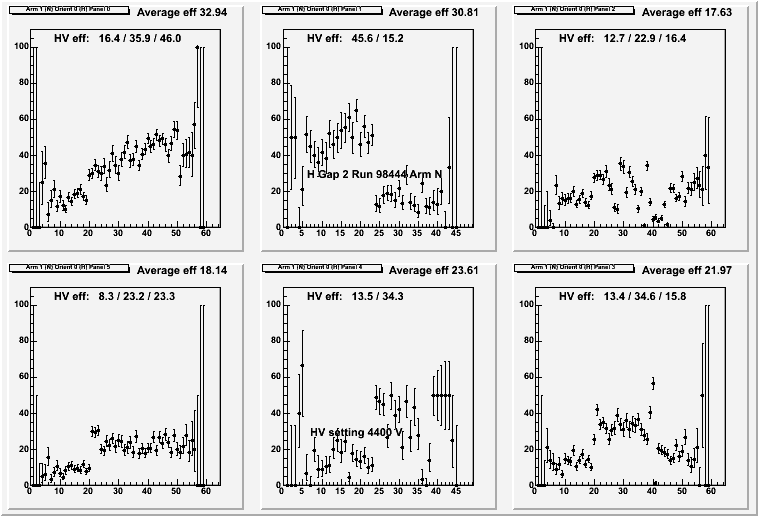

98444	1	2	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

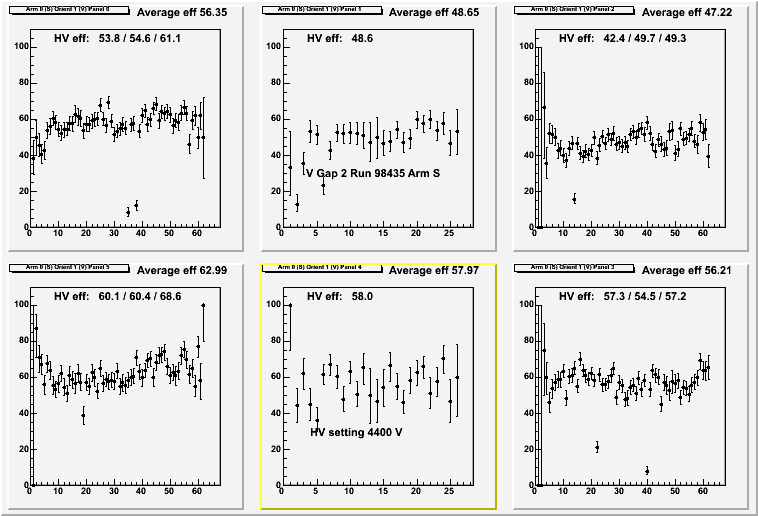

98435	0	2	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98519	1	2	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

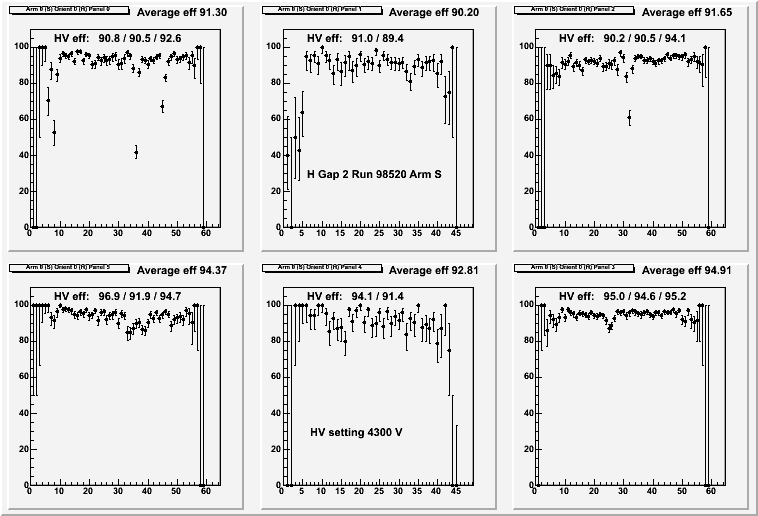

98520	0	2	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

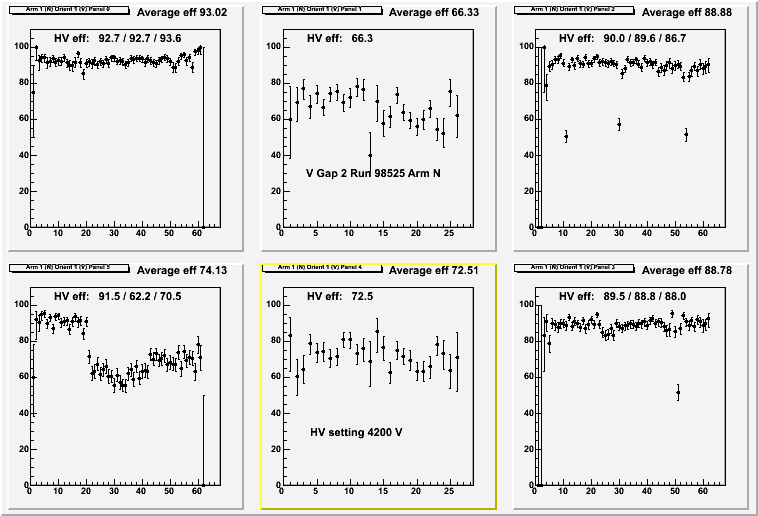

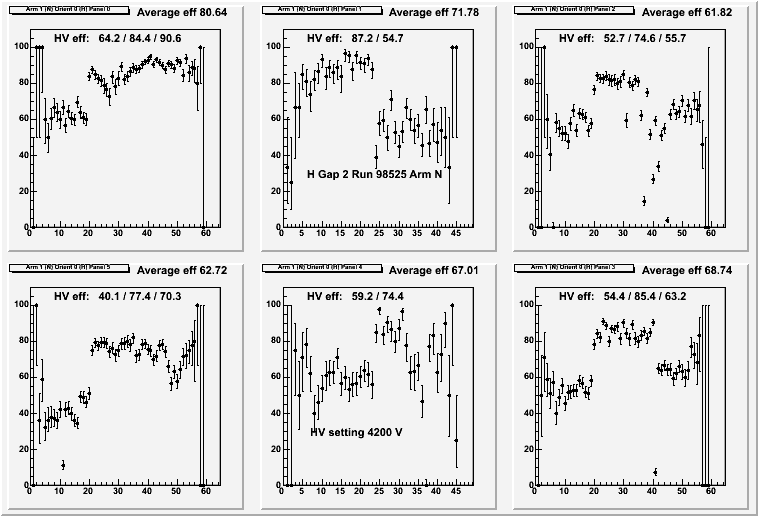

98525	1	2	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

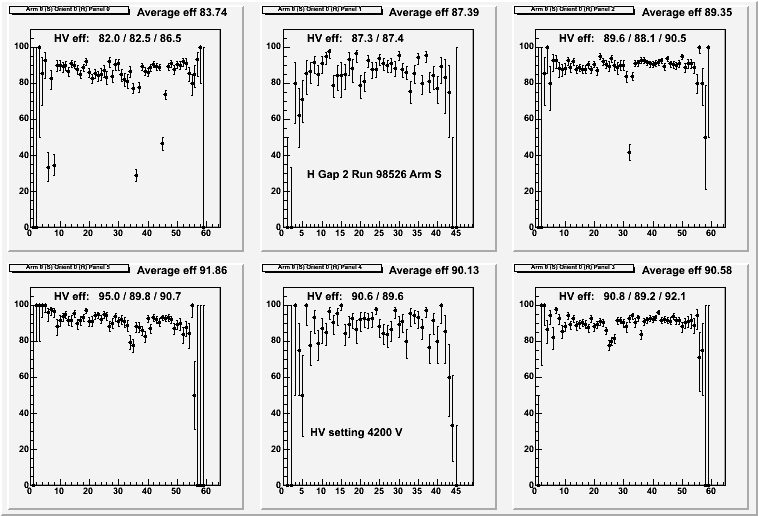

98526	0	2	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

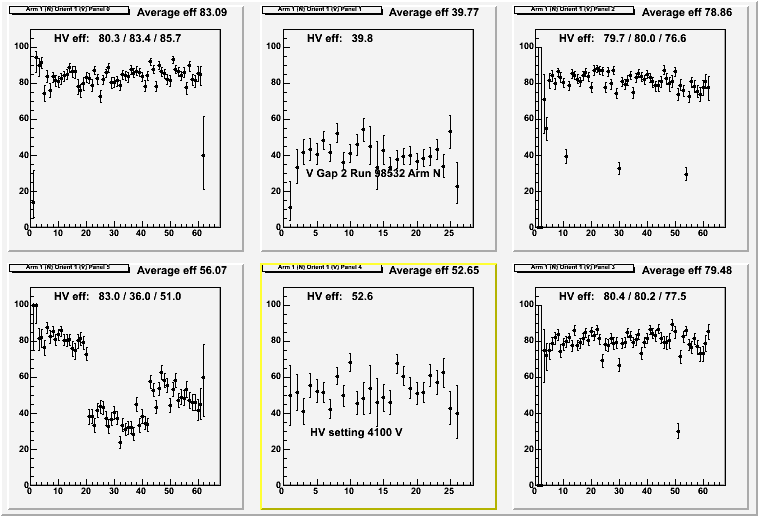

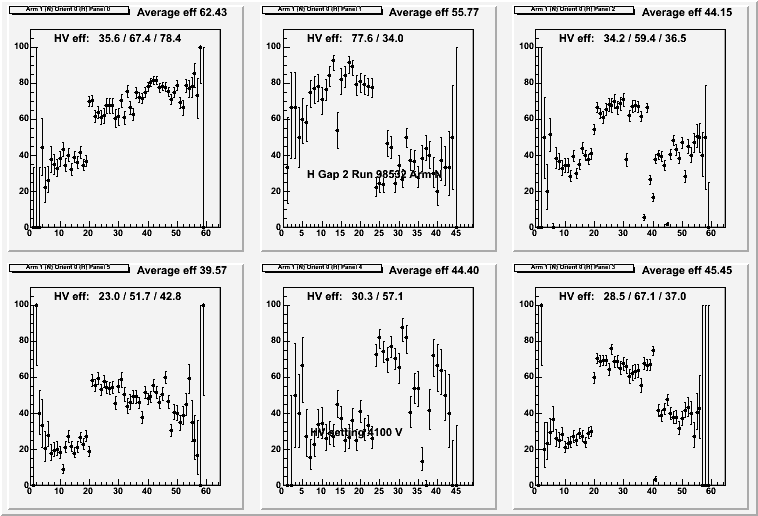

98532	1	2	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

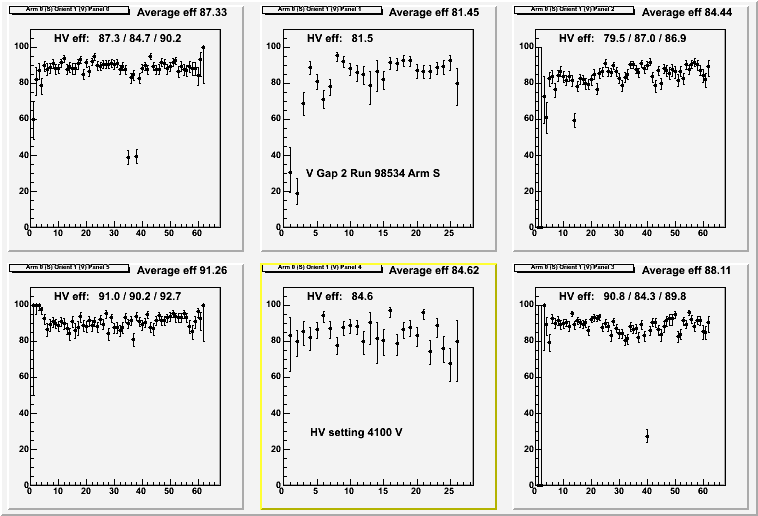

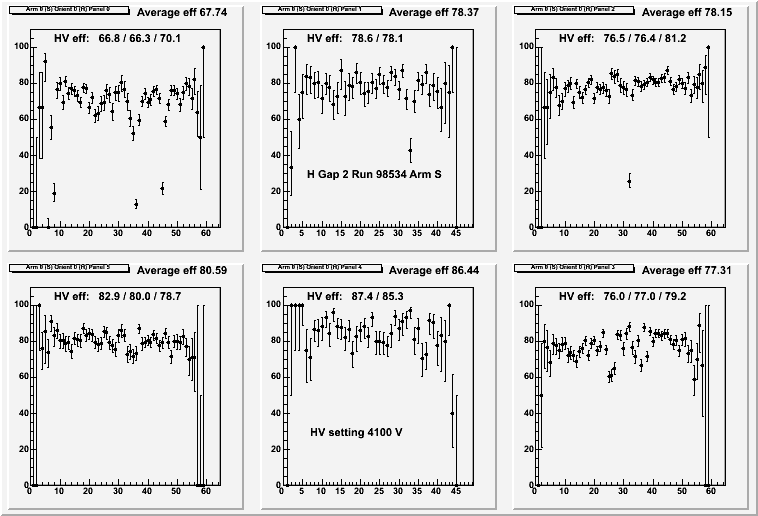

98534	0	2	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

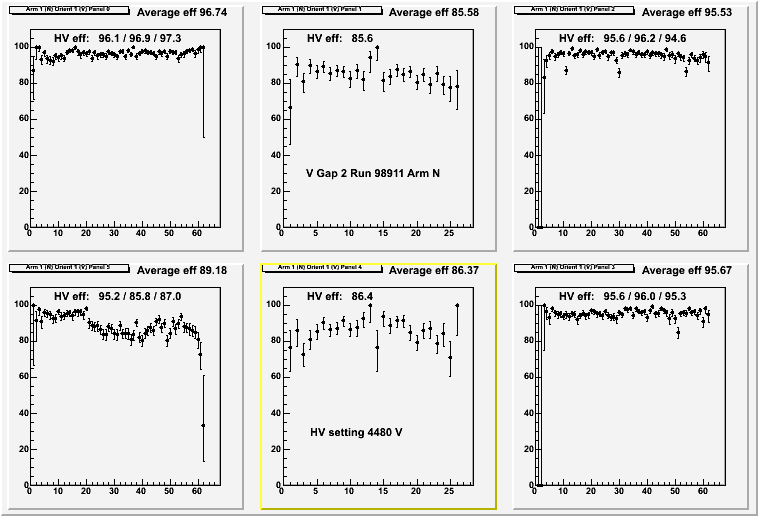

98911	1	2	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

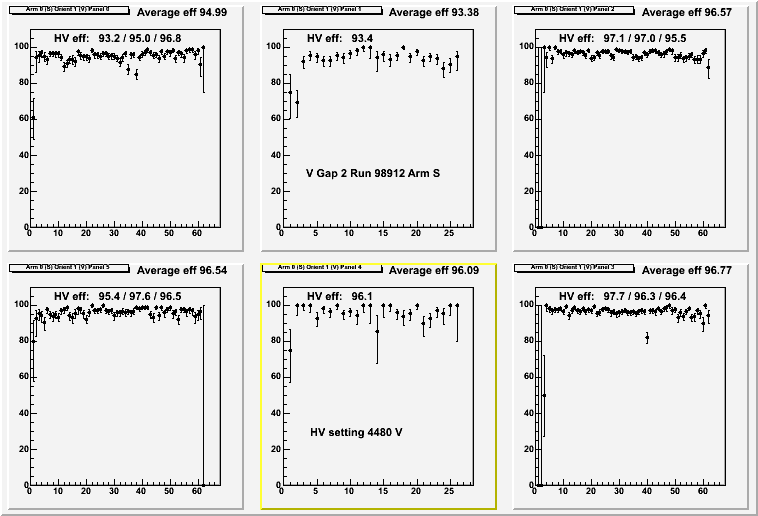

98912	0	2	4480	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

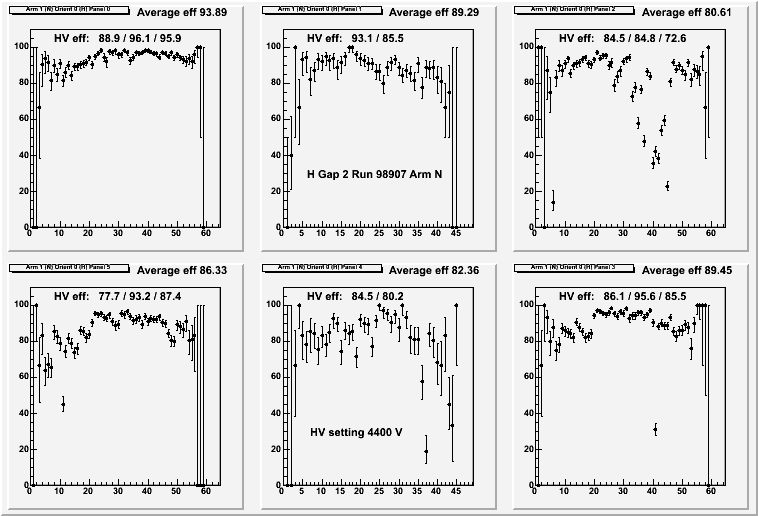

98907	1	2	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98910	0	2	4400	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

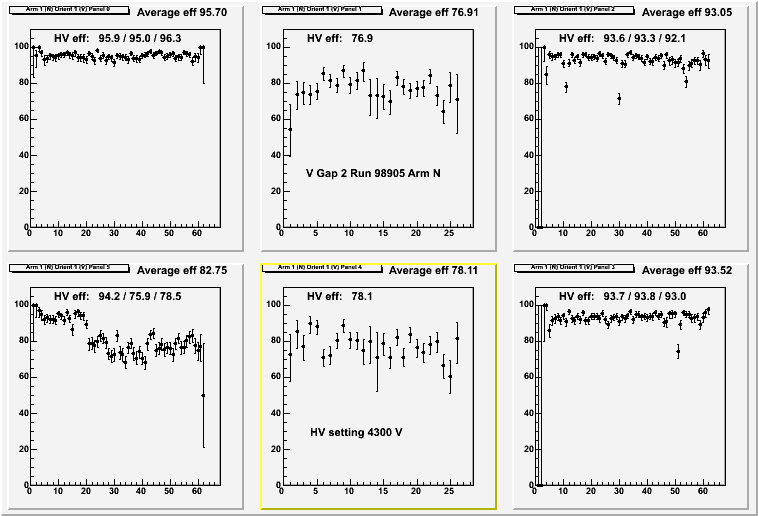

98905	1	2	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

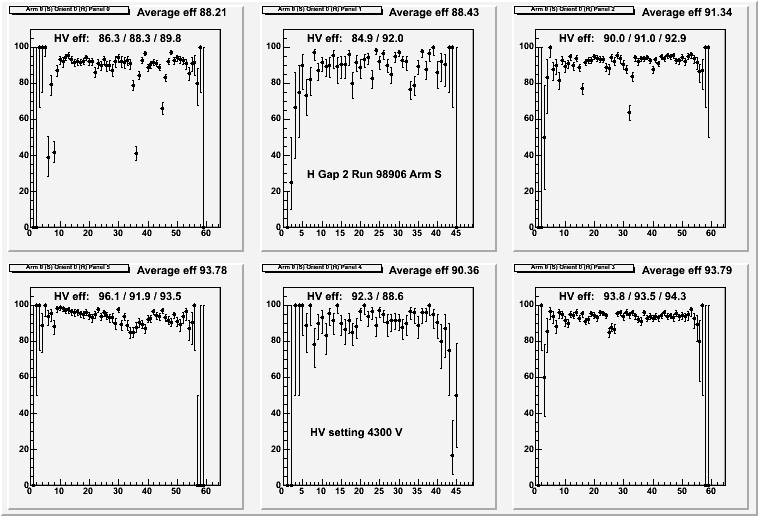

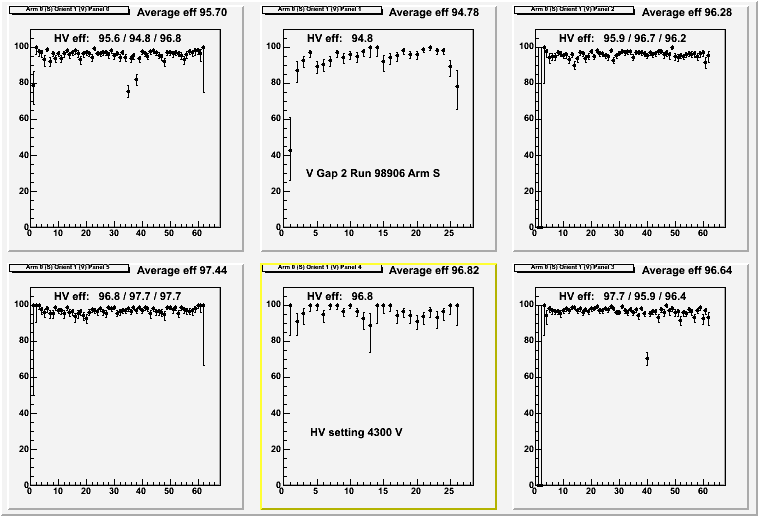

98906	0	2	4300	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

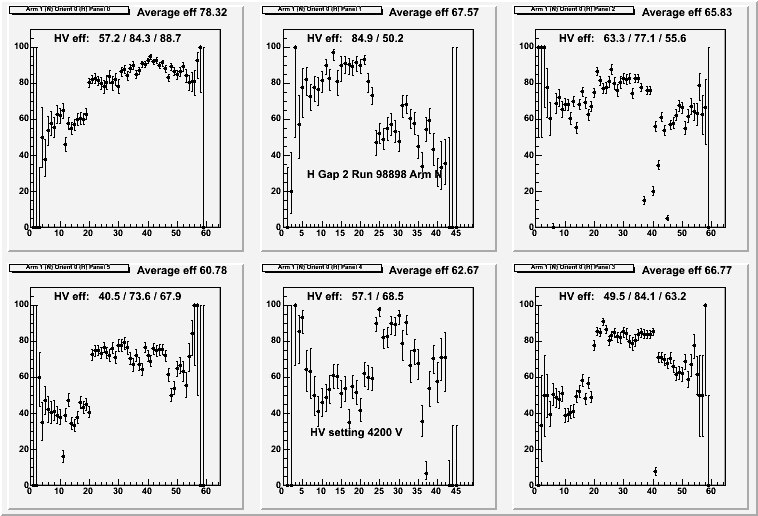

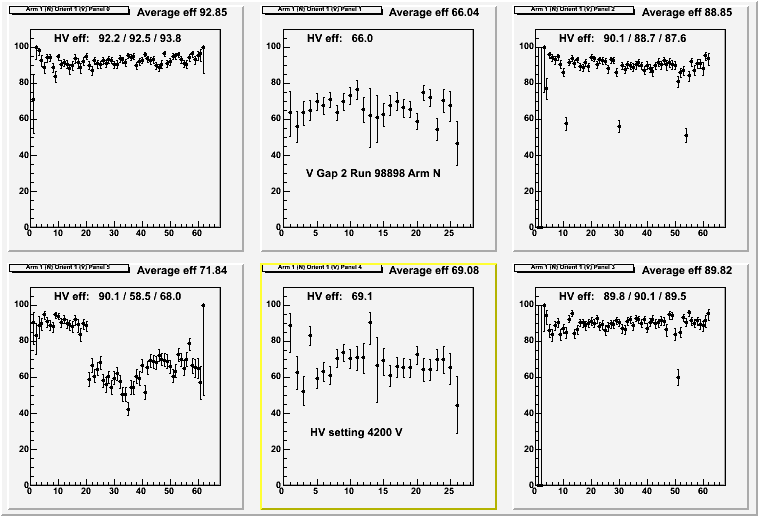

98898	1	2	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

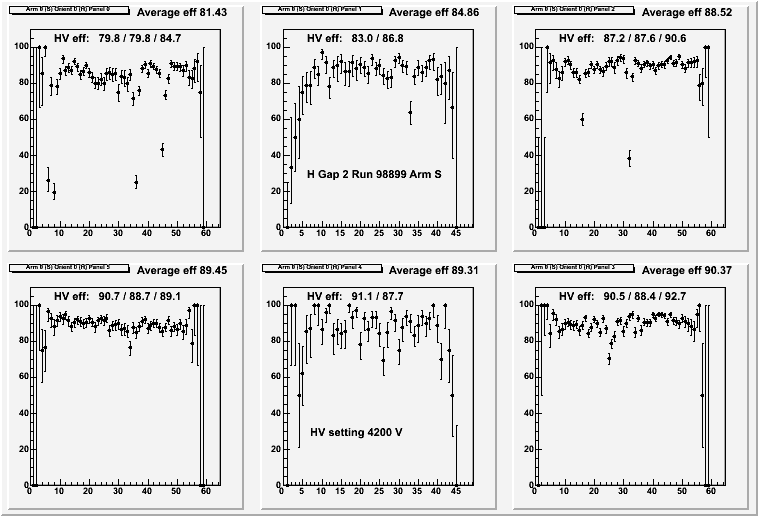

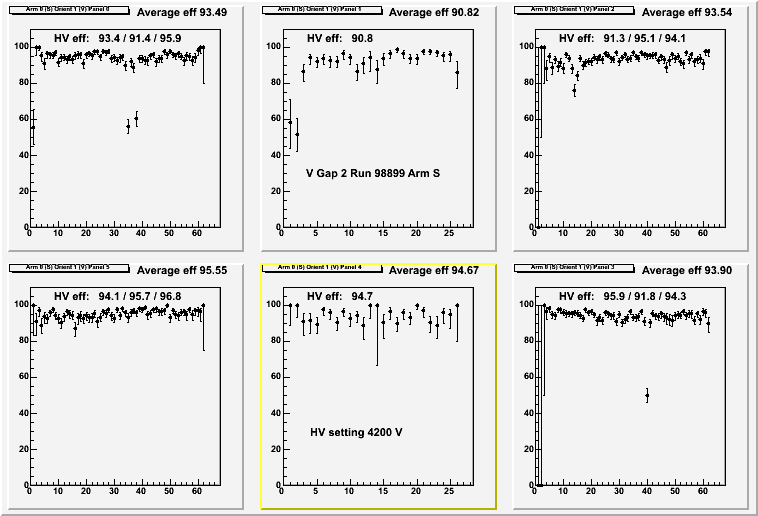

98899	0	2	4200	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

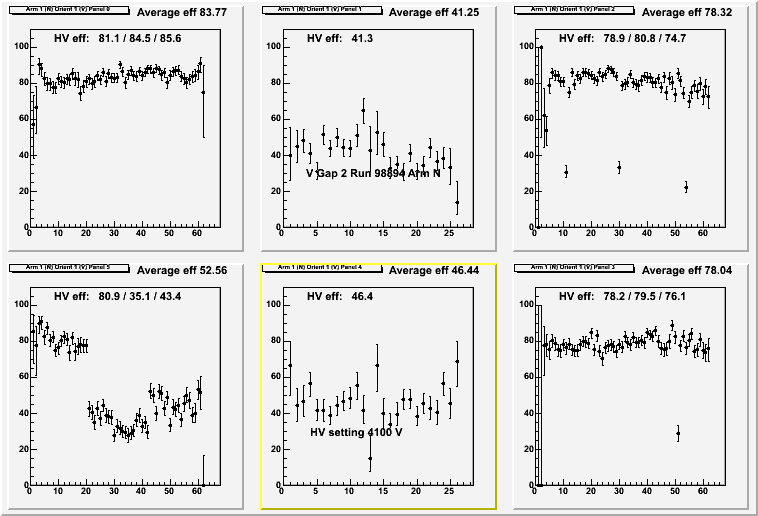

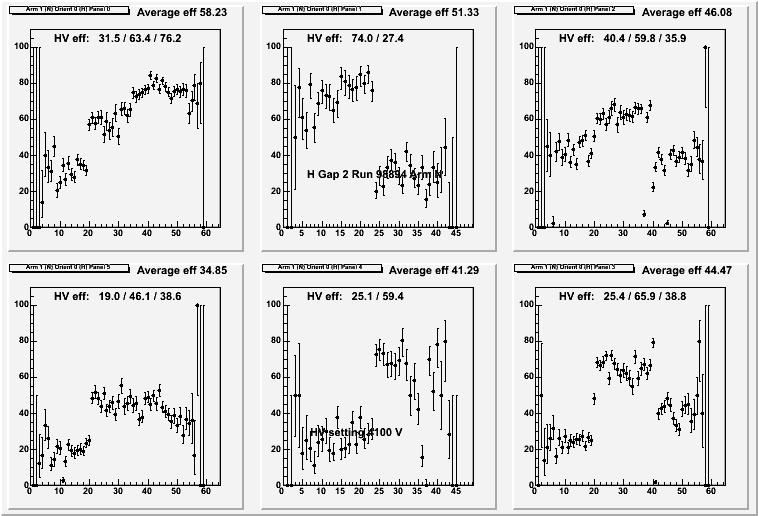

98894	1	2	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert
98895	0	2	4100	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

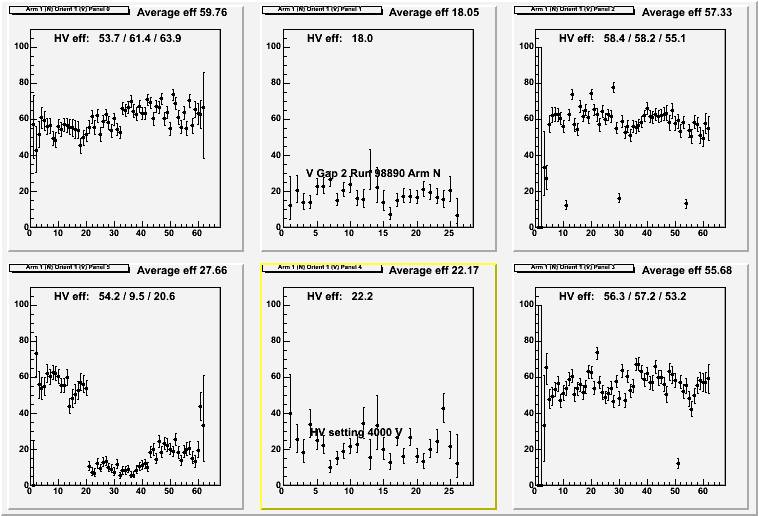

98890	1	2	4000	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

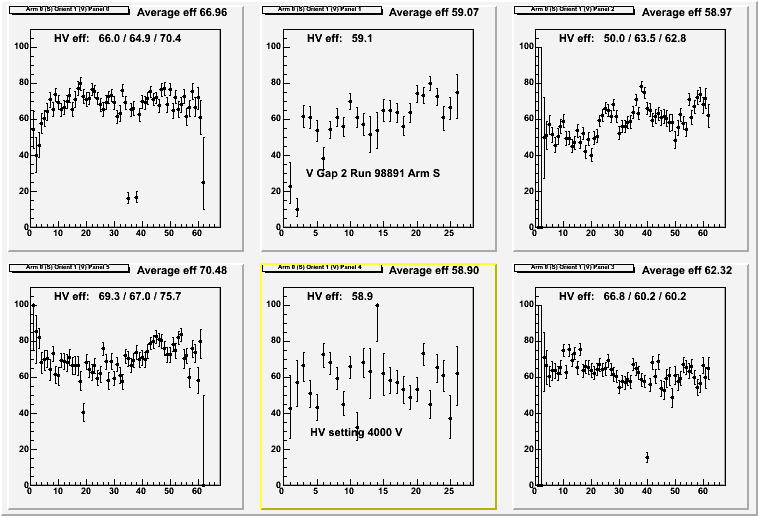

98891	0	2	4000	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

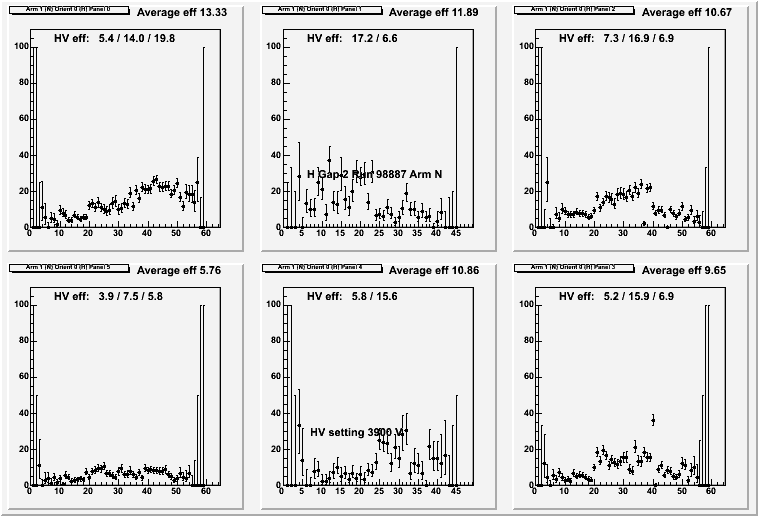

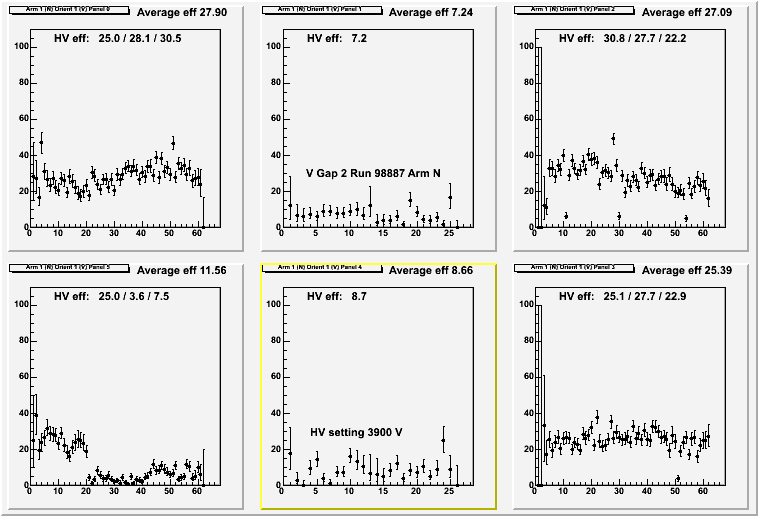

98887	1	2	3900	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

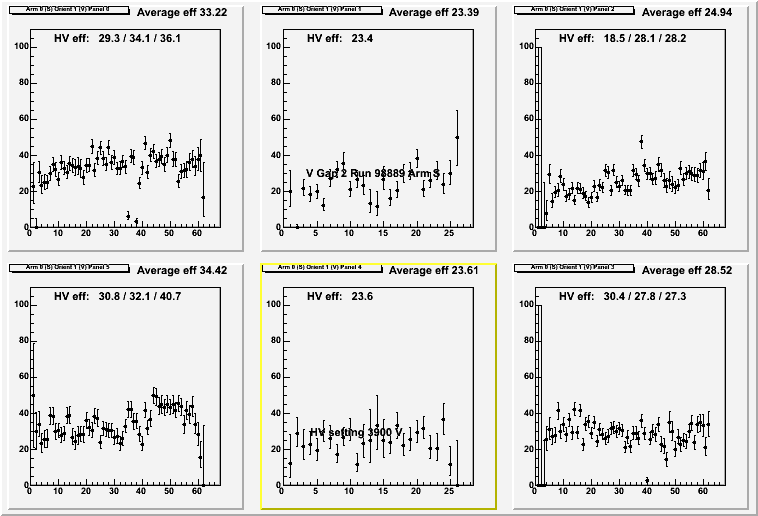

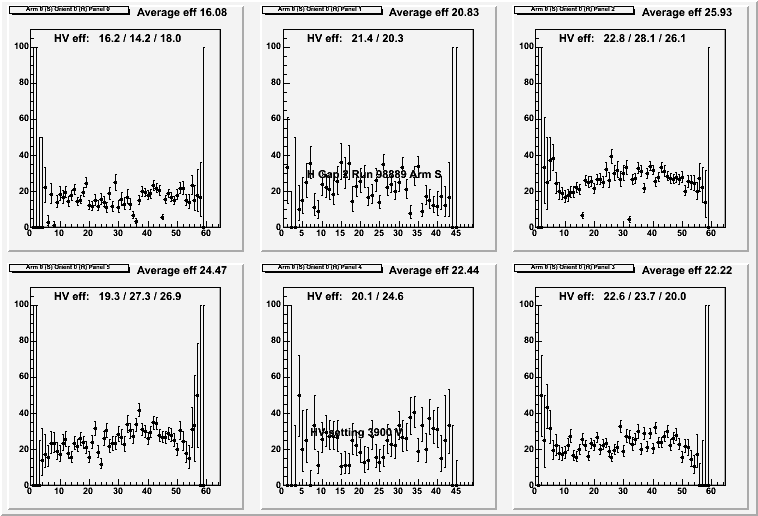

98889	0	2	3900	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

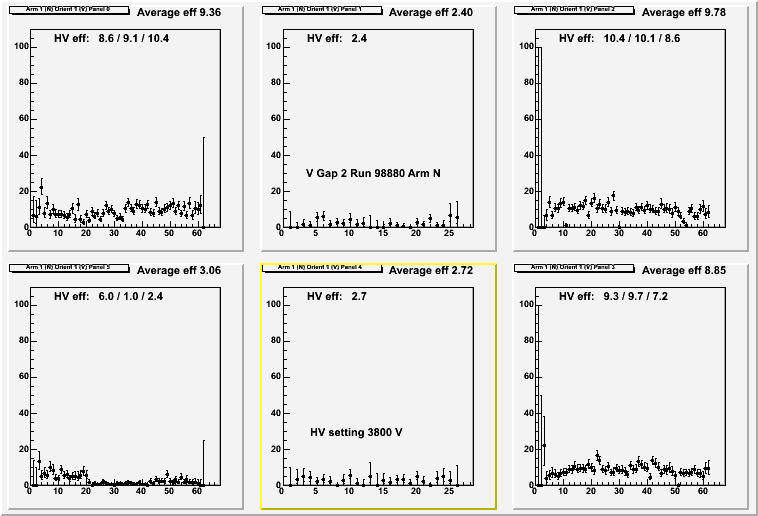

98880	1	2	3800	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

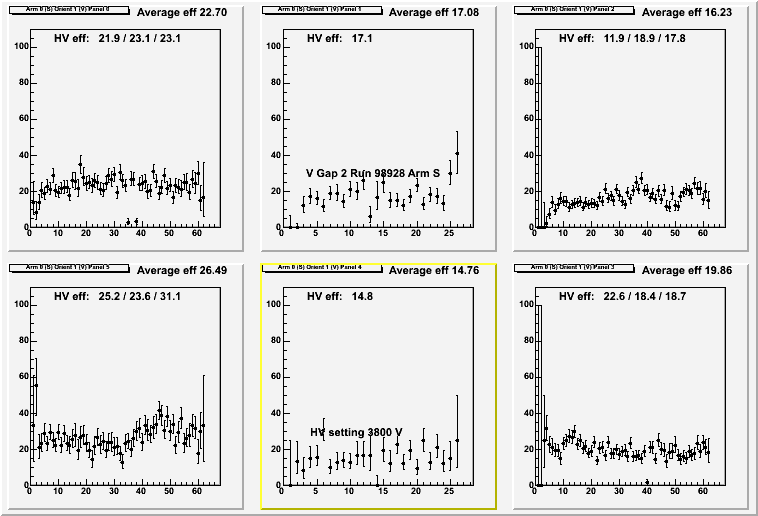

98882	0	2	3800	Even && Odd	4400	90	90	Horiz, Vert	Horiz, Vert

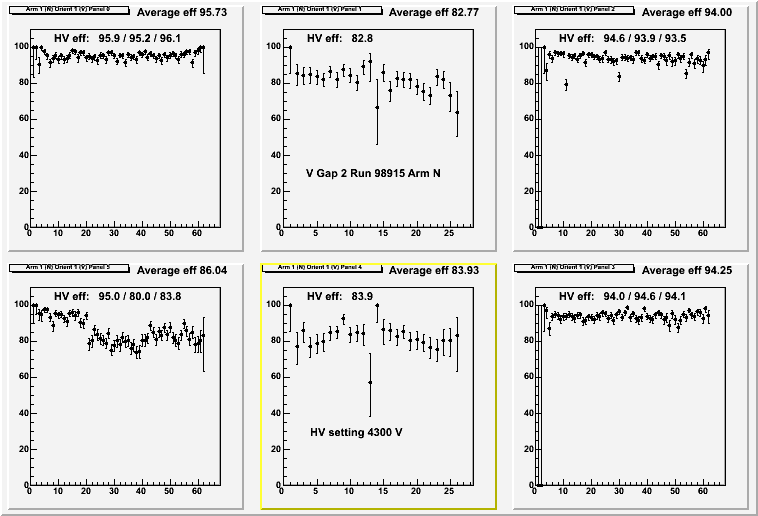

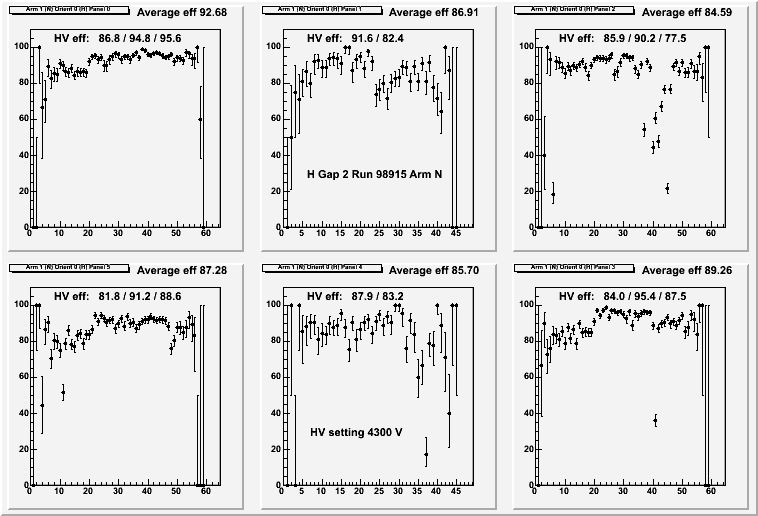

98915	1	2	4300	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

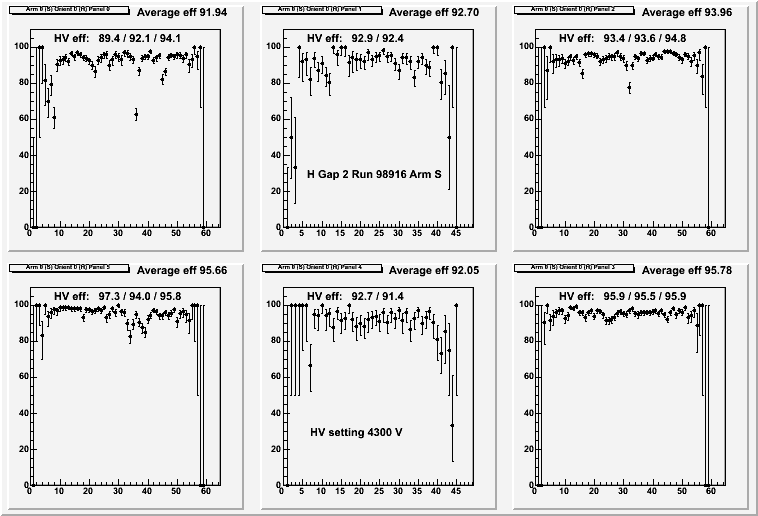

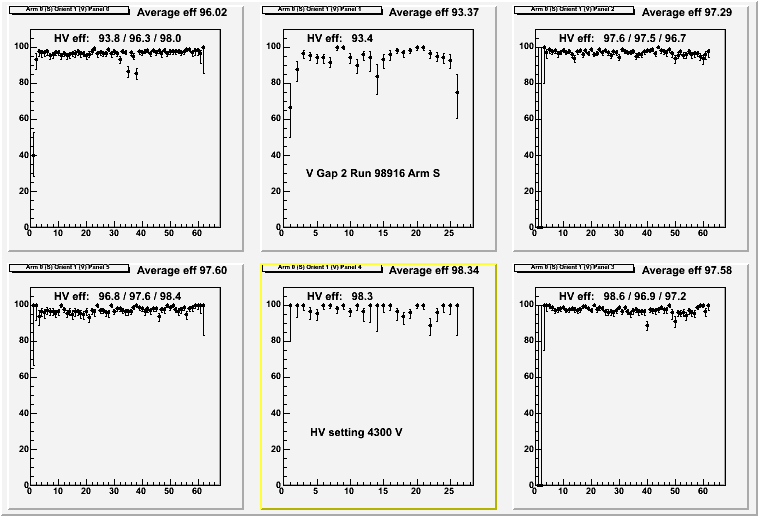

98916	0	2	4300	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

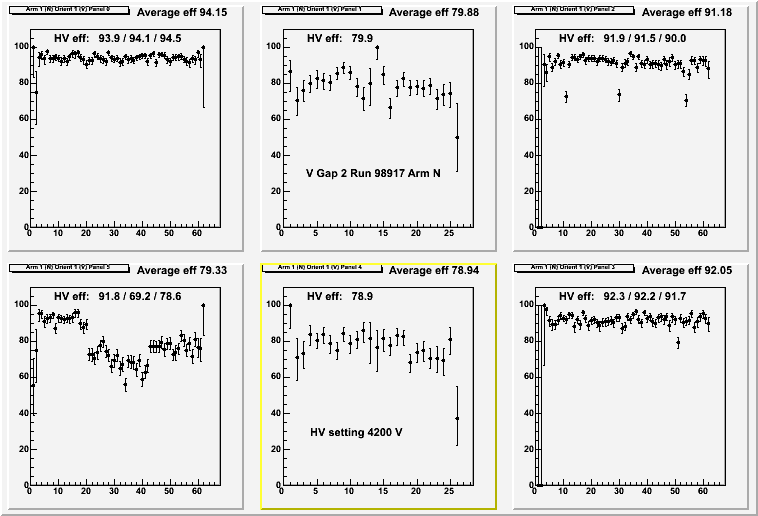

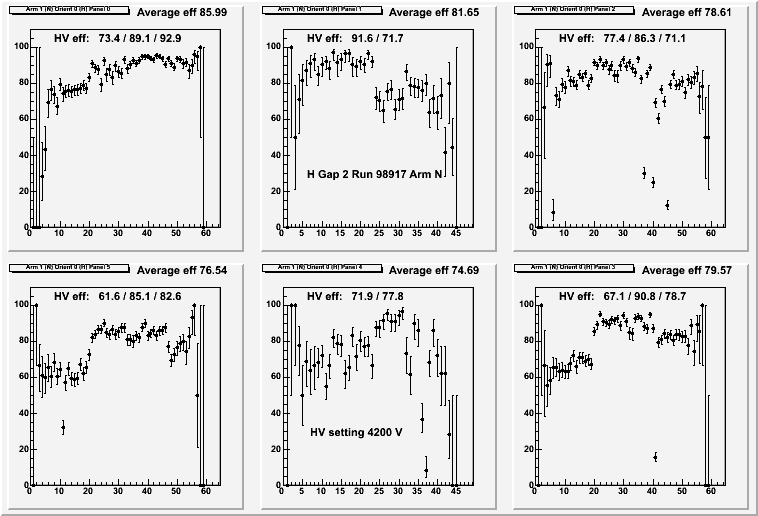

98917	1	2	4200	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

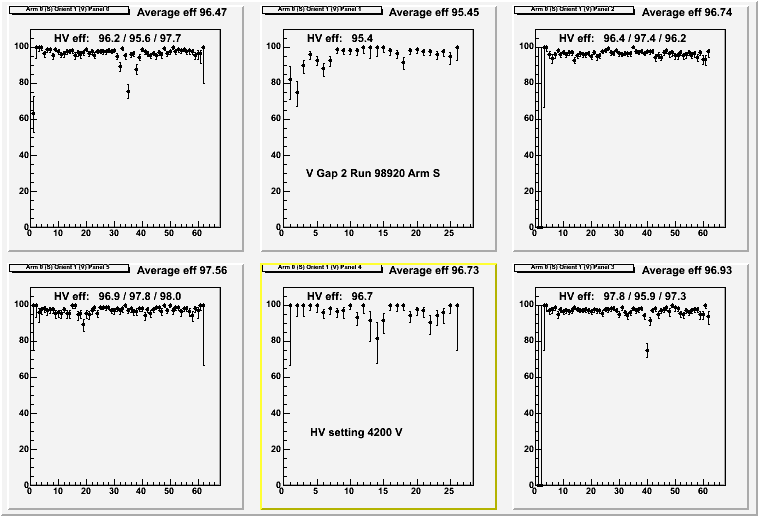

98920	0	2	4200	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

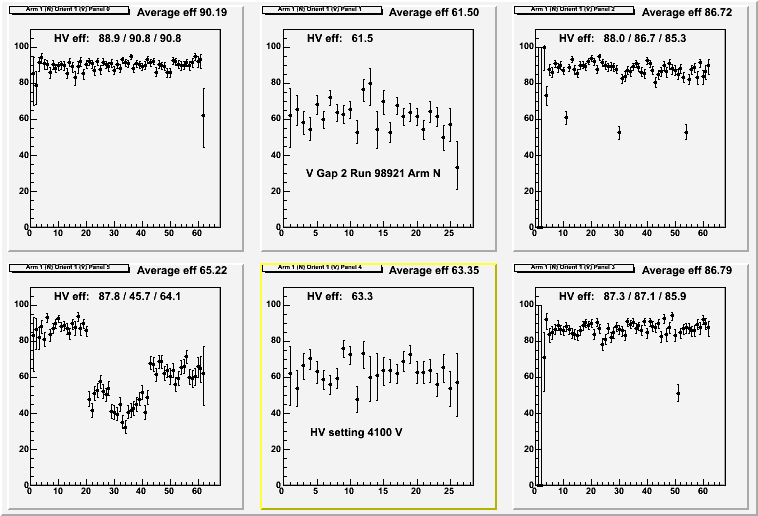

98921	1	2	4100	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert
98922	0	2	4100	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

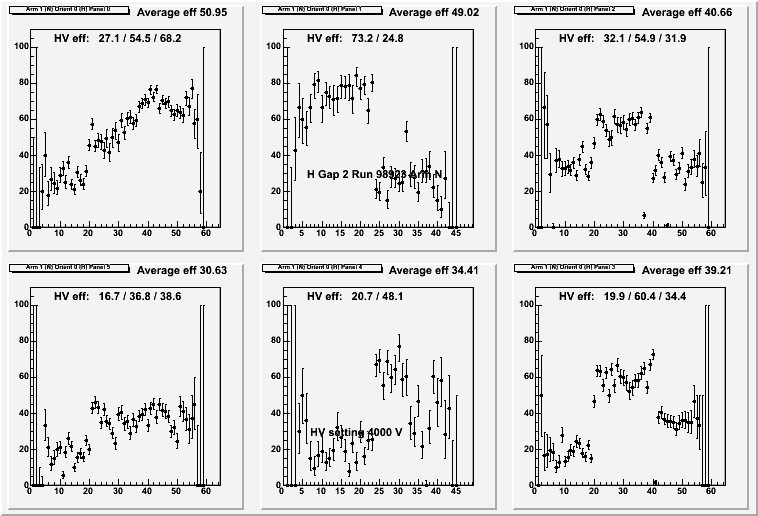

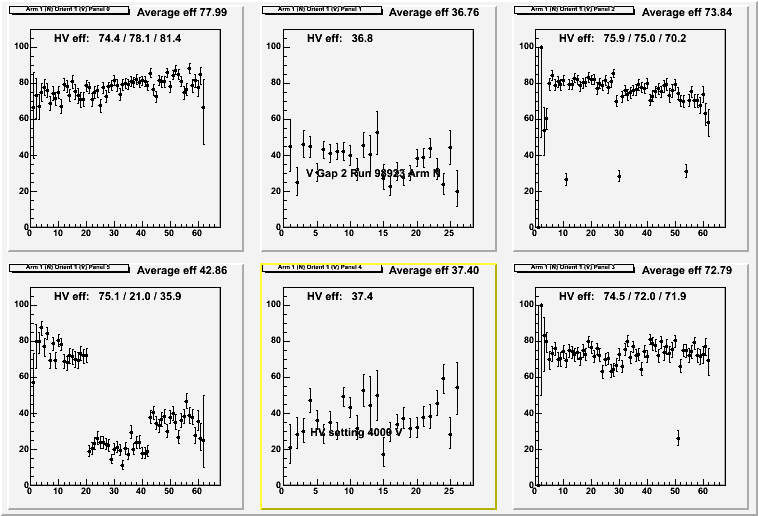

98923	1	2	4000	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

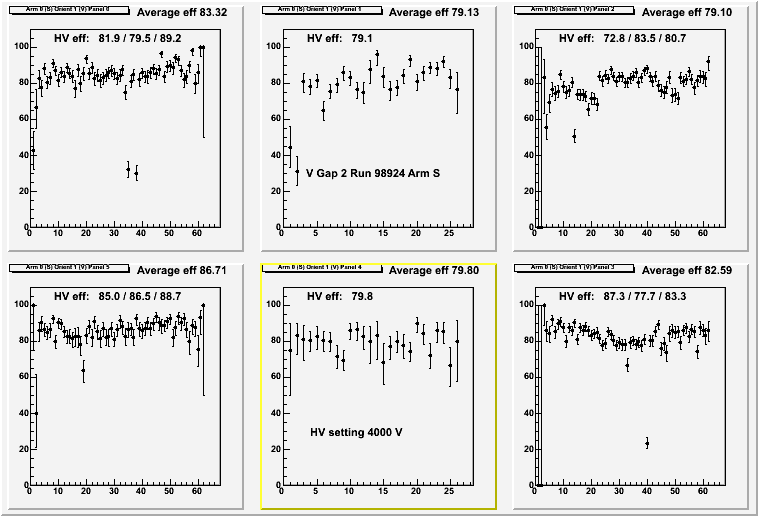

98924	0	2	4000	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

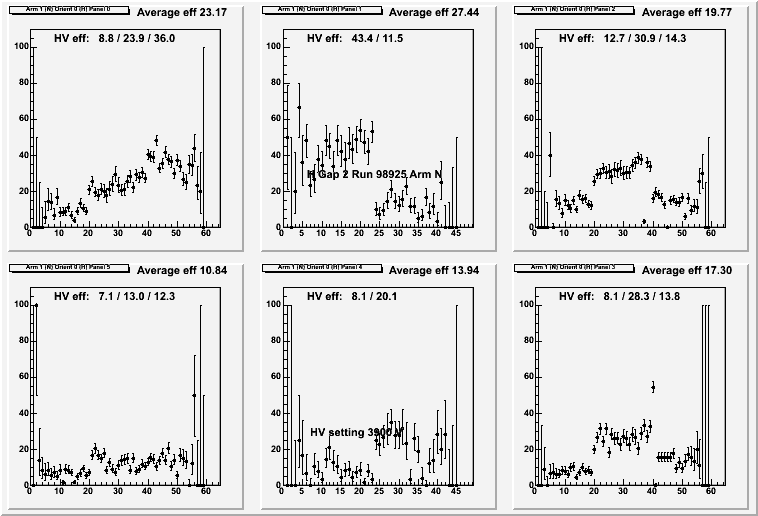

98925	1	2	3900	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

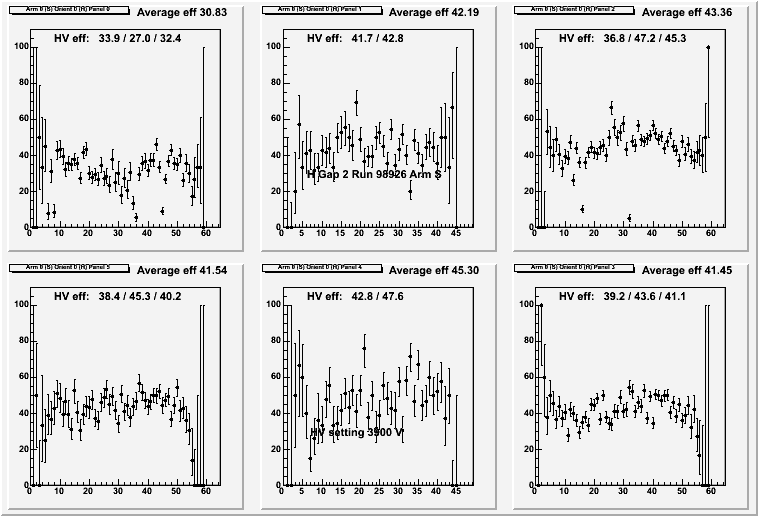

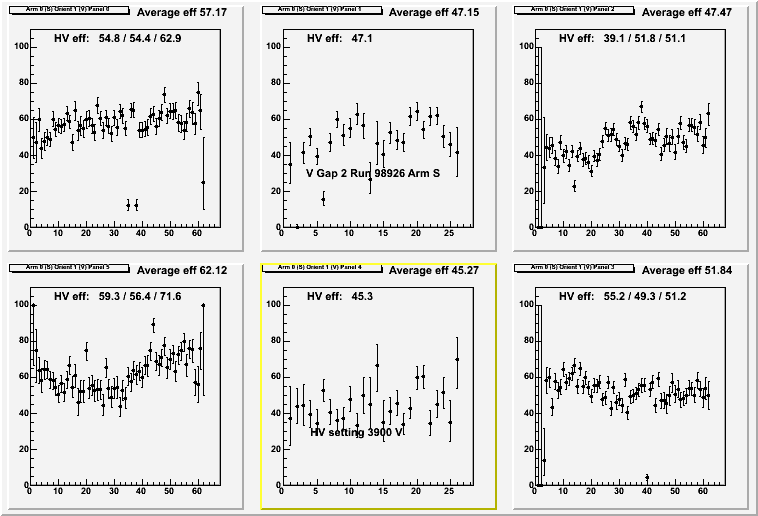

98926	0	2	3900	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

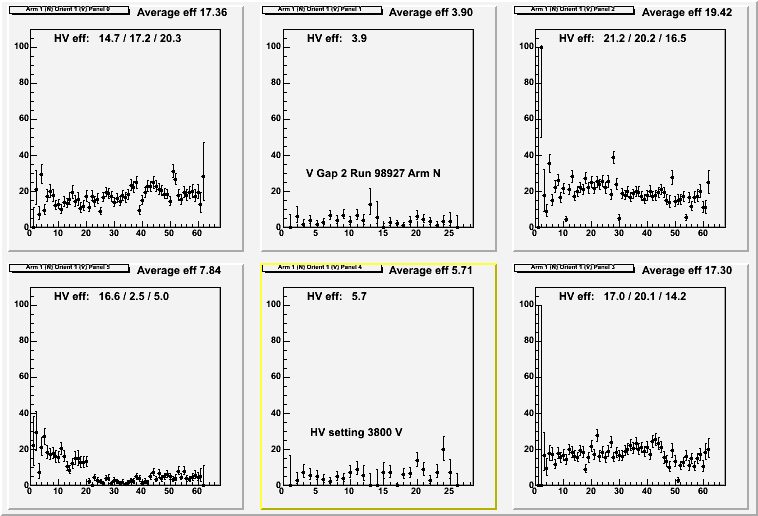

98927	1	2	3800	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert
98928	0	2	3800	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

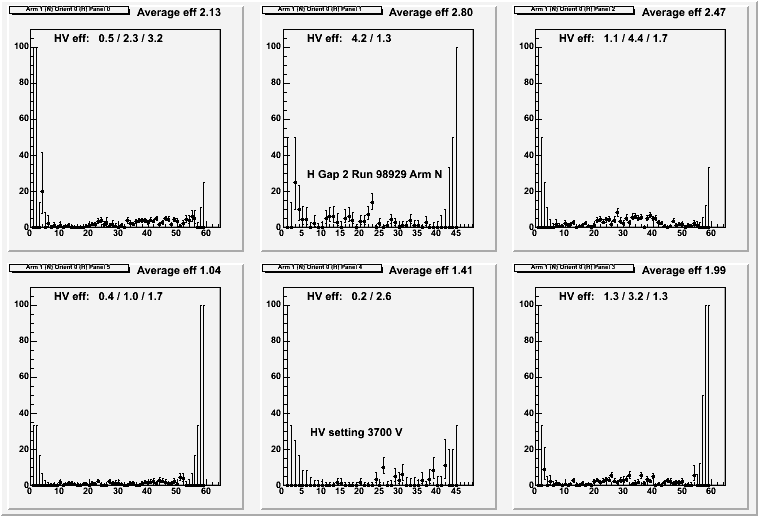

98929	1	2	3700	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

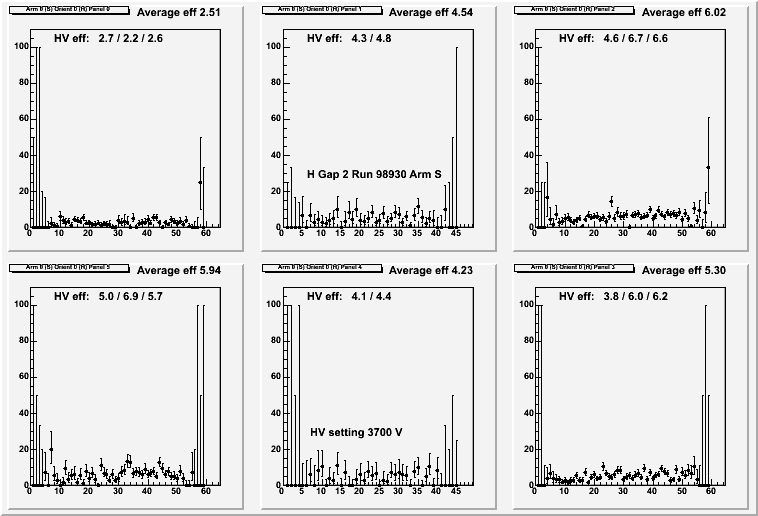

98930	0	2	3700	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

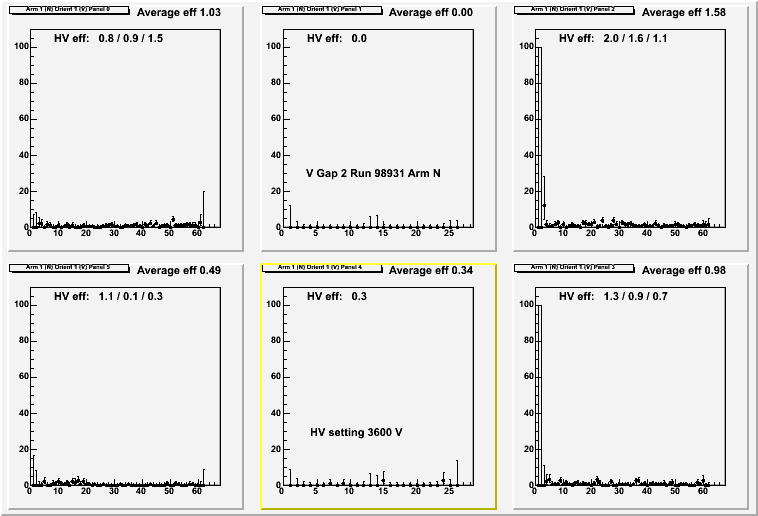

98931	1	2	3600	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

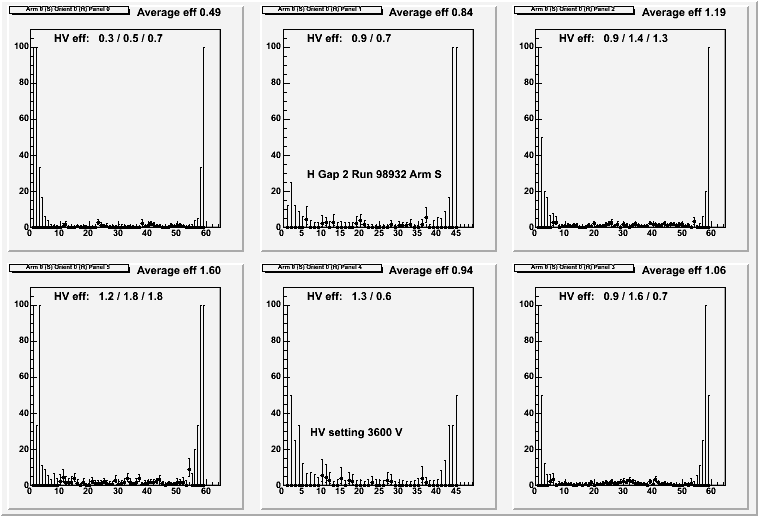

98932	0	2	3600	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

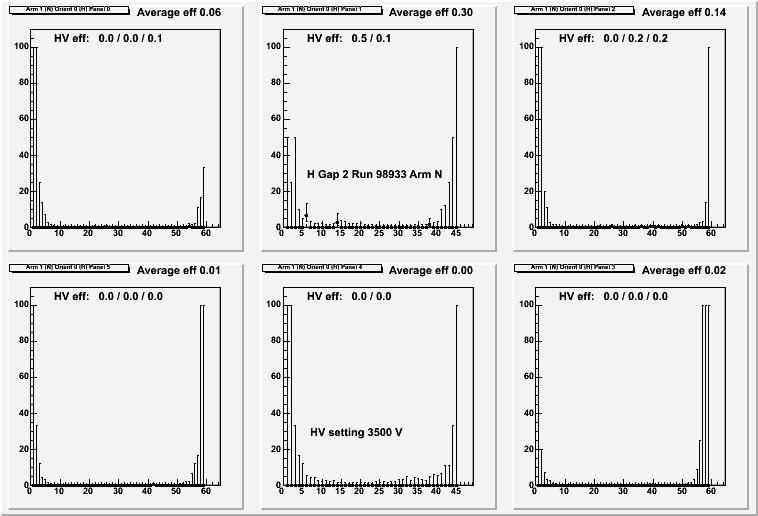

98933	1	2	3500	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert

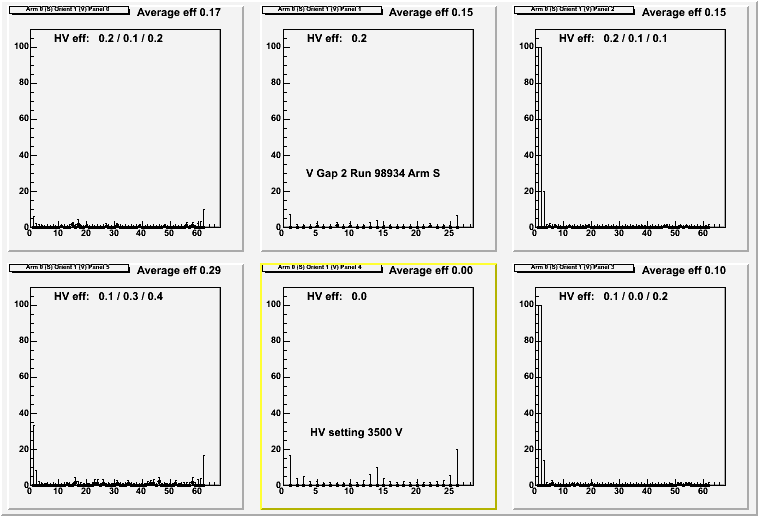

98934	0	2	3500	Even && Odd	4400	60	60	Horiz, Vert	Horiz, Vert
98945	1	2	4480	Odd	4480	60	60		Horiz, Vert
98946	0	2	4480	Odd	4480	60	60		Horiz, Vert
98947	1	2	4480	Even	4480	60	60		Horiz, Vert
98948	0	2	4480	Even	4480	60	60		Horiz, Vert

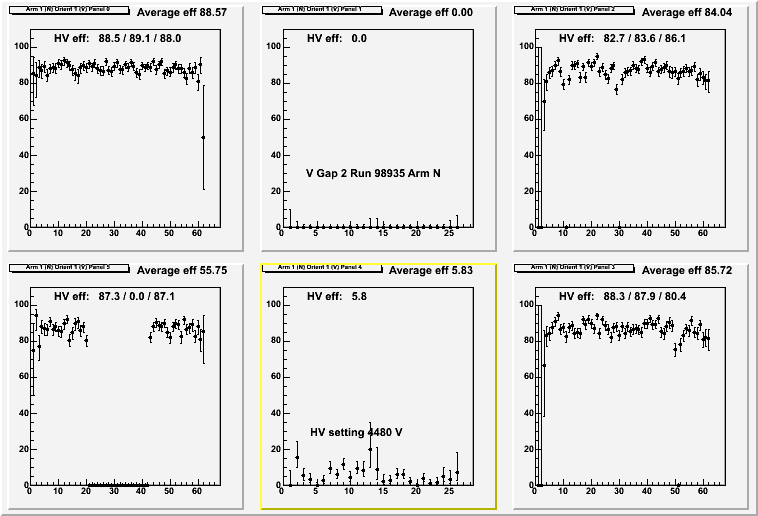

98935	1	2	4480	Even	4400	60	60	Horiz, Vert	Horiz, Vert

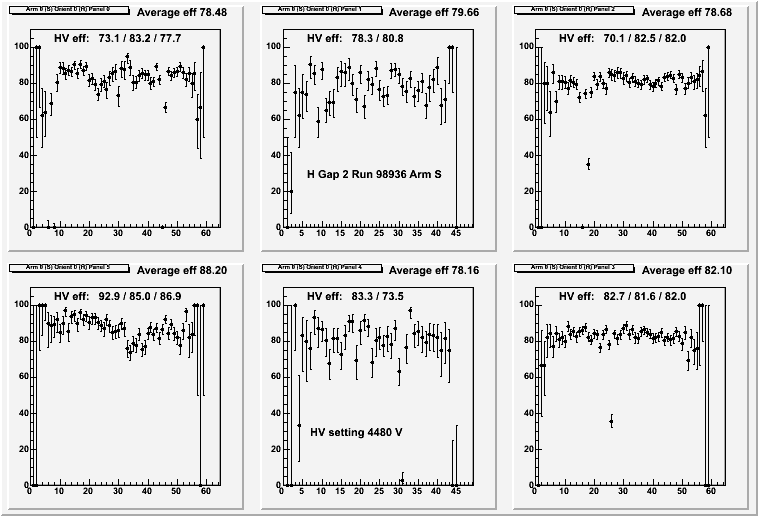

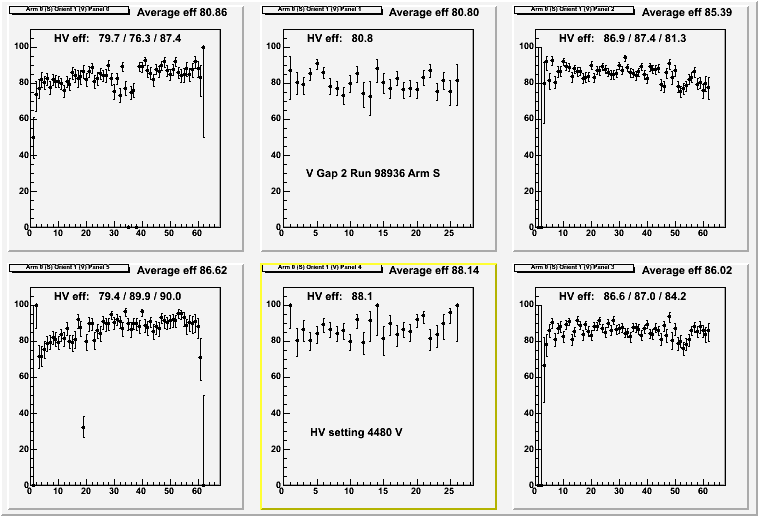

98936	0	2	4480	Even	4400	60	60	Horiz, Vert	Horiz, Vert

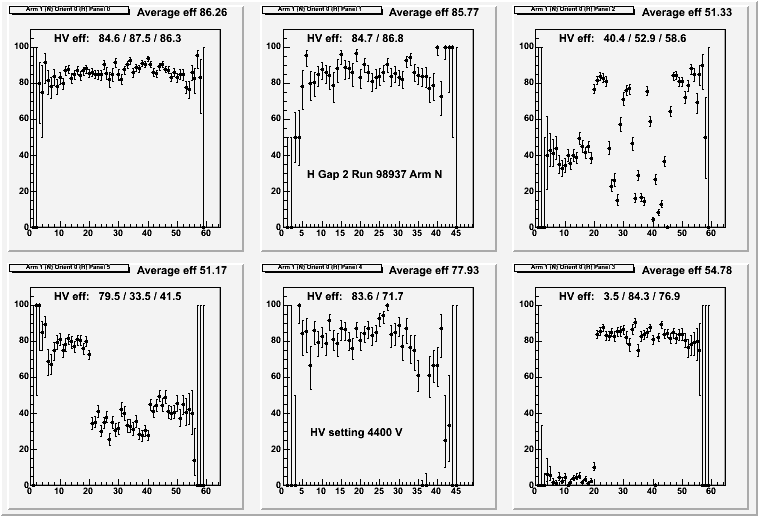

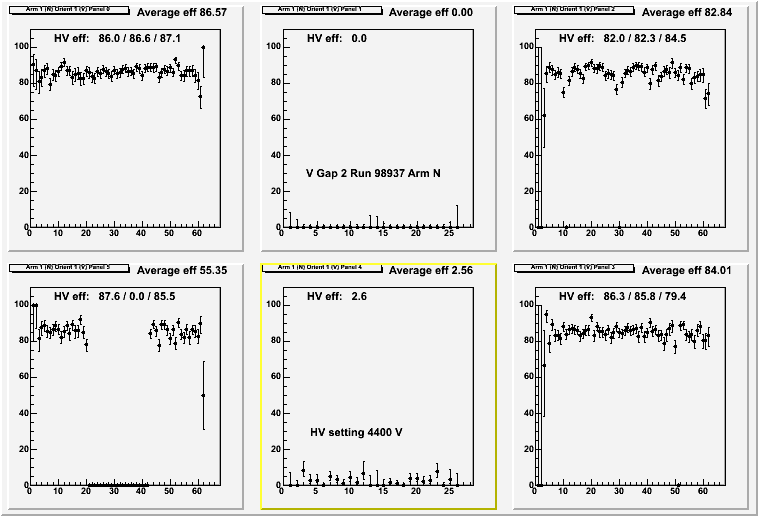

98937	1	2	4400	Even	4400	60	60	Horiz, Vert	Horiz, Vert

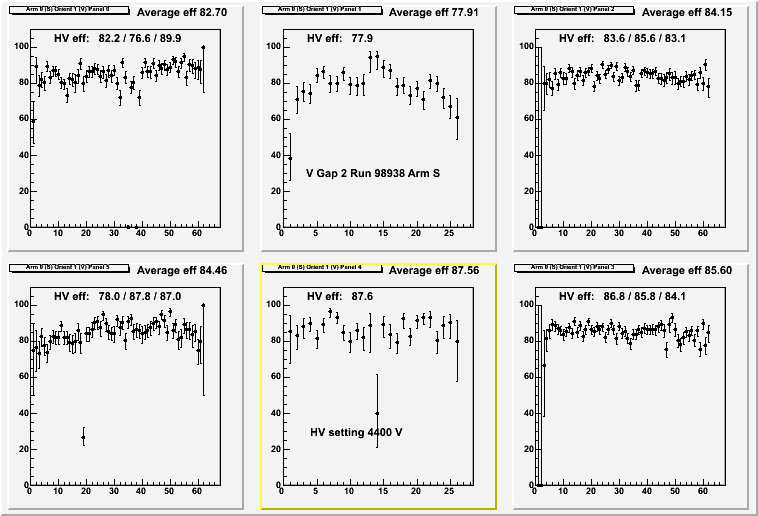

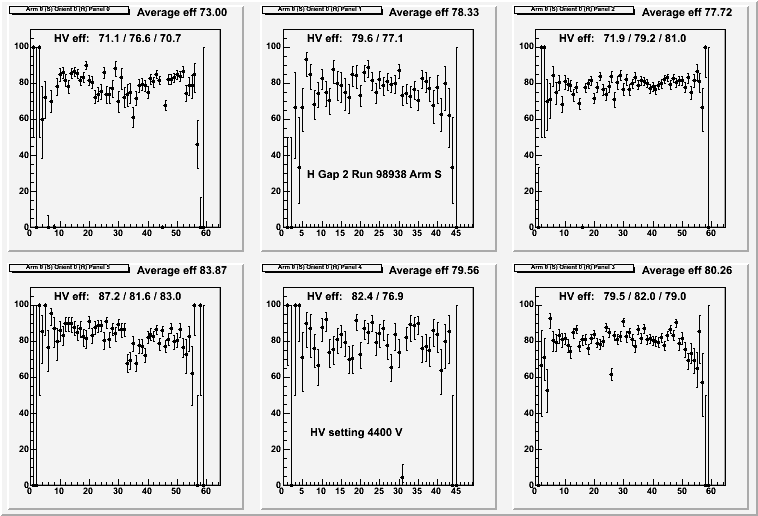

98938	0	2	4400	Even	4400	60	60	Horiz, Vert	Horiz, Vert

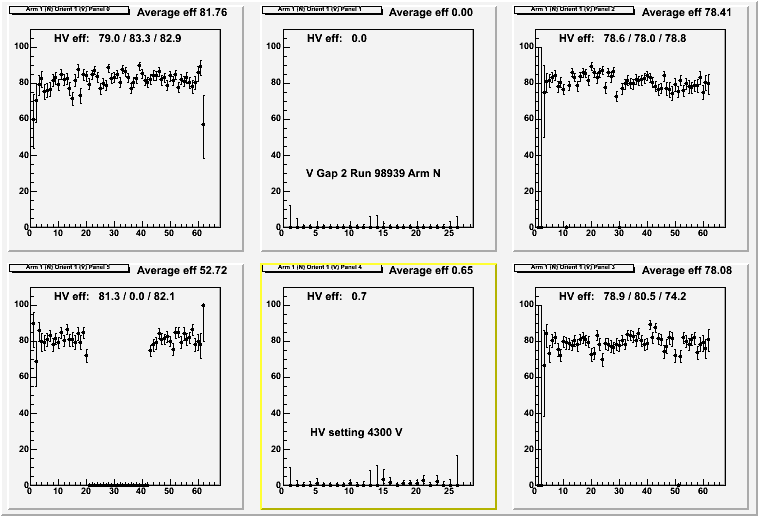

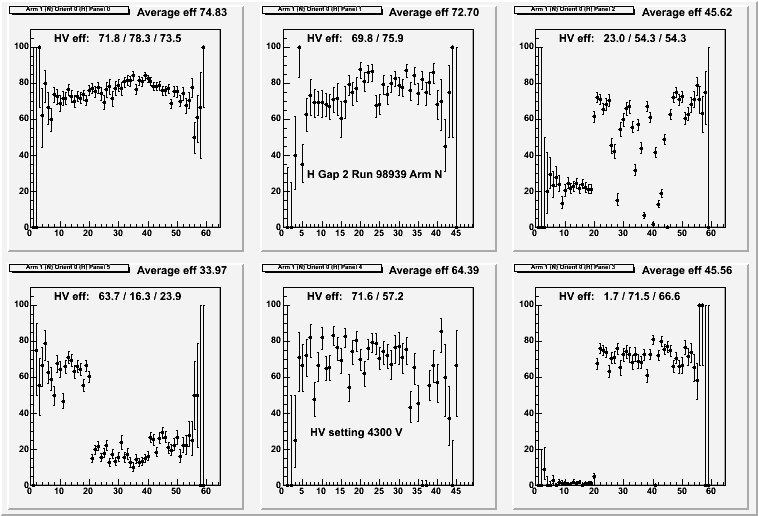

98939	1	2	4300	Even	4400	60	60	Horiz, Vert	Horiz, Vert

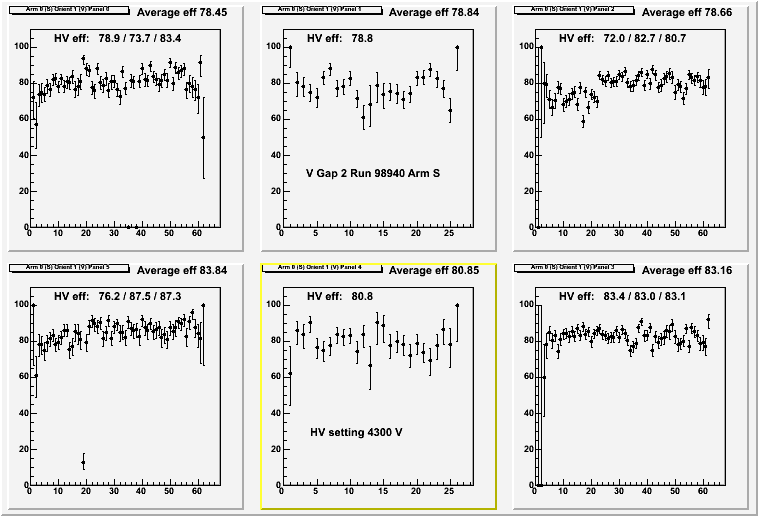

98940	0	2	4300	Even	4400	60	60	Horiz, Vert	Horiz, Vert

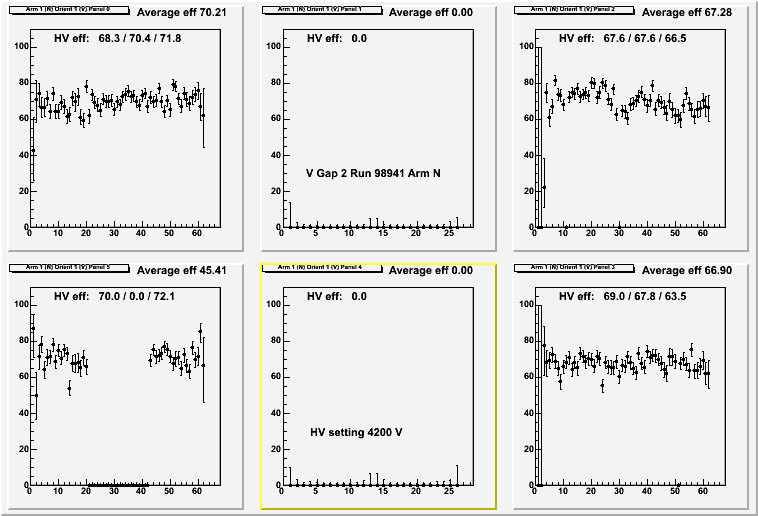

98941	1	2	4200	Even	4400	60	60	Horiz, Vert	Horiz, Vert

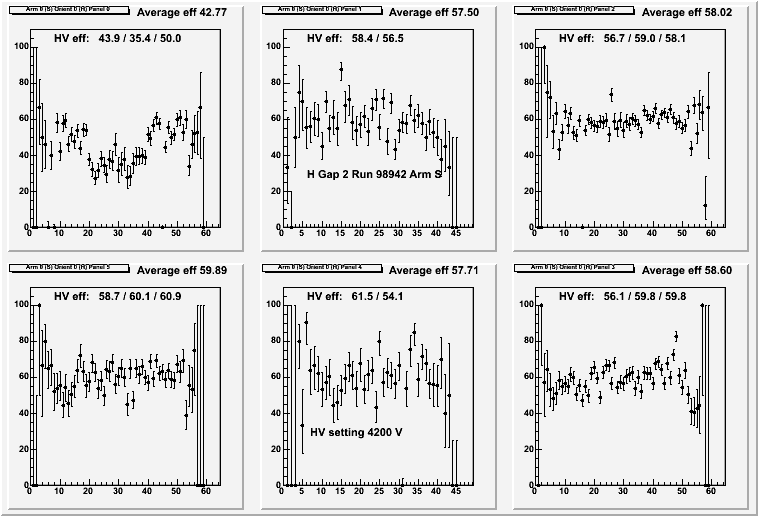

98942	0	2	4200	Even	4400	60	60	Horiz, Vert	Horiz, Vert
98943	1	2	4100	Even	4400	60	60	Horiz, Vert	Horiz, Vert

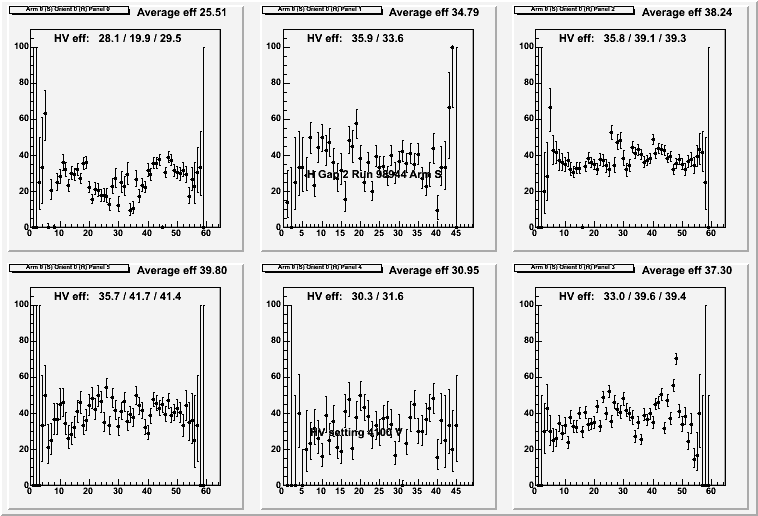

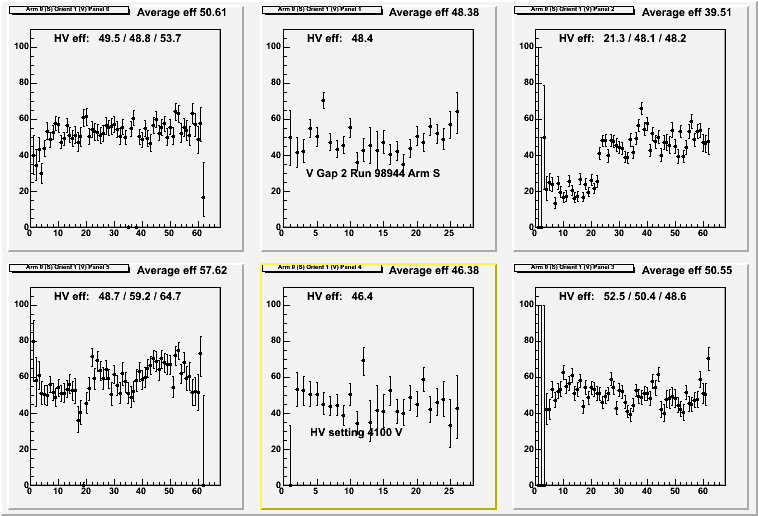

98944	0	2	4100	Even	4400	60	60	Horiz, Vert	Horiz, Vert
