On the poster was actually an easel on which a 5x scale model (fabricated by NIS) was mounted, consisting of a foamboard rectangle for the ceramic substrate, with the base metal printed on it and die placed in wells. Over the top of this were four transparent overlays, with the following patterns on it:

1. analog traces
2. power distribution
3. digital traces
4. ground planes
5. surface mounts

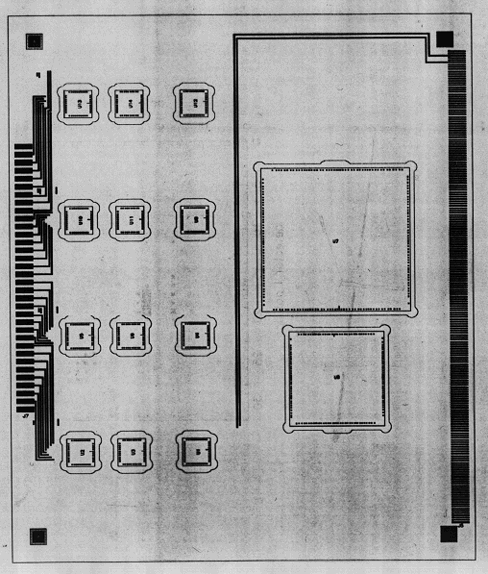

(This does not translate too well to HTML, so all I can offer here is a picture of the base, showing edge connections and die in wells)
