PHENIX Low Voltage Hardware

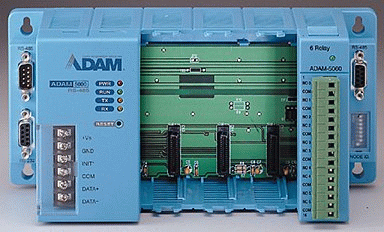

ADAM 5000


  • ADAM 5000 - Modules used for PHENIX

    Module - 5017: Analog Input - eight channels
    Monitor magnetic field by Hall probe measurment.

    Module - 5018: Thermocouple - seven channels
    Monitor temperature of racks.

    Module - 5051: Digital Input - sixteen channels
    Readback of crate status, smoke alarm status, etc.

    Module - 5056: Digitial Output - sixteen channels
    Set enable for low voltage.

    Module - 5060: Relay Output - six channels
    Cycle power on rack.

    Module - 5068: Relay Output - eight channels
    Enuciator interface.

  • ADAM 4000

    Single module analogous to the ADAM 5000.
    For example the 4060 is a six channel relay.

  • OPC Information

    Some OPC guidelines (in MS Word format) can be found here .

    Some information about the ADAM OPC server (in pdf format)
    can be found here .
