FPHX Prototype Testing Results
Back To Results Page

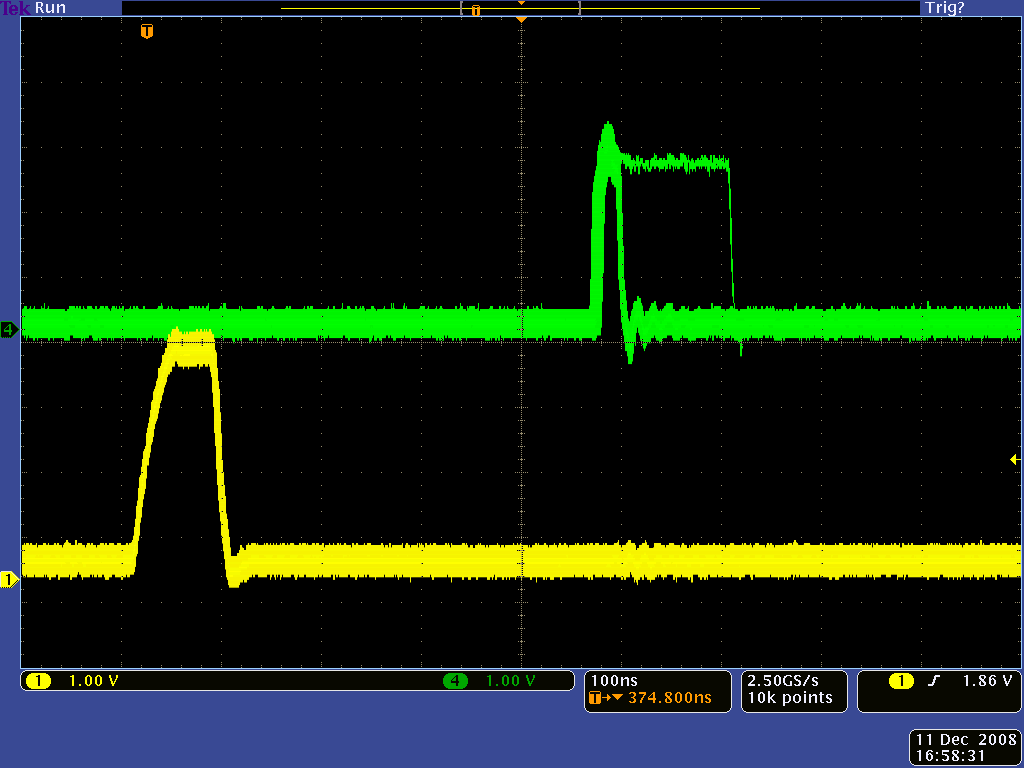

Figure 1 Pulser trigger is shown in yellow and "Got Hit" is shown in green. Four channels were unmasked and the chip was sent a uniform stream of pulses. Most Got Hit outputs occur within one clock-width in space, but occasionally a hit shows up which has a wide Got Hit signal.

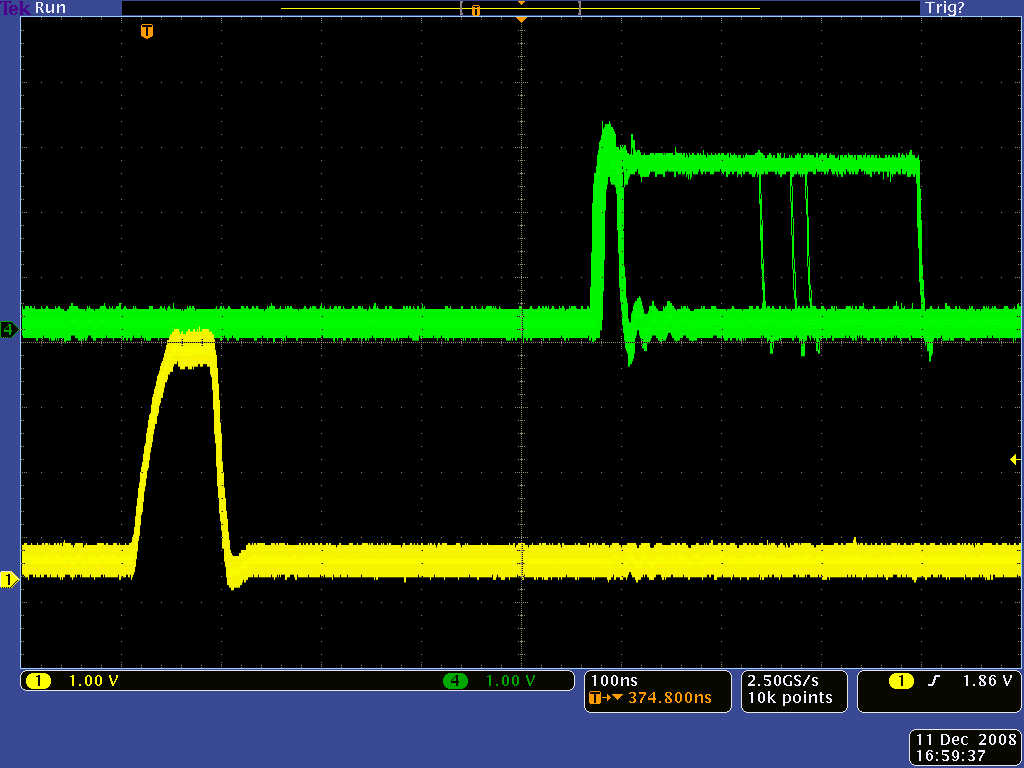

Figure 2 Same as Figure 1 except 8 channels were unmasked. The more channels that are unmasked, the more frequent the wide Got Hit pusles are, the wider it gets overall, and a variety of different width pulses start to show up.
